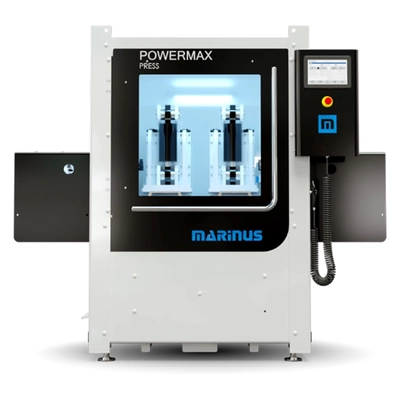

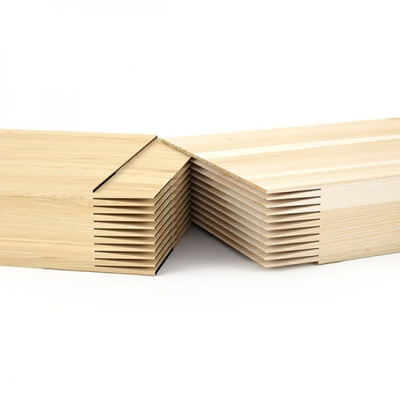

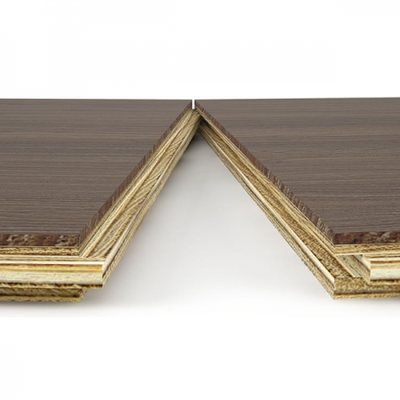

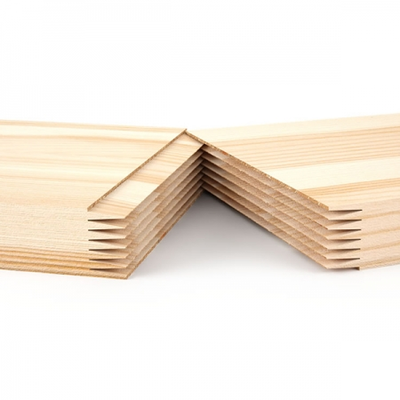

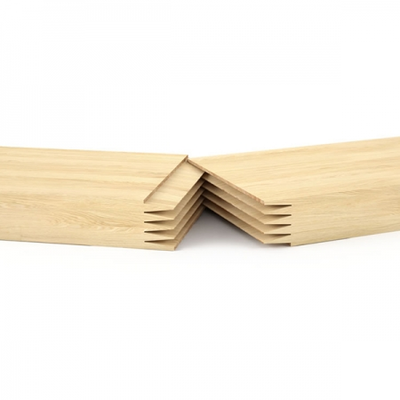

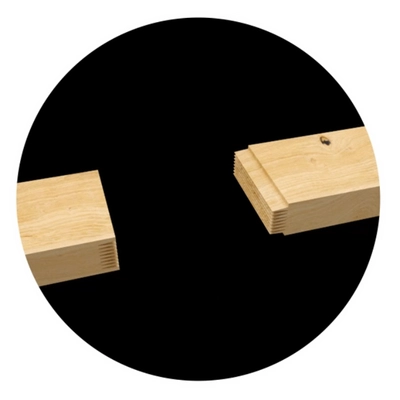

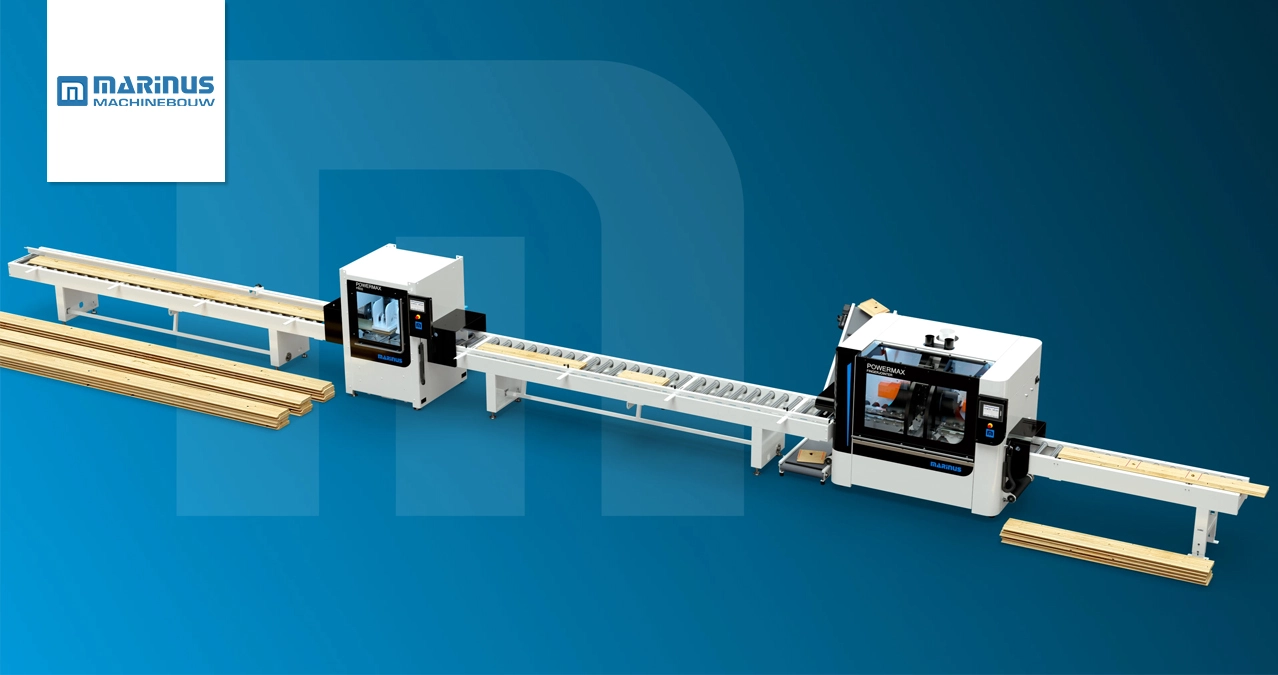

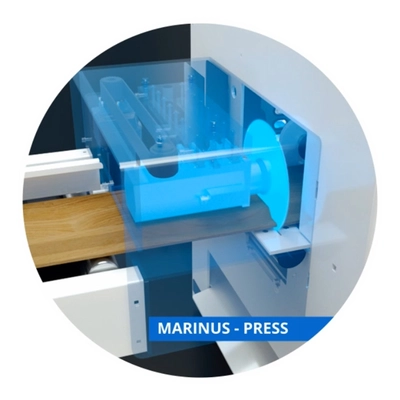

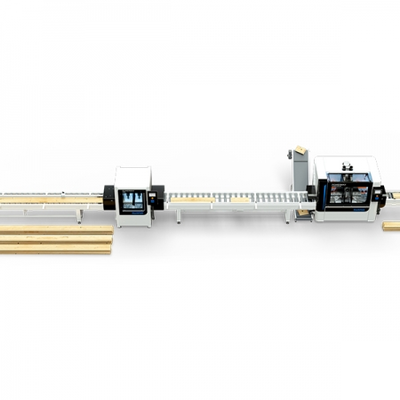

The unique finger jointing machine that creates a clean joint that does not require post-processing.The Marinus Powermax Finger Joint Line is a unique finger jointing machine. This compact production line profiles horizontally, applies adhesive, cuts out defects, presses and cuts to length. The unique process creates a clean joint that does not require post-processing.
480V 3PH
Lengths:
450 – 6000+ mm
Widths:
50 – 300 mm
Thicknesses:
8 – 50 mm
Capacity:
Up to 10 joints/min
Length modes:
Variable / Fixed / Optimizing round lengths
Weight:
5000 kg*
Power:
32 kW
Air pressure:
6 bar
Dimensions (LxHxW):
Ca. 20.000 x 2000x 1600 mm*
Mill diameter:
125 mm
Saw blade diameter:
450 mm
Suction point diameter:
1x 200 mm / 2x 120 mm / 1x 80 mm
Air speed extraction:
30 m/sec
Press force:
Adjustable up to max. 14.000 kg
