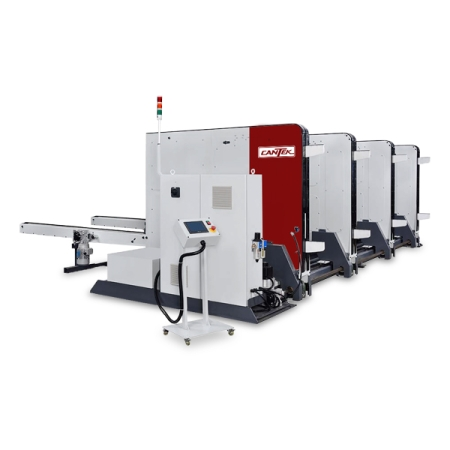

F-K01 | Cantek | Finger Jointers

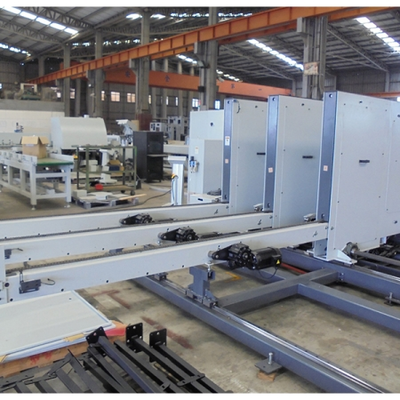

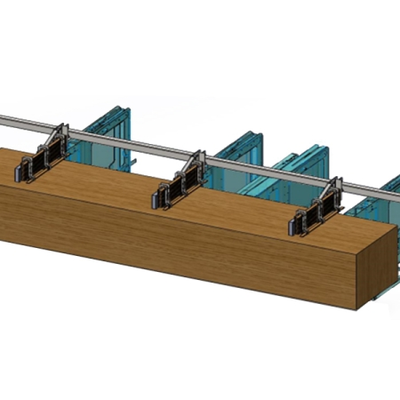

One step closer to full automation. The Cantek F-K01 Automatic Stacker represents a state-of-the-art automatic outfeed stacker linked to our Cantek finger jointing production line, meticulously crafted to automatically stack set-length timber in set-sized packs, eliminating the 1-2 operators required for post-finger joint stacking work. This automated outfeed stacker represents a significant stride toward achieving full automation and a substantial leap toward realizing your return on investment.Key AdvantagesStaging eyes for detecting quantity of boards before stackingVerification sensor for detecting broken boards within stackStandard fixed or optional moveable heads for different length material440lbs maximum weight capacity

Number of heads
4 fixed or moveable
Pack size (L x W)
39” x 39”
Maximum timber size (L x W x H)
20 ft x 8” x 2”
Minimum timber size (L x W x H)
10 ft x 2” x 1”
Maximum timber weight
110 lbs
Maximum layer weight
440 lbs
Speed
15~20 boards/min
Machine dimensions (L x W x H)
241” x 198” x 77”
POWER REQUIRED
Pick-up
2 kW x1
Arms up/down
3 kW x1
