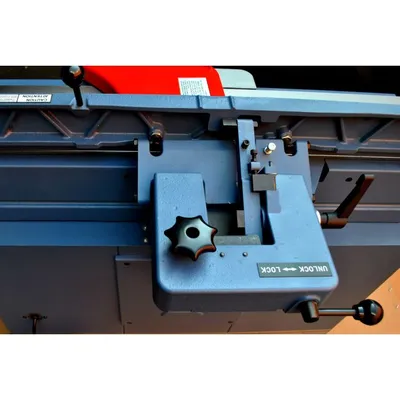

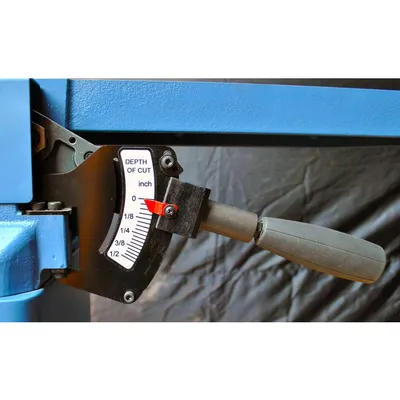

•Extra-long precision ground tables provide a stable work surface. •Parallelogram design provides smooth accurate cuts.•Cast iron frame offers stable table support.•Fully enclosed cabinet with 4″ port for superior dust management.•Built-in mobile base with lockable wheels.•Cabinet includes push pad storage.•Helical cutter head includes premium carbide inserts.•4-sided cutting inserts are indexed and easy to replace.•Lever controlled infeed and outfeed table adjustment allows quick set-up.•Long precision ground fence tilts up to 135° with positive stops at 45° and 90°.•Easy to read depth of cut gauge.•Large lockable paddle switch for added safety.•Powerful TEFC 2HP single-phase motor.•Poly V-belt drive efficiently delivers power to the cutter head.
230V 1PH 2HP 8AMPS
Stock Number|4235.201 (2HP, 1Ph, Helical)
Infeed Table Travel|1/2″
Cutterhead Speed|5,500 RPM
Number of Knives (helical)|36 Inserts
Maximum Depth of Cut |1/8″
Rabbeting Capacity|1/2″
Dust Port Diameter|4″
Table Dimensions|72” L x 8” W
Table Height|31-1/2″
Fence Dimensions|38″ x 5″
Fence Tilts|90°, 45°, 135°
Positive Stops|90° and 45°
Motor 1Ph|2HP, 230V Only (1Ph, 8 Amp)
Net Weight|352 lbs.
Gross Weight|490 lbs.
