J127LH | Cantek | Jointers

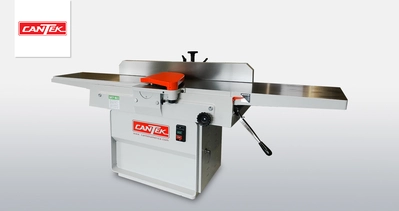

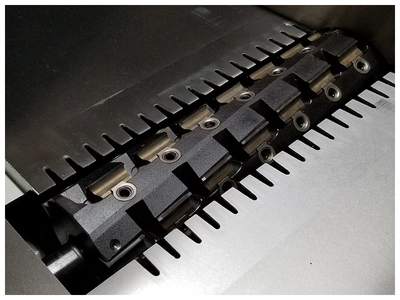

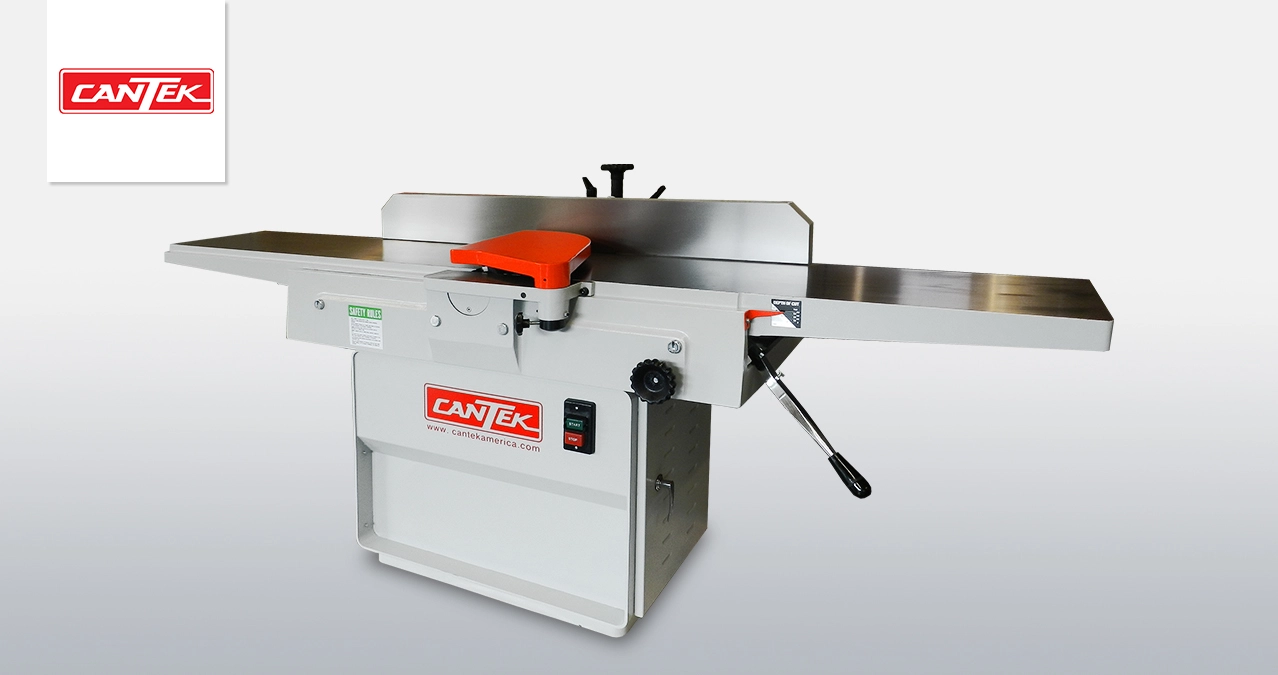

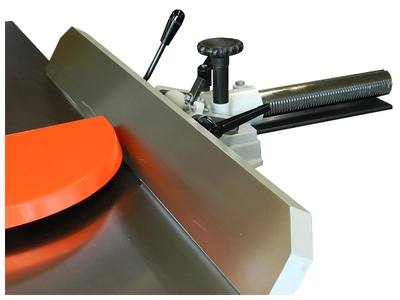

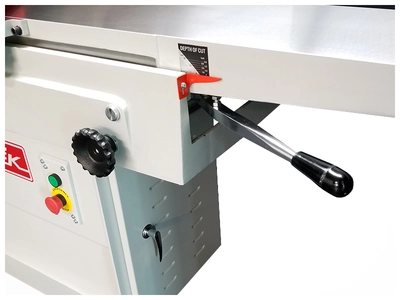

The Cantek J127LH Heavy Duty 12” Jointer is a truly industrial long bed jointer capable of producing perfectly jointed material used in the production of wood furniture, doors, face frames. and more.  The heavy-duty cast iron infeed & outfeed table and back fence provide superior vibration damping which results in an optimum jointed finish.  The spiral insert cutterhead with its two-sided solid carbide inserts provides optimum stock removal with a superior finish.  The insert knife cutterhead in its spiral pattern runs extremely quiet and the knives have an extremely long life.  The parallelogram table adjustment ensures a minimal gap between the cutterhead resulting in the best quality of cut.

230V 3PH 5HP 7.60AMPS
Motor|5HP Motor|5HP (230/3/60) = 15.2 amps|5HP (575/3/60) = 6.1 amps|3HP (230/1/60) = 17 amps
Max. cutting width|12″
Max. depth of cut|3/4″
Table size|12″ x 84″
Cutterhead RPM|5000 RPM
Cutterhead inserts|30x12x1.5mm (2) sided

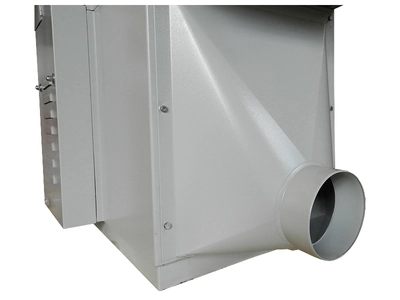

Dust port|(1) 4″
Machine dimensions|85 ¼” x 36” x 37”
Machine weight|740 lbs.
Shipping dimensions|88″ x 26″ x 38″
Shipping weight|880 lbs.
