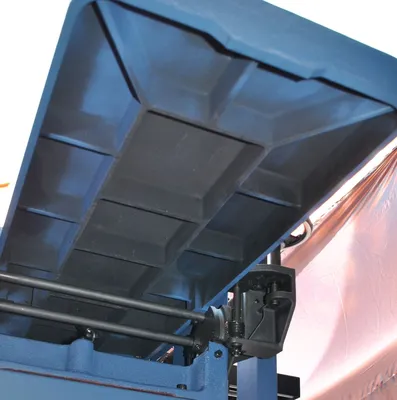

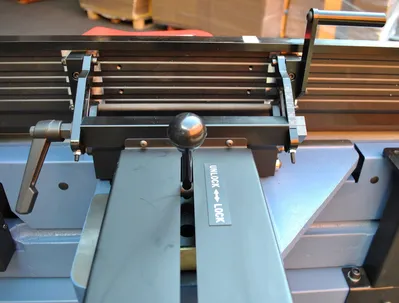

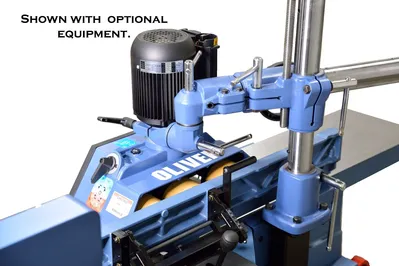

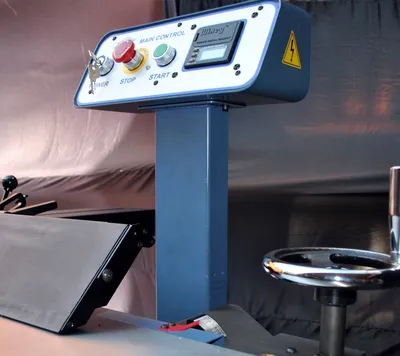

•Extra-long precision ground tables provide a stable work surface. •Parallelogram design provides smooth accurate cuts.•Massive cast iron frame offers stable table support.•Helical cutter head includes premium carbide inserts.•4-sided cutting inserts are indexed and easy to replace.•Wixey DRO shows table infeed table movement for precision cuts.•Pre-drilled bracket for easy (optional) powerfeed mounting.•Foot activated emergency power shutoff.•Lever controlled outfeed table allows easy adjustment.•Long European style aluminum extruded fence features positive stops at 45° and 90°.•Fence features flip down L-shaped attachment for use with thin stock.•Easy to read depth of cut gauge.•Powerful TEFC Baldor motor available in single or three phase.•Poly V-belt drive efficiently delivers power to the cutter head.
230V 3PH 5HP 11.8/5.9AMPS
Stock Number|4265.101.4S (3HP, 1Ph)
Stock No|4265.102.4S (5HP, 3Ph)
Infeed Table Travel|3/4″
Cutterhead Speed|5,500 (RPM)
Number of Knives (helical)|56 Inserts
Maximum Depth of Cut |1/8″
Rabbeting Capacity|3/4″
Dust Port Diameter|6″
Table Dimensions|88”L x 12”W
Table Height|34-3/4”
Fence Dimensions|47”L x 6”W
Fence Tilts|45°
Positive Stops|90° and 45°
Motor 1Ph|4265.101.4S 3HP, 230V (1Ph, 14.5 Amp)
Motor 3Ph|4265.102.4S 5HP, 230V (3Ph, 11.8/5.9 Amp)
Overall Dimension|88”L x 29”W x 55”H
Net Weight|814 lbs.
Gross Weight|980 lbs.
