MX350MR | Cantek | Edgebanders

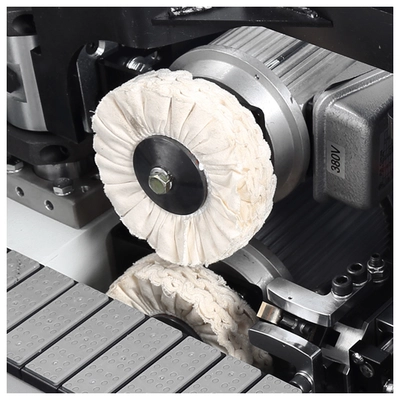

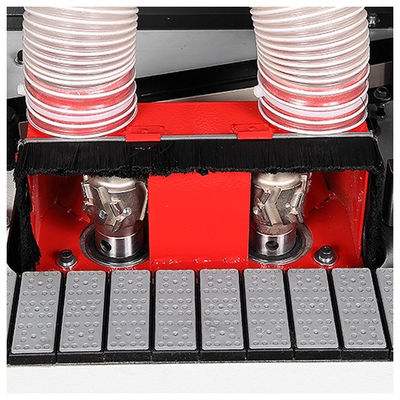

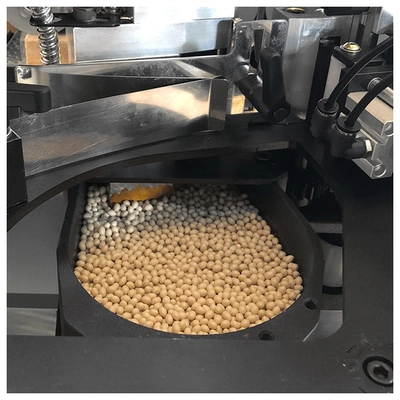

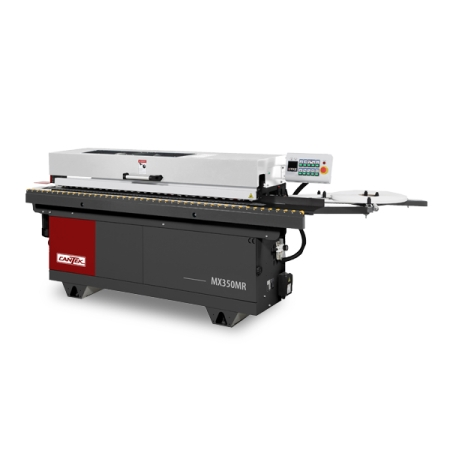

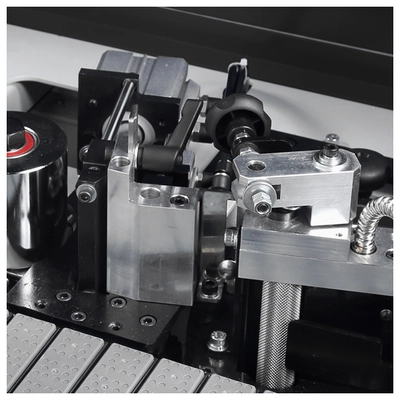

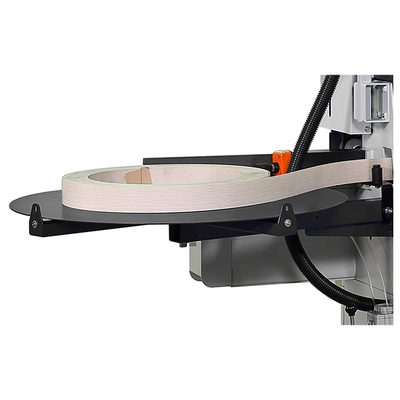

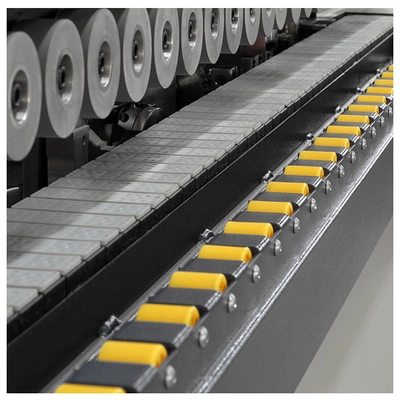

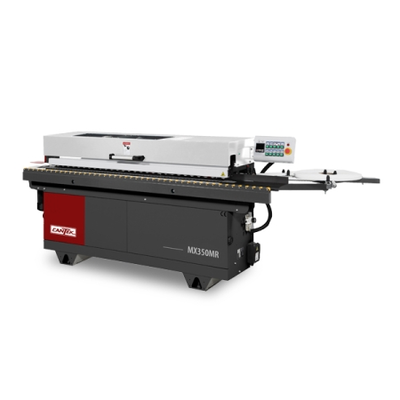

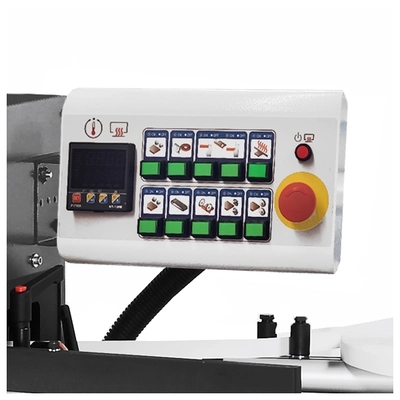

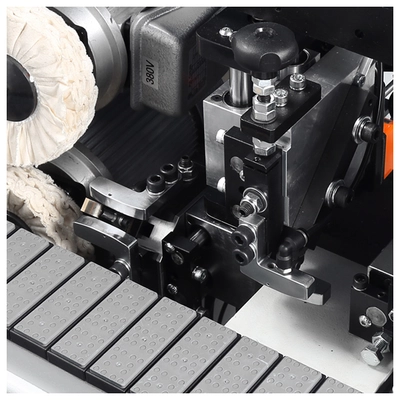

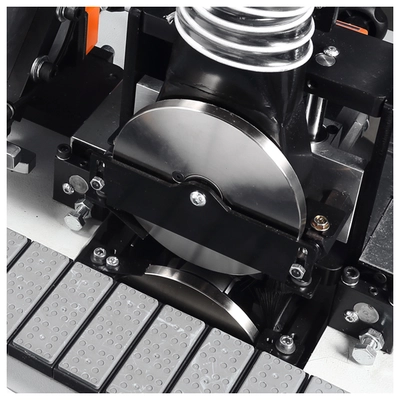

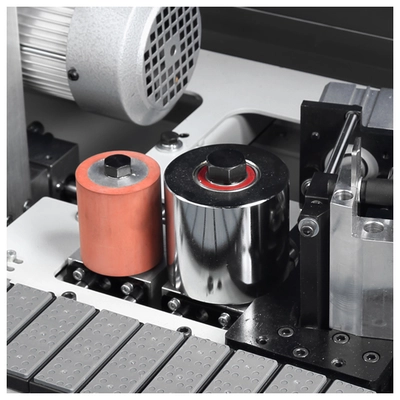

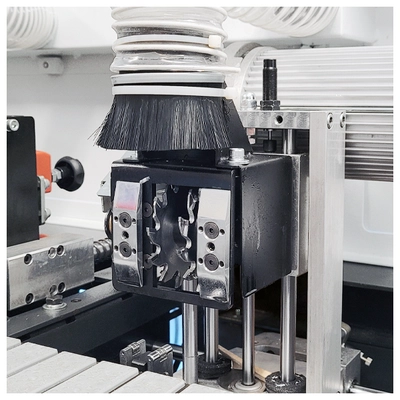

Compact edgebander with pre-milling for best-in-class results. The Cantek MX350MR Automatic Edgebander is an entry-level edgebander with pre-milling that is the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX350MR can output high-quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. A special feature of this machine is the dual purpose end trim system which can either flush trim or radius trim the end of the panel. Additionally, the machine is equipped with flush trimming, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.Key AdvantagesPLC control system with LED display and keypadWorkpiece is fed by chainEdge coil support plate: Ø 800 mm (31.5″), for PVC/ABSAutomatic edge feeding with a thickness capacity of 0.4-3 mm.Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.1.2 kg (2.64 lb) Teflon-coated hot-melt glue potSpring-loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)Heavy-duty pressure beam with extendable workpiece supportHeated infeed fence for preheating the panel for optimum glue penetrationMechanical digital readouts for convenient and quick adjustment to the working units & thickness

230V 1PH
INCH
METRIC
Feeding speed
23 FPM
7 m/min.
Panel thickness
0.472~1.77″
12~45 mm
Edge thickness
0.0158”~0.118”
0.4 ~ 3 mm
Minimum panel width
3.54″
90mm
Minimum panel length
8 3/4″
220mm
Working table height
33.7″
856mm
Extraction connection
3 x 4” = 1,200 CFM
3 x 100mm = 1,200 CFM
Air consumption
8.83 CFM
250 liters/min
Premilling spindle speed
9000 RPM
Top & bottom trimmer RPM
10500 RPM
Max. machine dimensions (LxWXH)
126” x 47 ¼” x 47 ¼”
3200 x 1200 x 1200mm
Machine weight
1162 lbs
528 kgs
Shipping dimensions (LxWxH)
111” x 28.4” x 52”
2820 x 720 x 1320mm
Shipping weight
1452 lbs
660 kgs
Electrical requirements
230/1/60 = 35 amps 230/3/60 = 19 amps
