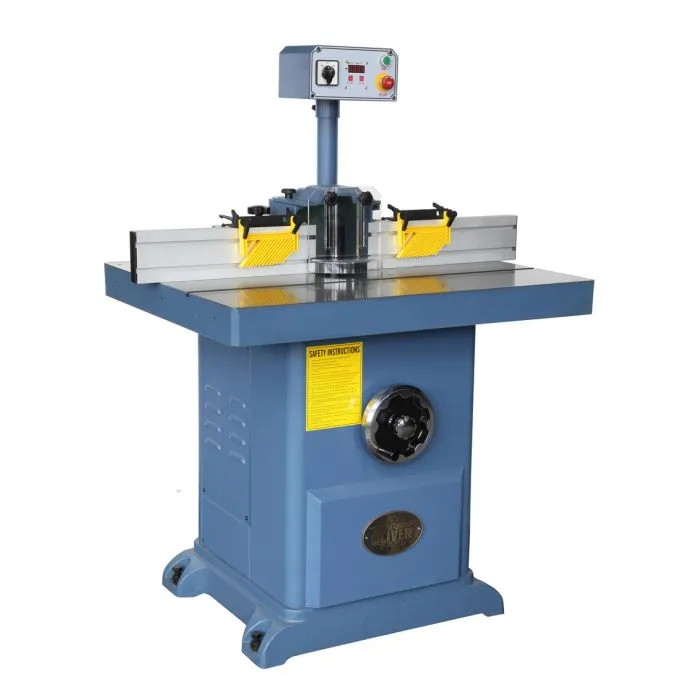

4705 | Oliver | Shapers

•Massive cast iron precision ground table provides a solid work surface.                                                                                                                                                                •Table features pre-drilled and threaded holes for power feeder.•Cast iron base provides a steady platform.•Table features pre-drilled and threaded holes for optional power feeder.•3/4” and 1-1/4” interchangeable spindles are included for added versatility.•Three spindle speeds allow more choices to produce a better finish.•Reversing spindle gives more options for each set-up.•Innovative dovetail design accurately raises and lowers the spindle.•Fence is independent and features micro adjustments for quick set-up.•Top mounted control panel includes a digital readout for spindle height.•Large hand wheel for quick spindle height adjustment.•Miter gauge included.•Magnetic controls with emergency off switch for safer operation.•Powerful TEFC motor available in single or three-phase

220/440V 3PH 7.5HP 16.8/8.4AMPS
Stock No. (5HP, 1Ph)|4705.001
Stock No. (7.5HP, 3Ph)|4705.002
Spindle Speeds |5,000, 7,000, 10,000 RPM
Maximum Tool Diameter|7” Below Table, 8” Above Table
Spindle Diameter|1-1/4” and 3/4” Interchangeable
Verticle Spindle Travel|4″
Spindle Direction|Reversible
Table Height|36-1/2”
T-Slot|3/4” x 3/8”
Dust Port Diameter|4”
Minimum CFM|800
Footprint|28-1/2”L x 24-3/4”W
Table Dimensions|39”L x 31-1/2”W
Motor 1Ph|5HP, 220V only (18 Amp)
Motor 3Ph|7.5HP, 220/440V*, Prewired 220V (16.8/8.4 Amp)
Net Weight|660 lbs.
Gross Weight|800 lbs.
