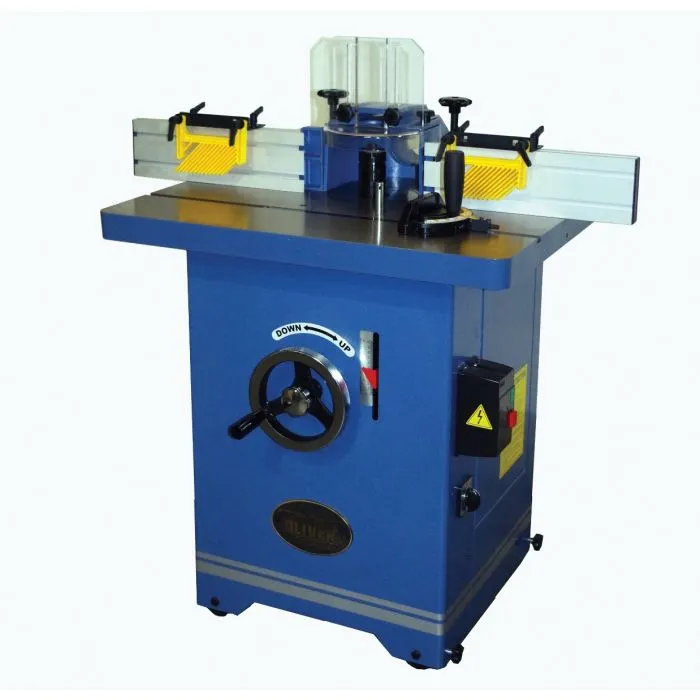

10047 | Oliver | Shapers

•Large cast iron table is precision ground table to provide a solid work surface.

220V 1PH 3or 5HP
Model Number |10047
Stock No. (3HP, 1Ph)|10047.001
Stock No. (5HP, 1Ph)|10047.002
Spindle Speeds |4,000, 6,000, 8,000, 10,000 RPM
Spindle Diameter:|1-1/4”
Verticle Spindle Travel:|4″
Spindle Direction:|Reversible
Under Nut Capacity:|4” with 1-1/4” Spindle
Table Opening: |6-1/4″
Large Insert Opening:|4-5/16”
Small Insert Opening:|2-1/2”
Table Height|34-3/8”
Table Size|32” x 26”
T-Slot:|3/4” x 3/8”
Fence Size (2):|4-13/16” x 16”
Dust Port Diameter|4″
Minimum CFM: |800
Table Dimensions|40” x 27”
Motor 1Ph|3HP, 220V 1Ph only (8 Amp) or 5HP, 220V only (18 Amp) 1Ph Only
Net Weight|473 lbs.
Gross Weight|550 lbs.
