A5615 | Voorwood | Shapers

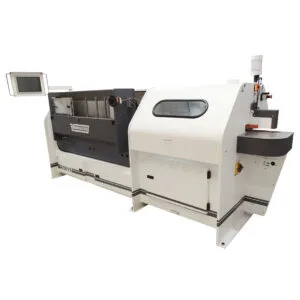

The Voorwood A5615 Automatic Double-Side Cope & Stick Shaper will process stiles and rails without operator input. RAIL PROCESSING: Substrates are hopper-fed random length parts. The machine automatically measures the rail substrate and selects the desired finished length without any operator input or downloaded cut list. The rail is placed in the dual timed cartridges with self-locating backer blocks that eliminate blowout for cope shaping, processes both cope cuts at the same time, and ensures a square part sized to the desired length. The rail is placed on a conveyor in the back of the machine after the cope shaping process and redirected 90 degrees. The power feeder aligns part into next stage to stick cut the rail, size to width, and automatically insert space balls.
