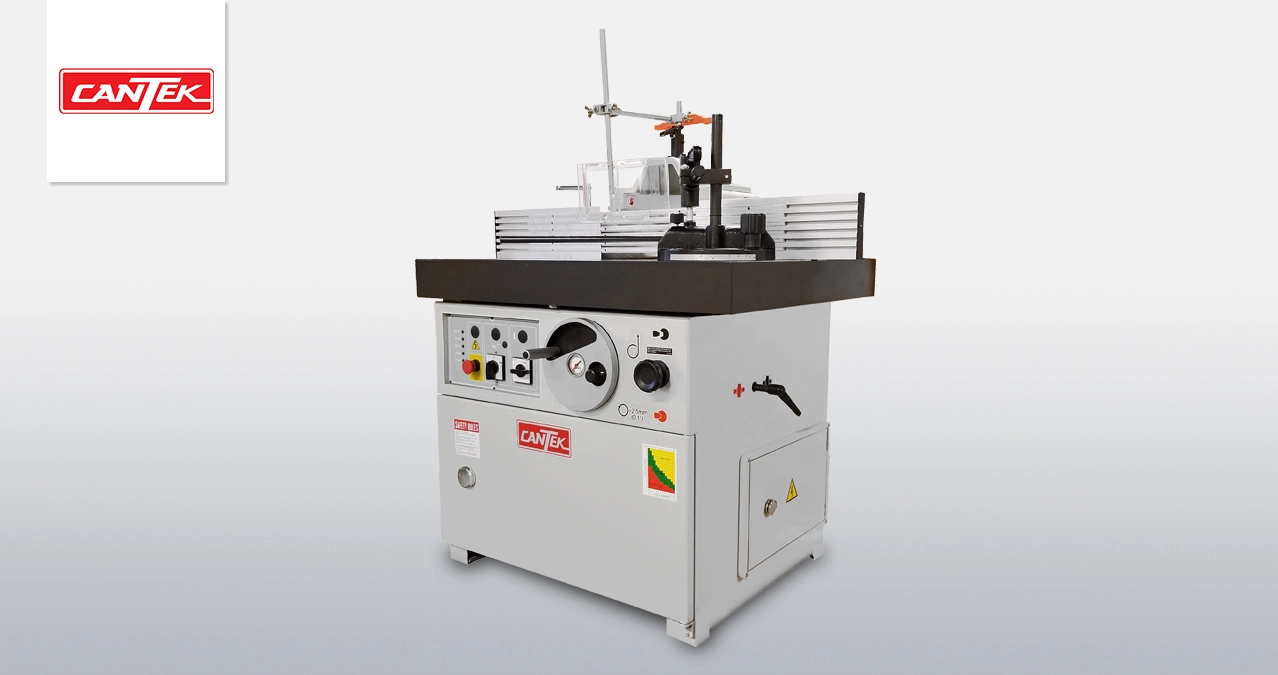

SS512CB | Cantek | Shapers

The Cantek SS512CB shaper is a ruggedly built shaper with refined features well suited for demanding production environments.  Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more.  The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles.  The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.

230V 3PH 7.5HP
Table size|31 ½” x 39.4″
Spindle speeds (5)|3000/4000/6000/8000/10000 RPM
Spindle taper|5 MT
Spindle diameter|1 ¼”
Motor|7.5 HP
Above table|13 ¼”
Below table|8 ¼”
Fence size|6″ x 43″
Vertical spindle stroke|7″
Useable length of spindle|5 ½”
Dust port|(1) 5″ on guard, (1) 4″ in table
Total HP|7.5 HP
Net weight|1034 lbs.
Machine dimensions|48.4″ x 39.4″ x 52 ¾”
Shipping weight|1166 lbs.
Shipping dimensions|45 ¼” x 37″ x 41″
Machine electrics|230/3/60 = 22 amps
