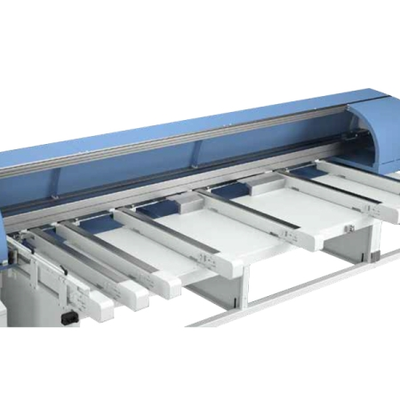

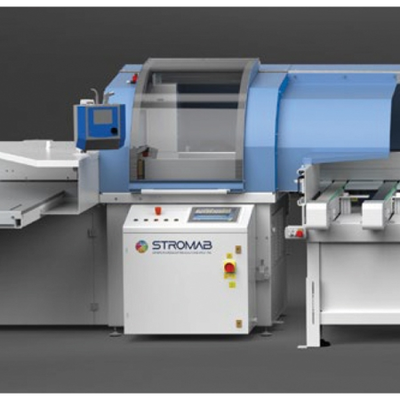

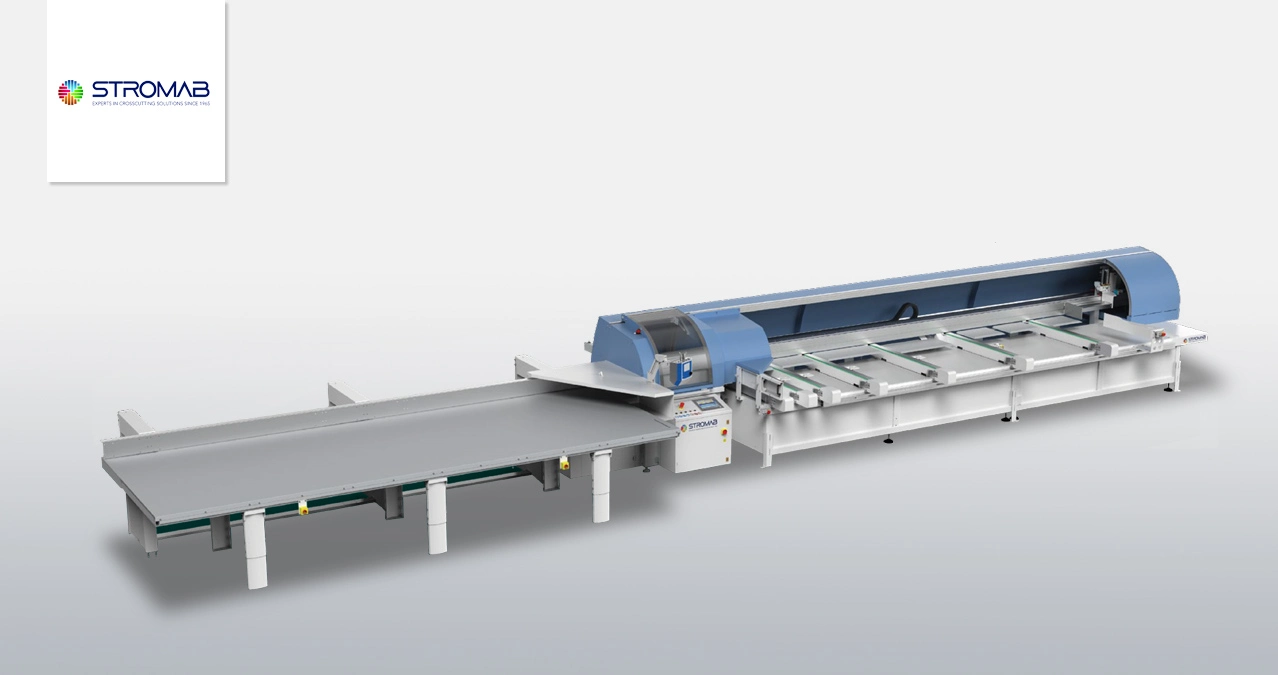

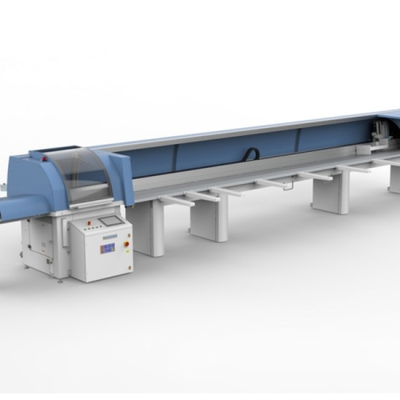

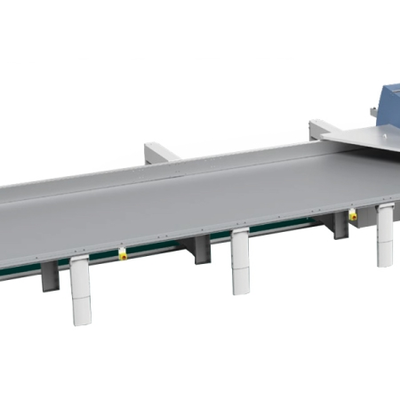

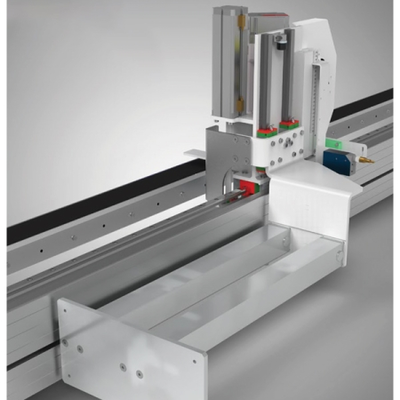

The Stromab TR601 MXA Heavy Duty Automatic Push Feed Straight Crosscut Saw model boasts the Matrix infeed system but also includes additional built in SAFE modules, photocell barriers and TUV certification. For increased weight requirements, the TR601 MXA is designed for products such as I-joists, Kerto, Glulam and LVL, Stromab’s high performance linear guide system and helical gear system powers this innovative push fed crosscut saw. Stromab’s TR601 MX hydraulic saw is a solution for companies doing pallet production, wooden packaging, bulk cutting, and mass furniture manufacturing, featuring a 23.6” (600mm) diameter sawblade, 9kW direct drive saw motor and huge cutting capacity of 26” (660mm) wide and 7.9” (200mm) high.
480V 3PH
Upgrade | TR601F with Milling Unit
Milling Cutter
Ø 280 mm (11”)
Boring
Ø 40 mm (1.6”)
Milling Stroke
400 mm (15.8”)
Maximum Width Milling Tool
100 mm (3.9”)
Adjusting Milling Depth
From 0 to 75 mm (0-3”)
Motor Power
4 kW (Standard)
Dust Extraction Outlets (x3)
Ø 120 mm (4.7”)
Milling Unit Additional Options:
Milling motor power 5.5 kW
Milling motor power 7.5 kW
Cutter head 90° Ø 280, Boring Ø 40, Adjustment 30 ÷ 60, Z = 4+4
Cutter head 90° Ø 280, Boring Ø 40, Adjustment 60 ÷ 100, Z = 4+4
Electronic positioning of the milling depth
