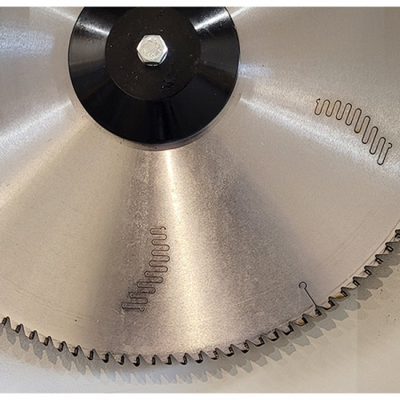

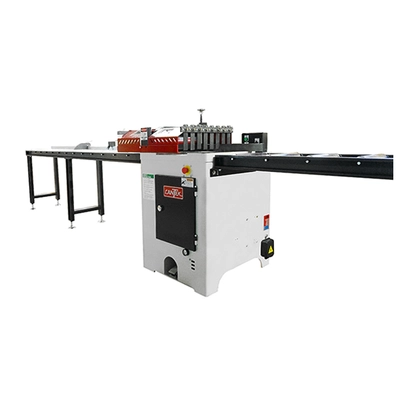

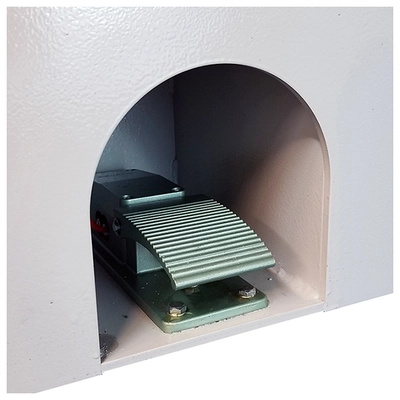

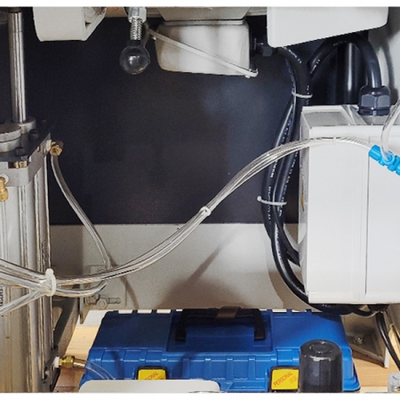

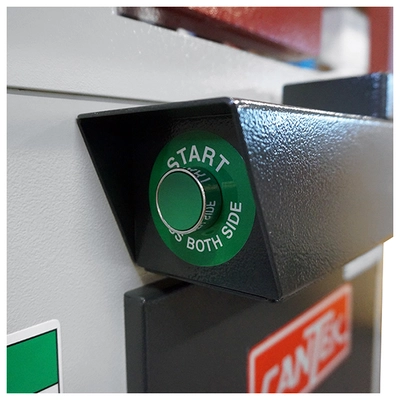

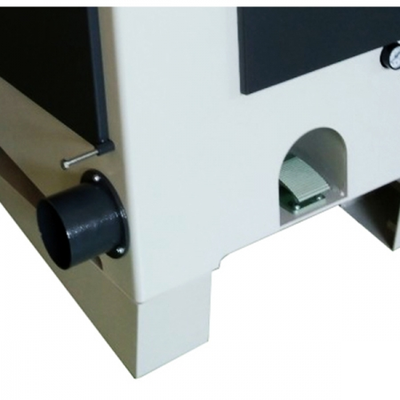

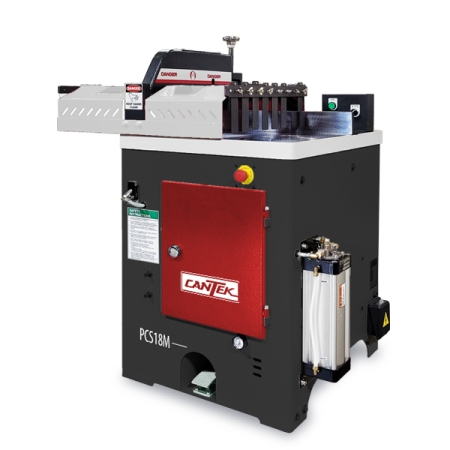

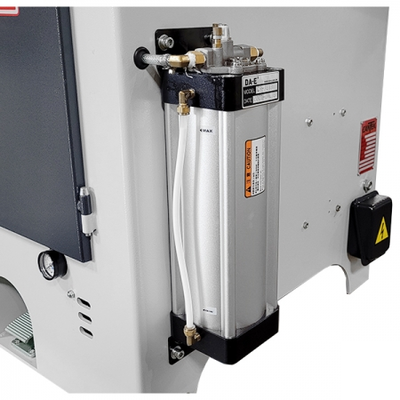

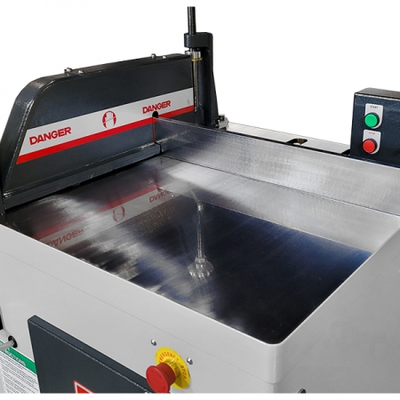

18” Non-Ferrous Pneumatic Cut-Off Saw. The Cantek PCS18M 18″ Non-Ferrous Pneumatic Cut-Off Saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 10HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, security bolt on the saw access door, blade misting system, and solid chrome table. Available in either left hand or right hand operation depending on your ideal production flow.Key FeaturesAvailable in Right Hand & Left Hand configurationCut off capacity (thickness x width): 2″ x 12″, 3″ x 11″, 4″ x 10″Powerful 10HP main motorPneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)Fast cutting cycle with up to 45 strokes per minuteNon-ferrous cutting bladeAir over oil for precise speed controlBlade misting system that applies a thin film of lubricant for preventing friction build up, and maximizes saw productivity and blade lifeCorrosion resistant solid chrome tableZero cut line with T-clamp that increases precision cuts and reduces possibility of tear outMaterial clamp is easily adjusted for workpiece thickness variation.CSA/UL magnetic switch
Cutting capacity (thickness x width)
2″ x 12″, 3″ x 11″, 4″ x 10″
Cycle speed
45 strokes/min
Cycle operation
Air
Saw blade size (optional)
18″
Saw arbor diameter
1″
Saw blade speed
3600 RPM
Dust exhaust diameter
Ø4″
Air consumption
9.8 CFM | 80 PSI
Motor
10 HP
Table size
26” x 27 ½”
Net weight
770 lbs.
Gross weight
902 lbs.
Machine dimensions (LxWxH)
42” x 27” x 48”
Packing dimensions (LxWxH)
37” x 33 ½” x 53.2”
Power requirements
230/3/60 = 28 amps | 460/3/60 = 14 amps | 575/3/60 = 11 amps
