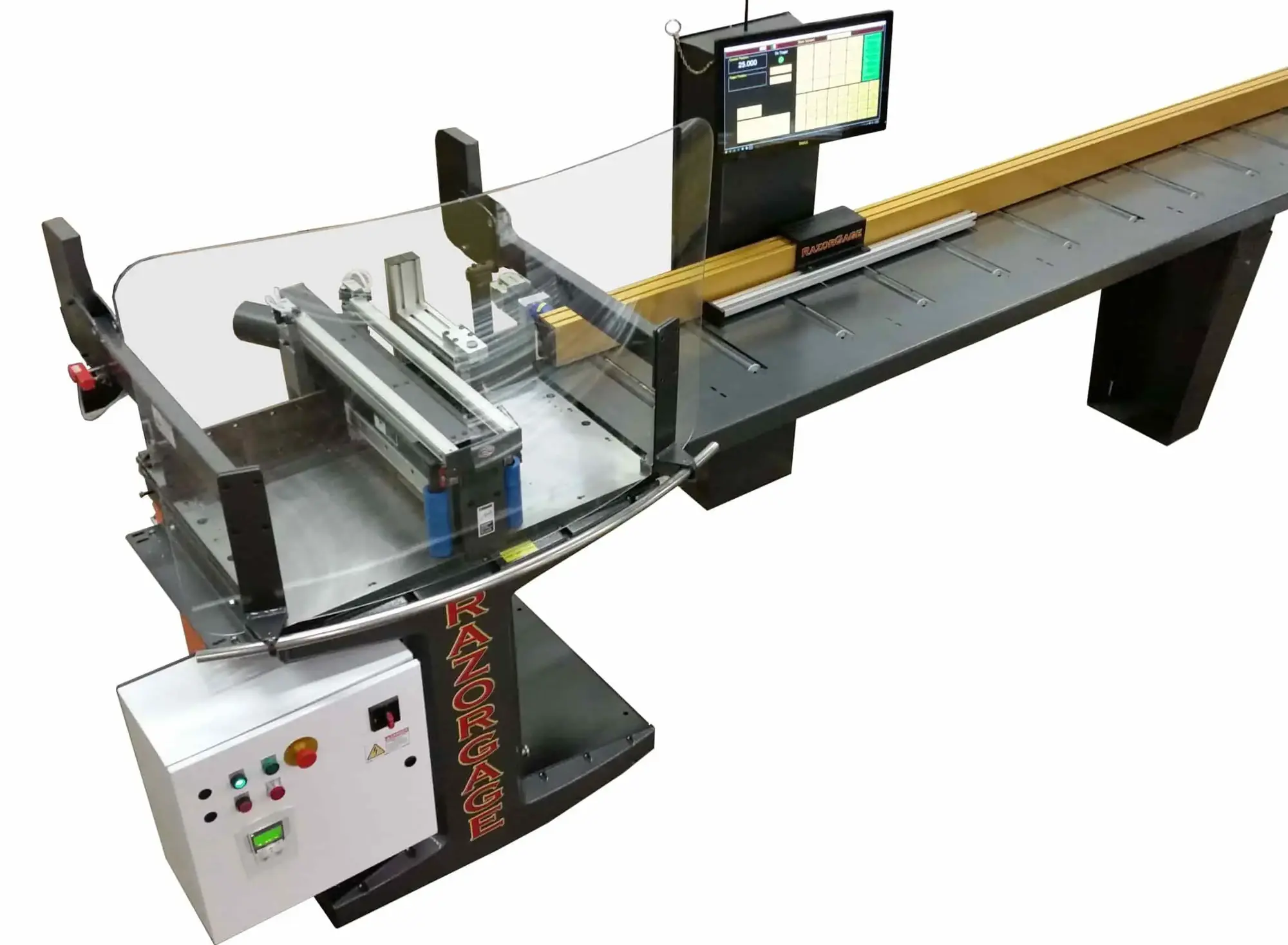

The RazorGage APS Automatic Optimizing Upcut Saw System is built around the powerful and highly accurate RazorGage ST Automatic Saw Measuring System and the durable, clean-cutting Cyclone 600 Upcut Saw. The APS optimizes your cuts, but the main feature is the Automatic Pusher System which allows you to push “Go” and stand back. The automatic saw does the work and allows one person to both feed the saw and offload the finished parts. The APS automatic positioner and automated saw system enables more efficient processes in your cutting operation.
7.5HP 230/460V 3PH

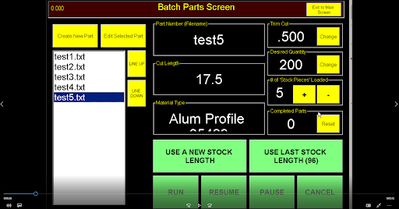

•Download cutlists directly to the RazorGage APS auto feed saw computer via Ethernet, USB drive or Wi-Fi

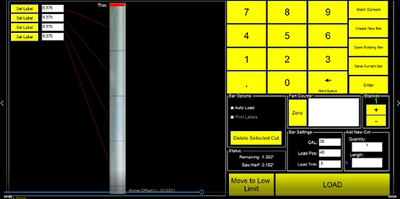

•Optimize cutlists at the machine or run pre-optimized lists from your design software
•Limitless options for sorting upcut saw cutlists groups of like material, color, job and more — right at the machine
•Part length accuracy varies with application but +/-.005″ is possible
•Push 200 lb at 10″/sec or lighter loads at up to 55”/sec
•Print paper labels or inkjet print directly on the parts using ink that is easy to sand off
•Auto saw table surface options include solid PVC, PVC rollers or steel rollers
•Windows Tower PC operation on a large, user-friendly, full-color hi-resolution touchscreen monitor
•Optional articulated pusher mounted gripper
