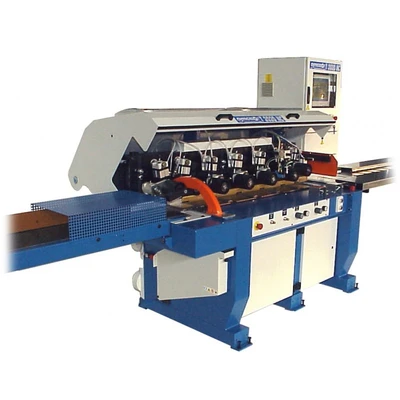

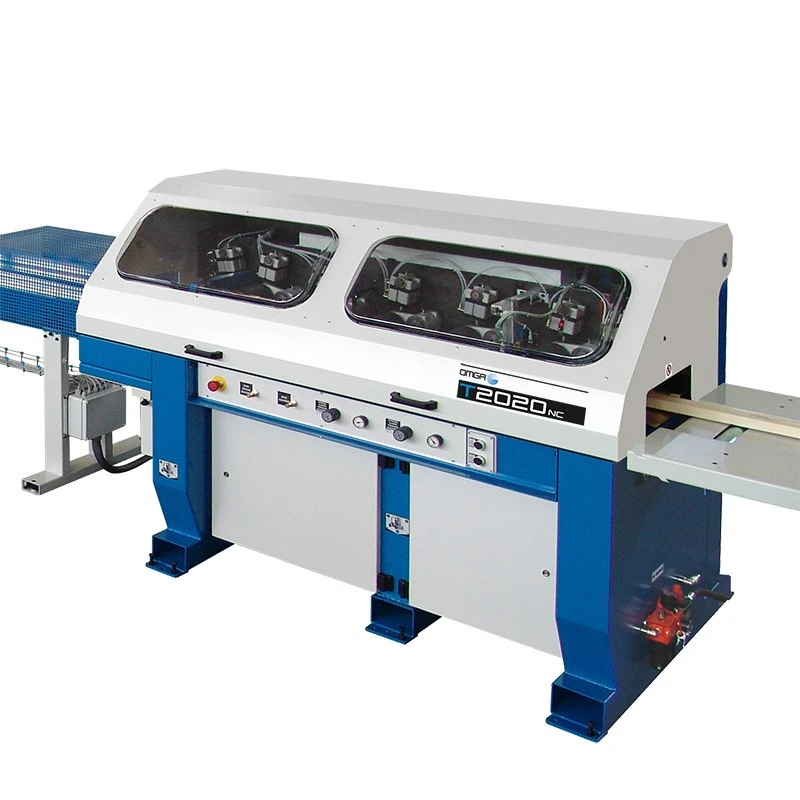

T 2020 NC | OMGA | Cutoff Saws

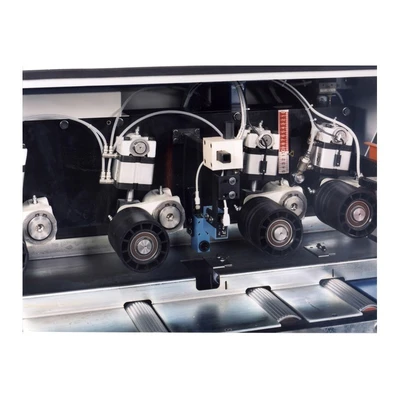

Particularly suitable for high production requirements given its very high maximum feed speed of 240 m/min. The set of 7 feeding rollers with corresponding top pressure rollers are able to compensate for dimensional variations of rough mill stock. The machine is equipped with a Windows based PC. The software is capable of performing eleven work cycle programs. Cutting lists can be input directly from the PC keypad, USB port, with direct serial connection to a remote PC or directly through the network. The software is complete with diagnostic and can also provide the following information: – Stock, in cubic meters, required to produce the number of pieces in each list. – Number of pieces produced of each length. – Amount of stock in cubic meters divided into: first, second, third grade and waste – Cubic meters required to produce remaining parts. – Yield as a percentage of the total – The system can perform simulated cutting to test the result before processing the wood and allowing the user to decide about the parameter setting for the required production.

7.5HP 230/460V 3PH
Max. piece thickness|4 3/4″
Max. piece width|12 5/8″
Min. infeed length|23 5/8″
Max. feed Speed|800 FPM
Saw blade motor power|7.5 HP
Feed motor power|35 Nm
Max. Acceleration|50 feet/sec.
Cutting Speed|0.2 – 1 sec.
Average number of cuts|80 – 90min.
