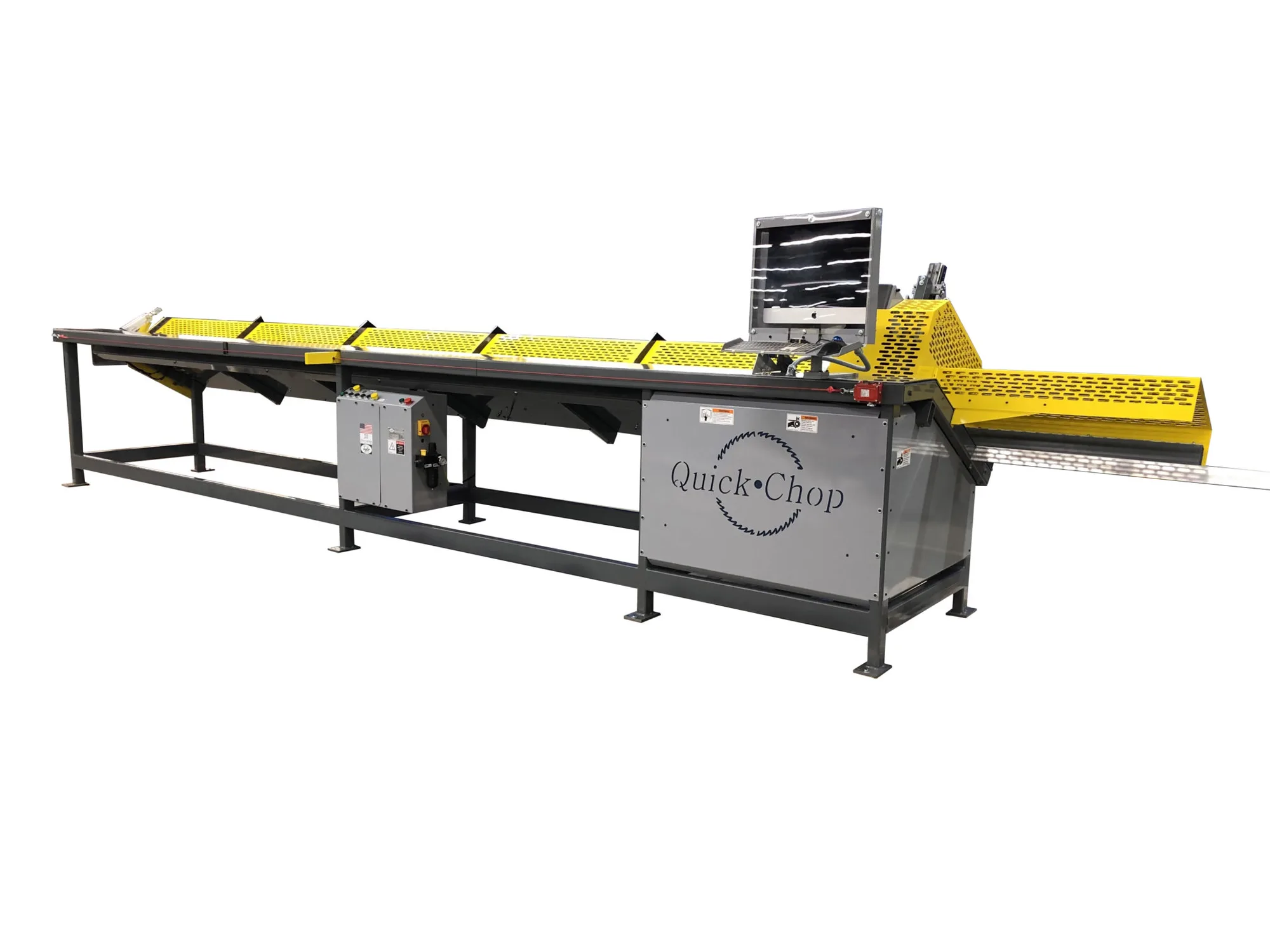

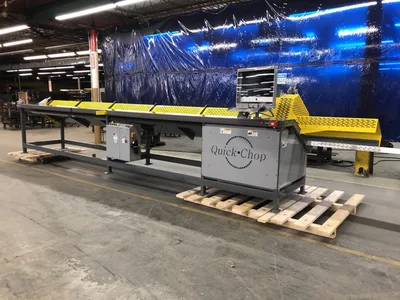

#611 | Cameron | Cutoff Saws

Like our other Cameron Platforms, the Cameron “Quick Chop” Program is robust and powerful. The Quick Chop’s software runs on a full featured computer – not just a keypad and a PLC. Because the Quick Chop is designed with the custom shop in mind, the software is sophisticated yet easy to use and easy to understand. The Quick Chop Plus can cut around 30 lineal ft. of material a minute. This totals 13,000+ Lineal Feet per (8) Hour shift.

7.5HP 230/460V 3PH
•Power Requirements (3 Phase Required)
220V = 30 Amps
480V = 15 Amps
•Air Requirements
1/4″ Airline = 5 SCFM @ 90 psi
•Saw Blade Cutting Capacities
14″ Diameter / 1″ Bore
4/4 Material = 8.5″ Wide
8/4 Material = 7″ Wide
18″ Diameter / 1″ Bore
4/4 Material = 13″ Wide
16/4 Material = 10″ Wide
•Saw Arbor Motor
7.5 Hp
•Max Material Length Capacity
Offered in 12, 16, 20, and 24 ft Length Options
•Dust Collection
1 x 4″ Dust Port
400 CFM Required
