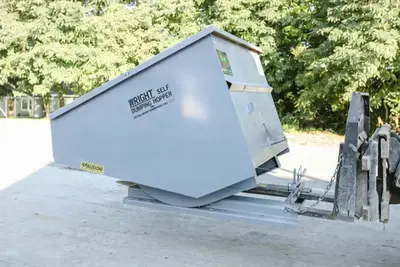

Check out Wright’s 2 yd self-dumping hopper for material handling. These hoppers are manufactured with heavy steel construction. They are built with a 3” fork opening, low center of gravity, and a compact footprint ready for every day use.
Volume Capacity 2 yd³
Overall Width A 57.75 in
Overall Height B 46 in
Overall Length C 64 in
Fork Opening D 3 by 28 1/2 in
Container Length F 64 1/4 in
Dump Clearance Height G 64 1/4 in
Dump Clearance Bottom H 9 3/4 in
Dump Clearance Length I 83 3/4 in
Front Clearance J 9 3/4 in
Base Width K 36 1/2 in
Base Length L 54 in
Dump Angle M 38 º
Center Of Gravity N 28 1/4 in
Weight Capacity 7000 lb
Approximate Weight 790 lb
Pouring Lip E 11 1/2 in
