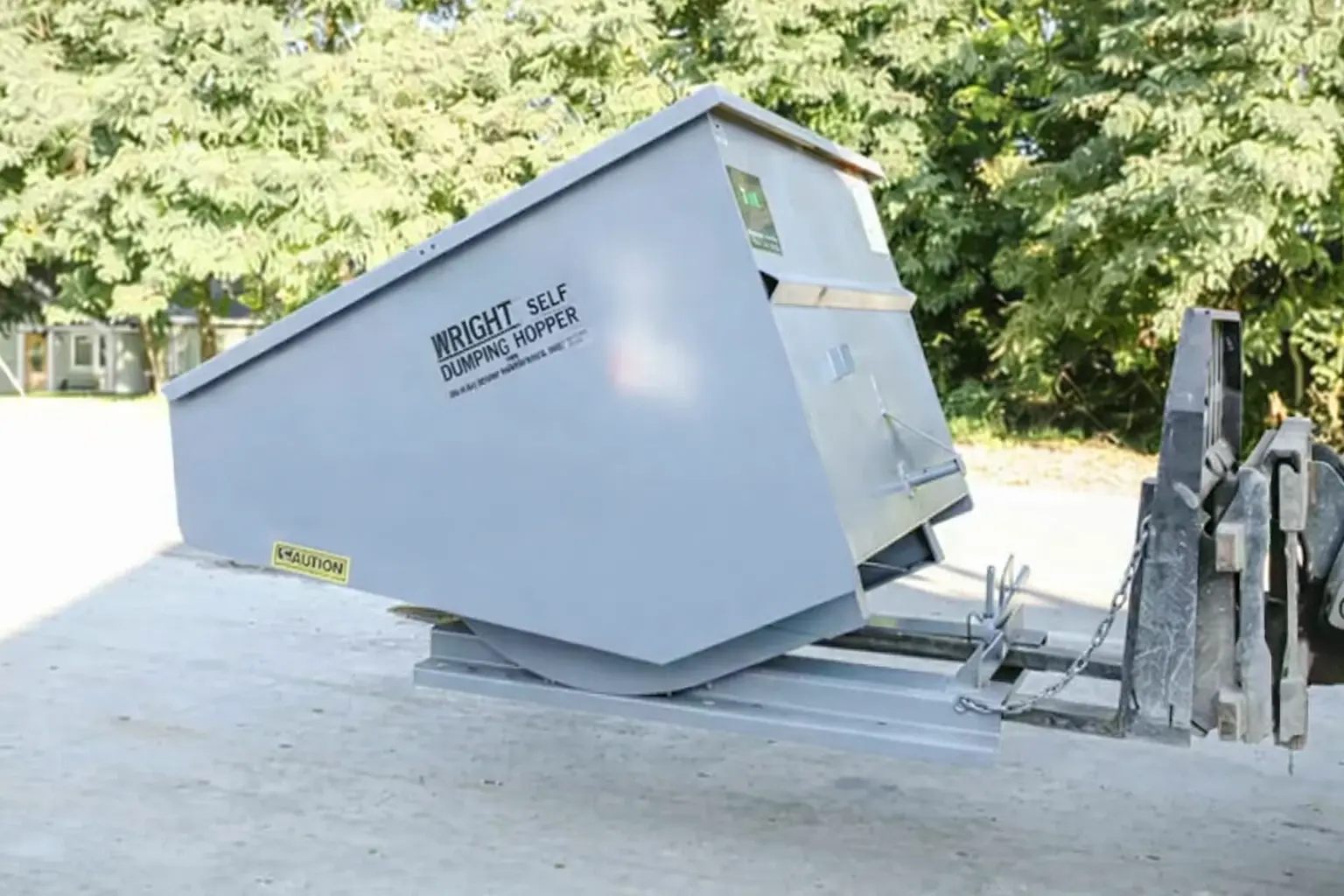

Check out Wright’s 1 1/2 YD self-dumping hopper for material handling. These hoppers are manufactured with heavy steel construction. They are built with a 3” fork opening, low center of gravity, and a compact footprint ready for every day use.
Volume Capacity 1.5 yd³
Overall Width A 57.75 in
Overall Height B 39.75 in
Overall Length C 63.5 in
Fork Opening D 3 by 28 1/2 in
Container Length F 63 1/2 in
Dump Clearance Height G 60 3/4 in
Dump Clearance Bottom H 7 in
Dump Clearance Length I 78 3/4 in
Front Clearance J 9 1/2 in
Base Width K 36 1/2 in
Base Length L 54 in
Dump Angle M 31 º
Center Of Gravity N 25 1/2 in
Weight Capacity 4000 lb
Approximate Weight 553 lb
Pouring Lip E 3 in
