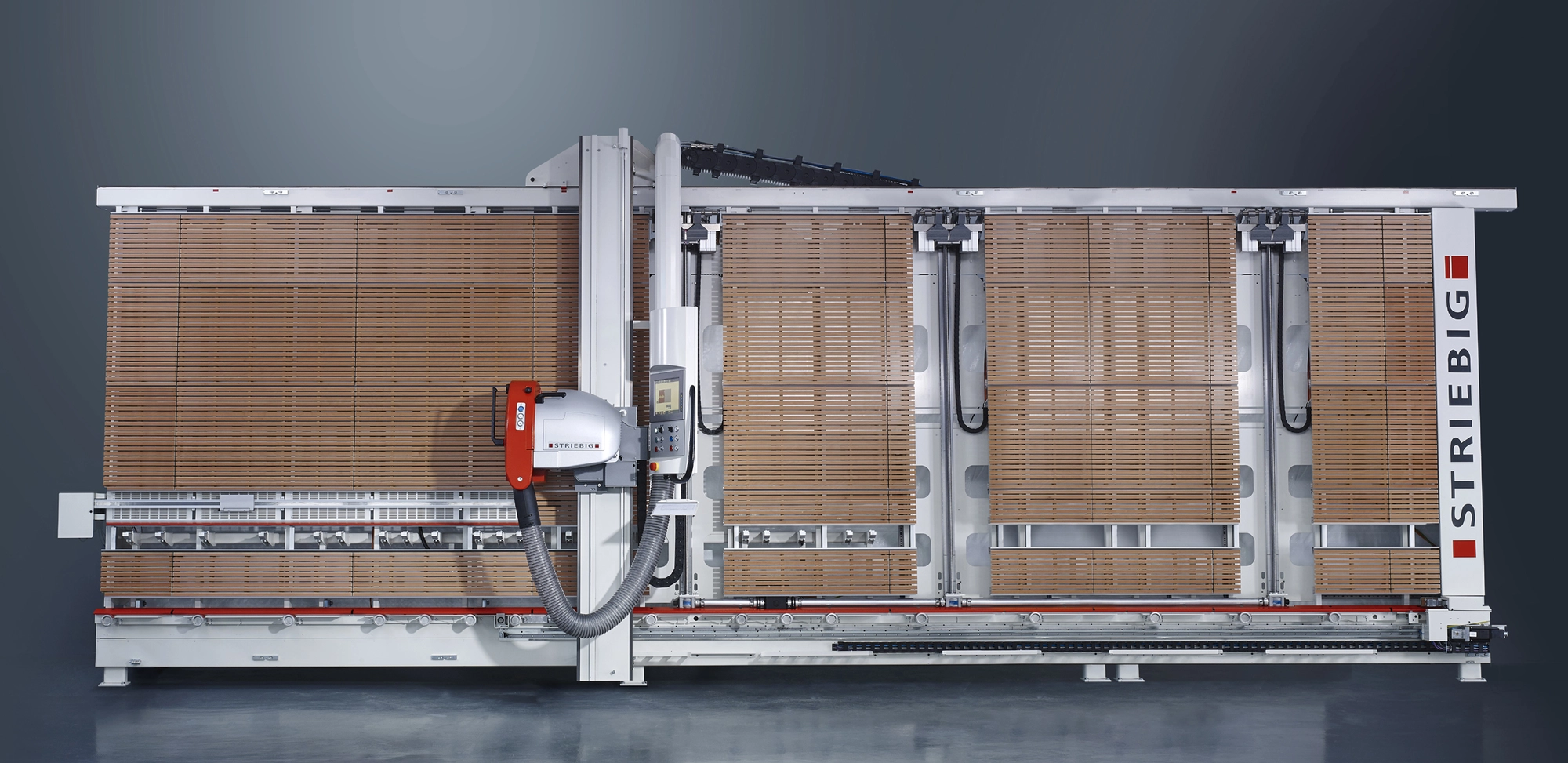

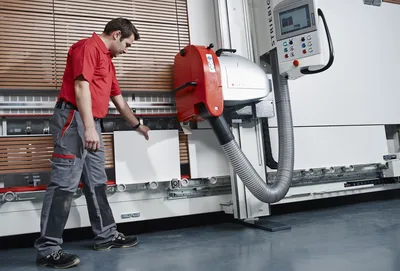

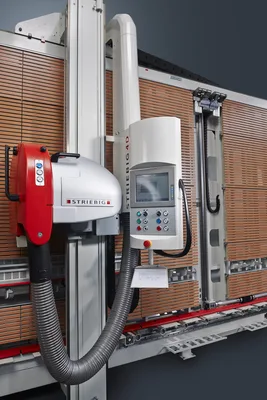

The world leader in vertical panel saws, introduces the most technologically advanced vertical panel saw, the 4D model. The 4D is a true CNC panel saw capable of producing finished, cut-to size parts without having to turn the panel or off-load and reintroduce parts.With pneumatic assistance, the unit plunges fully automatically into the panel. Feed speeds can be infinitely adjusted between 10 and 25 m/min, thus individually adapted to the material being cut.
7.5HP 220/440V 3PH
Cut capacities*:17’ 1”L, 7’ 4”Hvert, 7’ 10 ½” Hhorz; Depth 3-1/8” (80 mm) standard
*larger frame sizes with cut capacities to 10’ x 30’ available upon request; and 105mm (4-1/8”) or 130mm (5-18/”) cut depths available

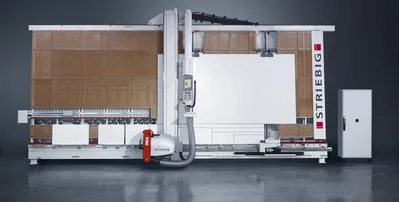

Machine dimensions: 23’ 10”L, 10’ 4”H, 6’ 3” D (free-standing); plus 3’W x 2’D x 4’8”H control box at right end of machine
Weight:2640 lbs., (approx. 3900 lbs. shipping)
Electrical requirements: 3-phase, 220V, 30A min. circuit
Dust collection: 1000cfm (min), 140mm dia. connection
Compressed Air: 100 psi, 3 cfm (air dryer strongly recommended)
