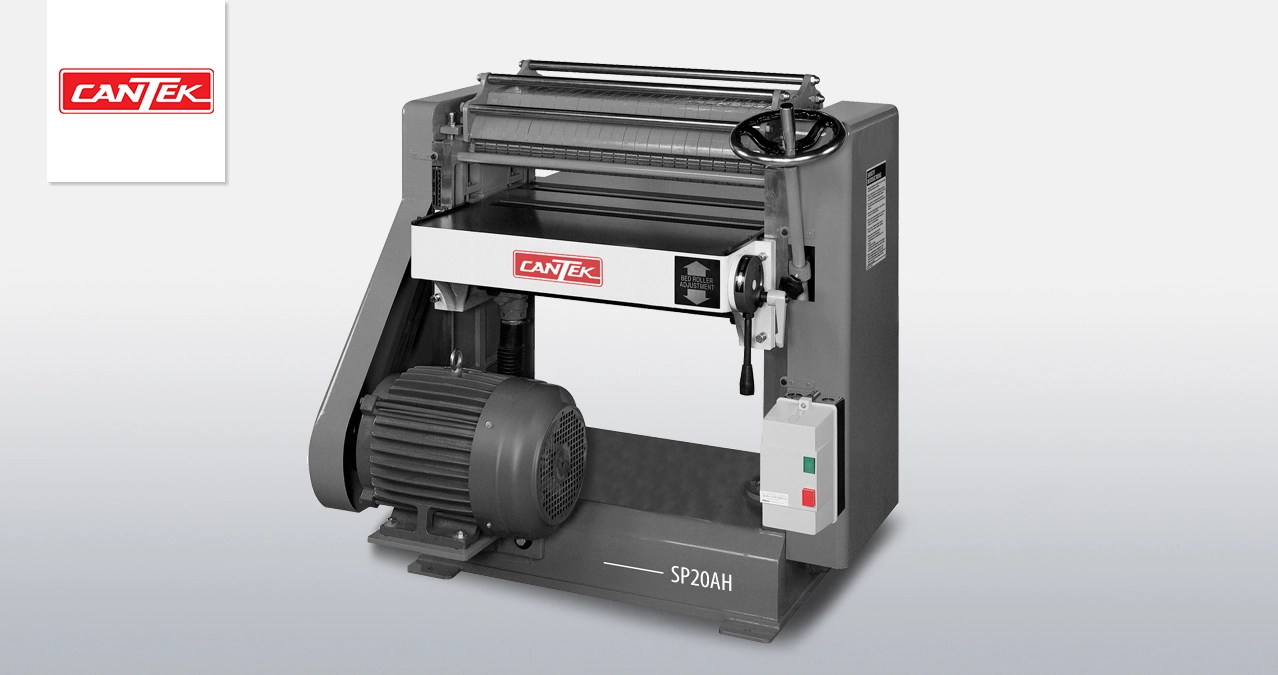

SP20AH | Cantek | Planers

The Cantek SP20AH 20” Planer is an entry-level planer that provides a cost-effective solution for many of your planing needs without sacrificing quality. It comes equipped with many important features that are typically found in higher priced solutions.  These features include a sectional infeed roller, sectional chipbreaker and a spiral insert knife cutterhead!  The spiral insert knife cutterhead produces a smooth cutting surface, requiring less power than a traditional straight knife head. The spiral head is quieter and the solid carbide inserts have a longer life expectancy and easily replaceable. The SP20AH is a popular choice for small to medium-sized furniture and cabinet manufacturers looking for a robust, simple, and affordable planing solution.

5HP 230V 3PH
Table area|21″x27-1/4″(533x692mm)
Cutterhead Diameter|3″ (75mm)
Cutting circle|3-1/4″ (82.5mm)
Cutterhead speed|5500 rpm
Spiral row numbers|6
Knife insert size|15 x 15 x 2.5mm
Feed rollers|3″ (75mm)
Table rollers|2-3/8″ (60mm)
Range of feed speed|36 ft/min
Stock thickness range|0.079″-7.874″
Maximum depth of cut|1/4″ (6.3mm)
Maximum width of stock|20″ (508mm)
Cutterhead motor|5 HP
Feed drive motor|1 HP
Net weight|400 kgs(882lbs)
Gross weight|450 kgs(993lbs)
Packing dimensions|40″x38″x44″
