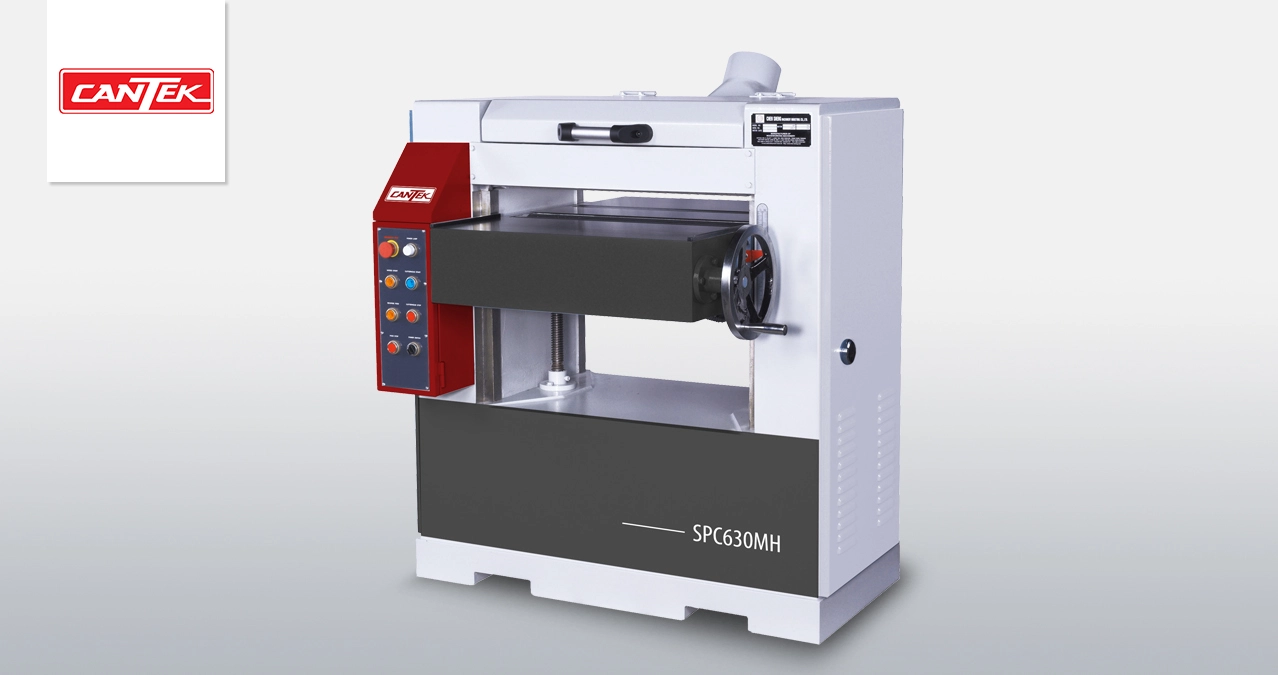

SPC630MH | Cantek | Planers

The Cantek SPC630MH 24” Planer is designed to be heavy duty & robust but at an economical price point. The frame is built from industrial cast-iron which is designed to greatly reduce vibration resulting in a superior planed surface and long machine life. The spiral insert knife cutterhead with 4-sided insert knives produce an extremely smooth finish with greatly reduced noise.  The industry standard 4-sided inserts allow for superior chip removal with greatly reduced tear out given their shearing action.  The table is moved up and down manually and thickness is set using a simple scale.  The cutterhead is driven by a powerful 10HP motor or it can be purchased without motors.

10HP 230V 3PH
Table area|36″x25″ (915x635mm)
Cutterhead Diameter|3.86″(98mm)
Cutting circle|4″(101mm)
Cutterhead speed|5500 rpm
Spiral row numbers|6
Knife insert size|15 x 15 x 2.5mm
Feed rollers|3″ (75mm)
Table rollers|2-1/2″ (65mm)
Range of feed speed|18/27/36 ft/min
Stock thickness range|1/4″-8″(6-203mm)
Maximum depth of cut|5/16″(8mm)
Maximum width of stock|24″ (610mm)
Cutterhead motor|10 HP
Feed drive motor|1 HP
Net weight|900 kgs(1985lbs)
Gross weight|1000 kgs(2205lbs)
Packing dimensions|48″ x 45″ x 54″
(1220x1143x1372mm)
