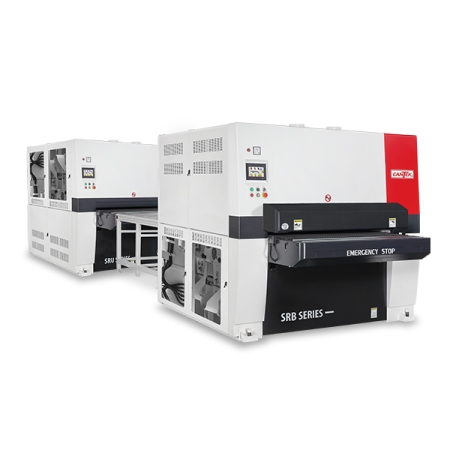

SRU/B | Cantek | Sanders-Wide Belt
Overview
Description
Sand in a single pass with a premium constant passline top and bottom widebelt sander series.The Cantek SRU/B Series Top and Bottom Wide belt Sander is designed for in-line or stand-alone operations. Suitable for double-sided processing solid wood or sealer sanding applications is built to exacting standards to sand multiple surfaces generally in one pass to achieve outstanding results with maximum efficiency. The SRU/B Series is available with multiple configurations with 1-3 sanding units and widths of 24”, 36”, 43”, and 51”. Sanding units can be rubber or steel contact drums, combination sanding units (drum/platen). In addition, the machine can be configured with a spiral insert knife cutter head for a planer sander combination.Key AdvantagesElectronic belt trackingPneumatic Disc brakes for the sanding headsHigh-quality conveyor belt with superior grip and durabilityQuick release outboard supports for fast belt changesSafety interlock switches on access doorsSafety doors for emergency stop
Specifications
INCH
METRIC
Working widths available
24” / 36” / 43” / 51”
610 / 915 / 1100 / 1300mm
Number of sanding units
1 to 3
1 to 3
Material thickness capacity (standard)
0.118” ~ 4.9”
3~125mm
Sanding belt length available
75” / 103”
1905 / 2620mm
