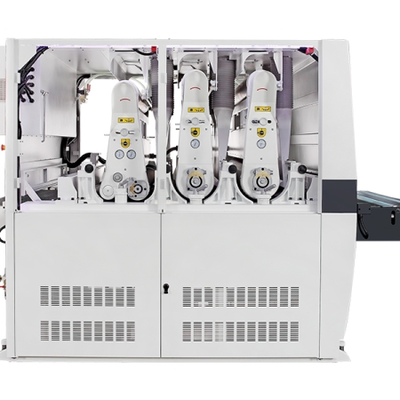

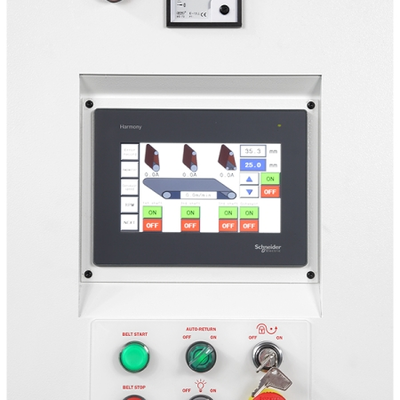

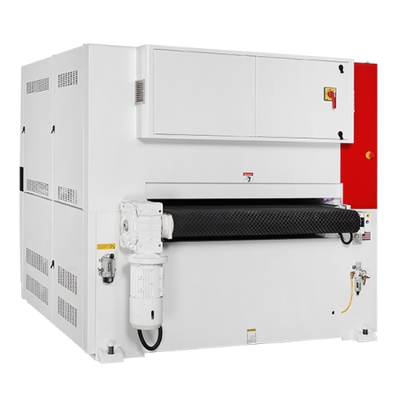

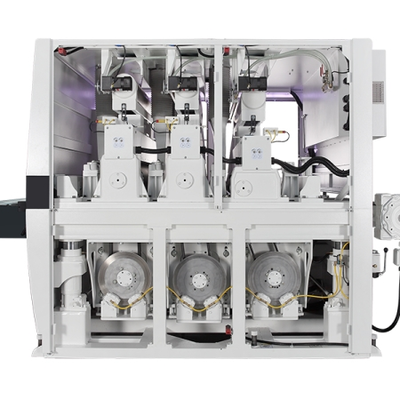

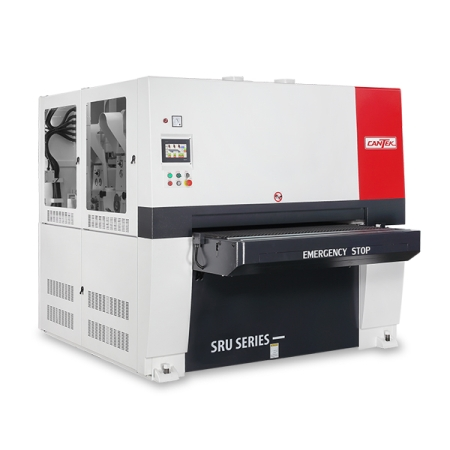

SRU | Cantek | Sanders-Wide Belt
Overview
Description
Whether you need an in-line or stand-alone solution, the SRU series is the ideal choice.The Cantek SRU Series Fixed Table Wide Belt Sander incorporates a fixed table along with upper moving sanding units. This makes it ideal for in-line sanding or for use with conveyors as they do not need to be adjusted when changing material thickness. The digital thickness control will program the sanding units in accurately and precisely each time. The SRU series is available with 1-3 sanding units and in widths of 24”, 36”, 43”, and 51”. Sanding units can be rubber or steel contact drums, or combination sanding units (drum/platen). In additional the machine can be configured with a spiral insert knife cutterhead for a planer sander combination. No matter the application we have the solution to your sanding requirements.Key AdvantagesElectronic belt trackingDisc brakes for the sanding headsHigh quality conveyor belt with superior grip and durabilityQuick release outboard supports for fast belt changesSafety interlock switches on access doorsPneumatic disc brakes for stopping the sanding heads
Specifications
INCH
METRIC
Working widths available
24” / 36” / 43” / 51”
610 / 915 / 1100 / 1300mm
Number of sanding units
1 to 4
1 to 4
Material thickness capacity (standard)
0.079” ~ 4.7”
2~120mm
Sanding belt length available
75” / 103”
1905 / 2620mm
