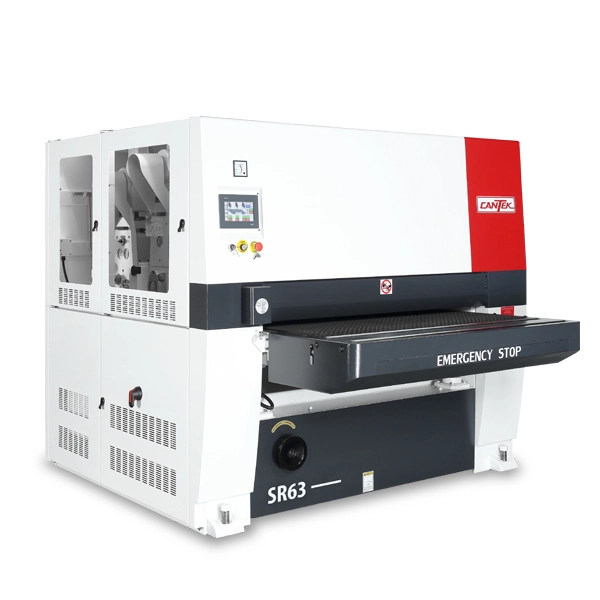

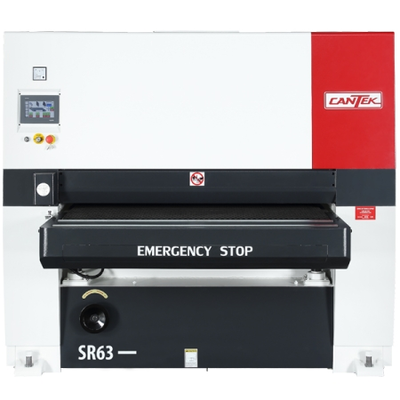

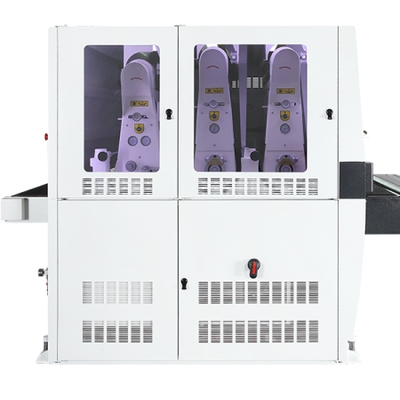

SR63 | Cantek | Sanders-Wide Belt

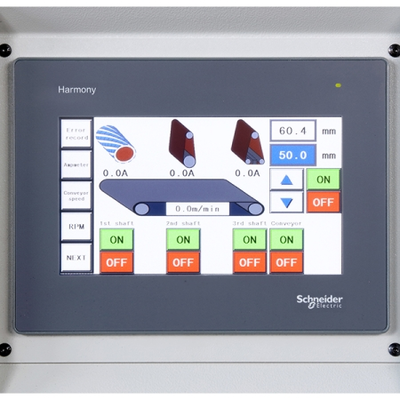

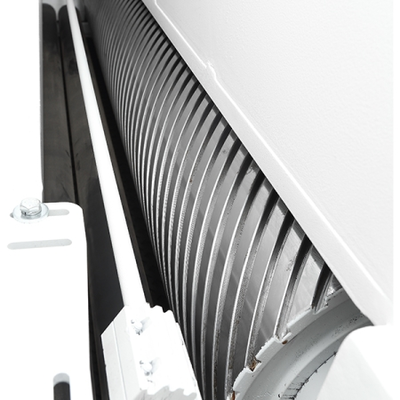

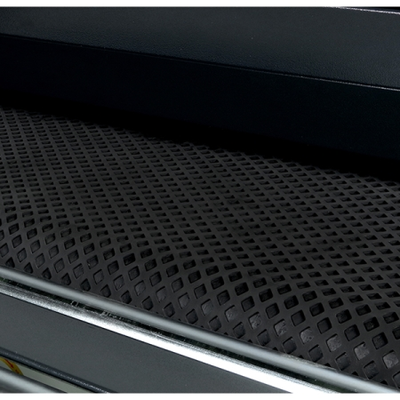

A sander that is not only capable but thrives in multiple-shift environments.The Cantek SR63 Series 63″ wide belt sander combines a robust machine frame with exceptional features, delivering superior sanding quality and reliability. It is available with 2 to 4 sanding units, which can be configured with contact drums made from either steel or rubber. Additionally, there is an option for a combination sanding head featuring a rubber drum and platen. The 75″ long belts provide extended operation between belt changes. The quick-setting digital thickness control enables accurate and automatic table adjustments, ensuring precise sanding results.Key AdvantagesDual rubber-covered pressure rollers on infeed and outfeed for consistent material hold down.High-quality rubber conveyor with automatic pneumatic belt tracking.Extended infeed bed with two table rollers.The table is adjusted using four heavy-duty jackscrews driven by a robust chain system.Automatic caliper thickness setting.Electronic sanding belt tracking.Pneumatic belt tensioning & quick release outboard support for fast belt changes.Automatic disc brakes for the sanding heads allow for fast belt changeover.Safety switches on all access doors.High-quality Schneider electrical controls and top-quality pneumatics

INCH
METRIC
Sanding belt length available
75” / 103”
1905 / 2620mm
Working width
62″
1575 mm
Minimum part length
16.9″
430 mm
Maximum thickness opening
4.7″
120 mm
Feed speed: variable
13 to 59 FPM
4 to 18 m/min
Number of sanding units
2 to 4
2 to 4
