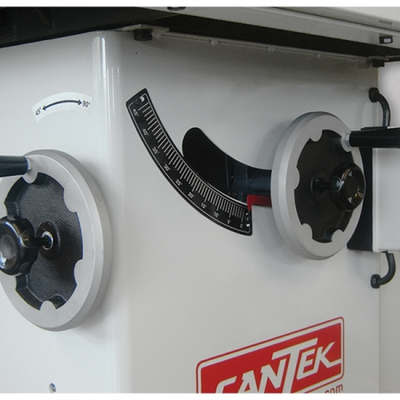

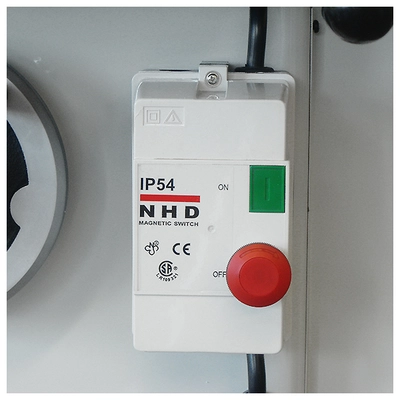

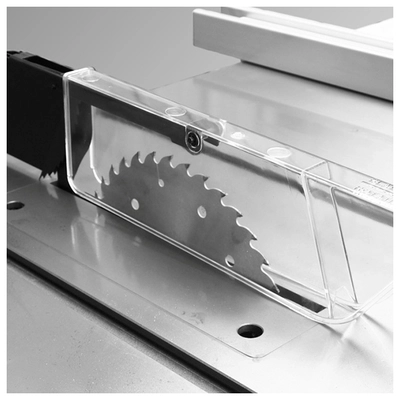

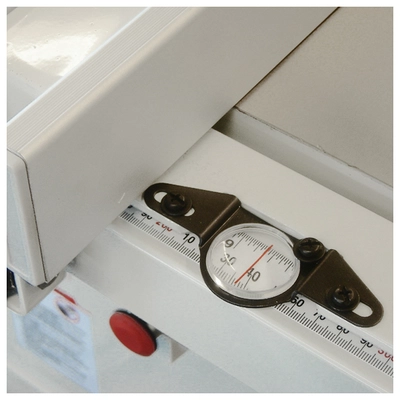

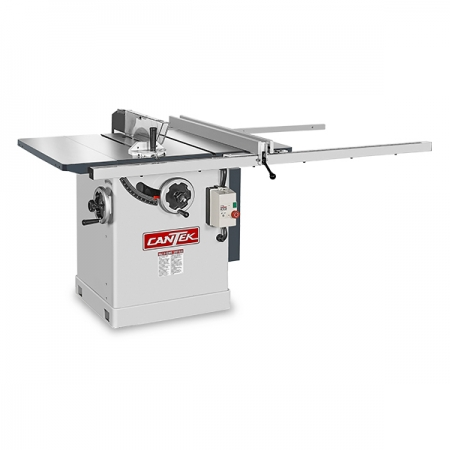

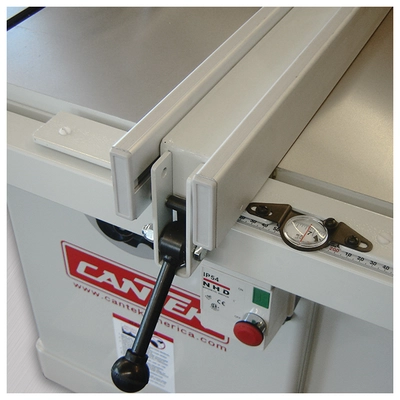

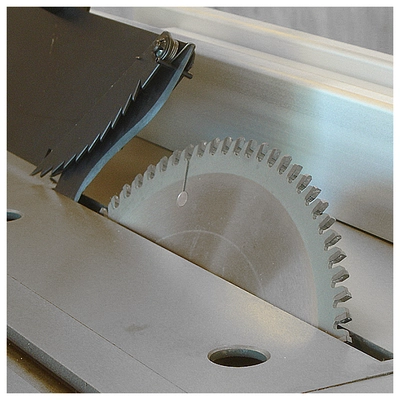

12” 5HP tilting arbor table saw with t-square rip fence. The Cantek TA12 12″ Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 5HP motor it can make the cuts you need effortlessly.Key AdvantagesRugged machine frame construction provides maximum stability and reduced vibrationSaw guard with built in splitter and safety anti-kickback unit1” standard and 5/8” dado arbor included along with appropriate cast iron table insertsHandwheel adjustment for blade height and tilting adjustments which can be locked in placeCSA / UL approved magnetic switch
Saw Blade Diameter
12″
Max. depth of cut at 90°
4″
Max. depth of cut at 45°
2 ¾”
Arbor diameter
1″
Dado arbor diameter
5/8”
Arbor speed
4000 RPM
Table size
48″x30″
Table height
34 ¼”
Max. rip to right of blade
50″
Motor
5HP
Electrical
230/3/60 = 15.2 Full Load Amps
230/1/60 = 28 Full Load Amps
Net weight
572 lbs
Gross weight
704 lbs
Packing size (LxWxH)
32″x36″x42″
