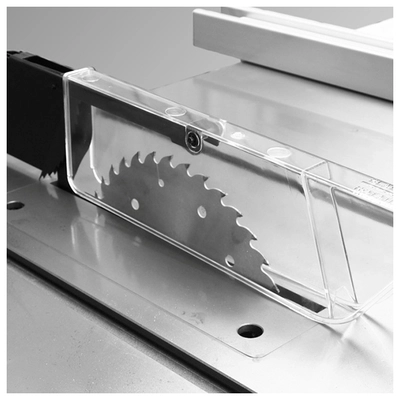

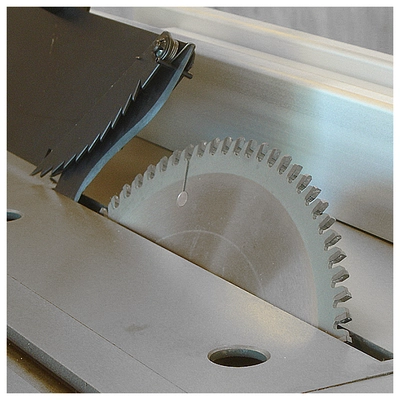

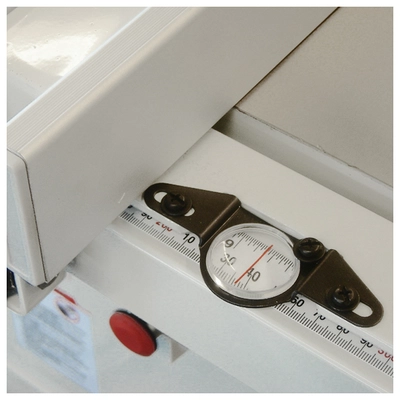

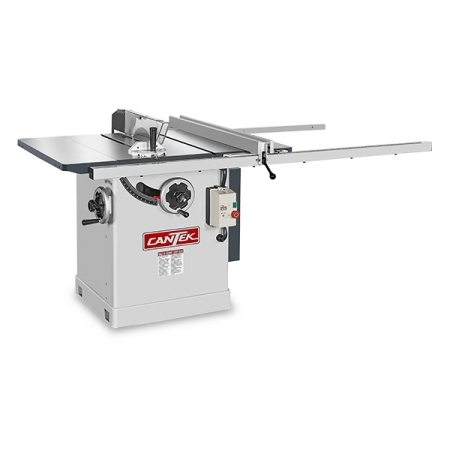

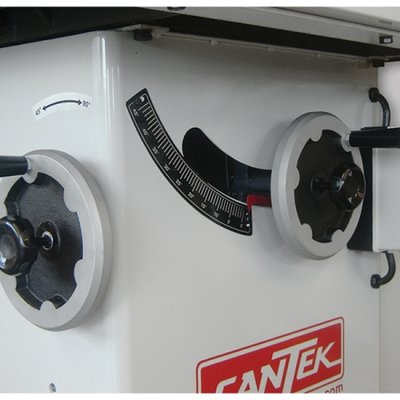

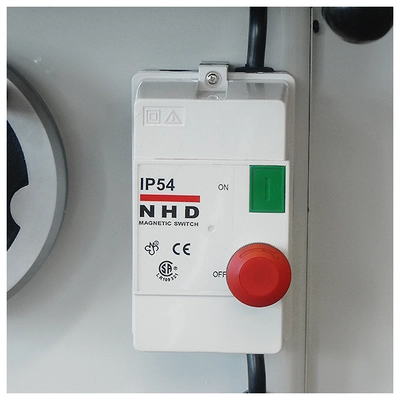

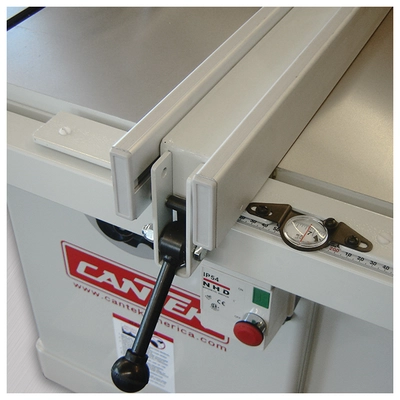

14” 7.5HP tilting arbor table saw with t-square rip fence. The Cantek TA14 14″ Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 7.5 HP motor it can make the cuts you need effortlessly.Key AdvantagesRugged machine frame construction provides maximum stability and reduced vibrationSaw guard with built in splitter and safety anti-kickback unit1” standard and 1” dado arbor included along with appropriate cast iron table insertsHandwheel adjustment for blade height and tilting adjustments which can be locked in placeCSA / UL approved magnetic switch
Saw Blade Diameter
14″
Max. depth of cut at 90°
5″
Max. depth of cut at 45°
3 ½”
Arbor diameter
1″
Dado arbor diameter
1”
Arbor speed
3750 RPM
Table size
48″x38″
Table height
34 ¼”
Max. rip to right of blade
50″
Motor
7.5 HP
Electrical
230/3/60 = 22 Full Load Amps
Net weight
847 lbs
Gross weight
1012 lbs
Packing size (LxWxH)
37″x44″x42″
