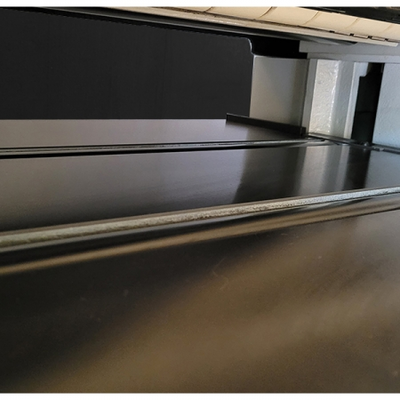

CM626 | Cantek | Planers

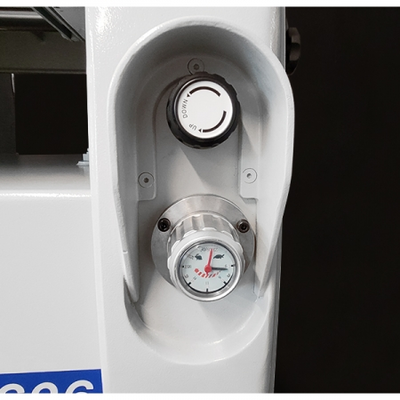

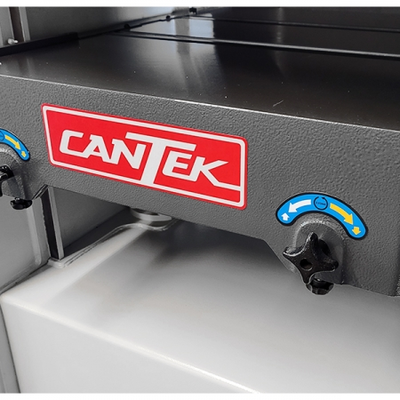

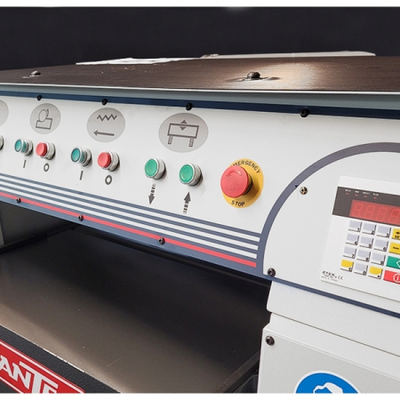

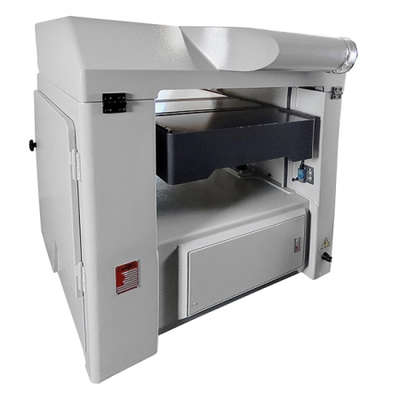

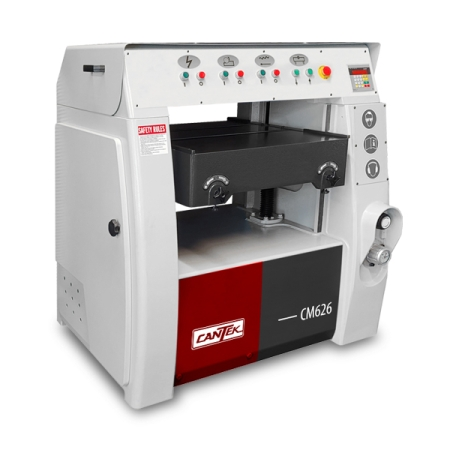

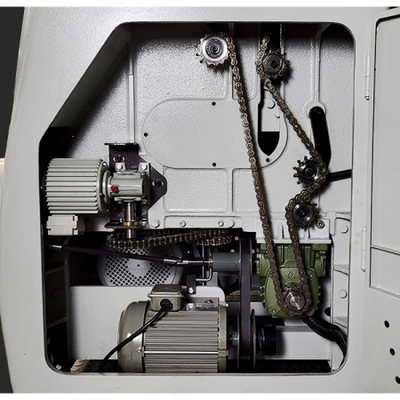

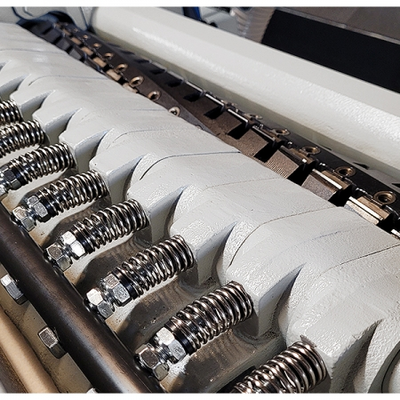

Industrial 26” 20HP spiral insert knife cutterehead thickness planer for the production shop. The Cantek CM626 26″ Planer is a production planer with high horsepower and feed rates. It is equipped with our spiral insert knife cutterhead with two sided replaceable knives which produce a smooth planed finish with maximum cutting depth. With upper and lower driven feed rollers the CM626 can plane even the most difficult to feed material. The powerful 20HP motor can ensure optimum stock removal even on full width boards. With infinitely variable feeds the operator has full control to ensure the optimum feed speed according to your needs. Equipped with motorized movement of the table by convenient digital control the operator can accurately input the desired thickness to achieve accurate results.Key AdvantagesSerrated sectional infeed roll, sectional chip breakers and pressure shoesDriven opposing upper and lower feed rollers for optimum feeding resultsVariable feed speed to 70 FPMAdjustable bed rollers to assist feeding results when requiredAnti-kickback fingers ensure safe operationHeavy duty elevation jack screws and precision machined slides for accurate and smooth table movementSound dampening machine cover conveniently hinges to provide easy access to the planer head and feed assembly6” dust port

Maximum planing width
26″
660mm
Maximum planing thickness
11.8″
300mm
Minimum planing thickness
0.15″ (4mm)
4mm
Maximum depth of cut
0.31″ (8mm)
8mm
Minimum planing length
10.35″ (263mm)
263mm
Table area
35″ x 27″
900 x 690mm
Feed speeds variable
23~98 FPM
7~30m/min
Main motor
20 HP
Feed motor
1 HP
Table motor
1/2 HP
Knives
30 x 12 x 1.5mm (QTY: 100)
Cutterhead diameter
4 ¾”
120mm
Cutterhead RPM
5000 RPM
Top feed rollers
3″ dia.
75mm
Dust hood outlet
6″ dia.
150mm
Machine weight
2200 lbs.
1000 kgs
Machine dimensions (WxDxH)
46″x39″x49″
1167 x 995 x 1246mm
Shipping weight
2420 lbs.
1100 kgs
Shipping dimensions (LxWxH)
44″x52″x58″
1117 x 1320 x 1474mm
Electrical requirements
230/3/60 = 60.4 amps
460/3/60 = 30.2 amps
575/3/60 = 24 amps
