DBS15 | Cantek | Dust Collectors

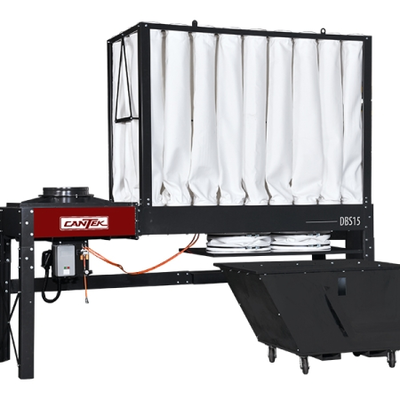

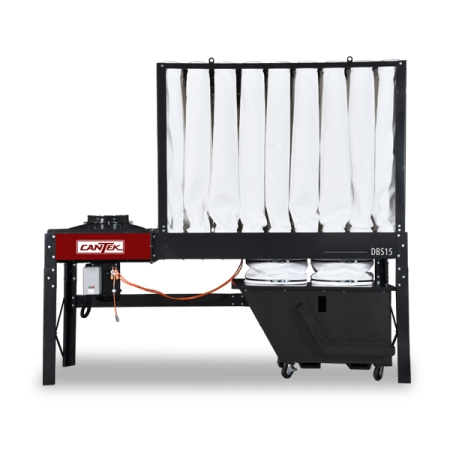

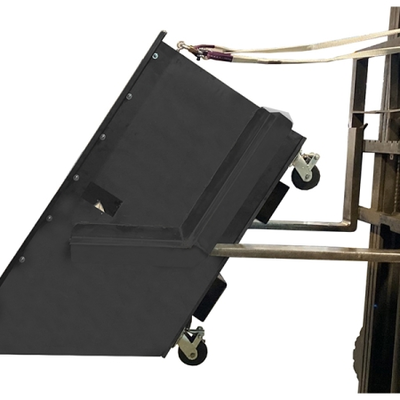

It is time to clear the air and upgrade your dust system to the next level! The Cantek DBS15 15 HP dust collector is a high efficiency indoor dust collectors generating up to 5000 CFM and are available in 10HP (DBS10) or 15HP. Equipped with a low RPM (1750 RPM) blower is designed to run much quieter than other high RPM units. The 1-micron filter bags ensure optimum air filtration and can be manually shaken to for cleaning. The large 168 gallon self dumping collection bin comes on casters and can be conveniently lifted by a fork lift and tilted to dump the wood waste in to your larger waste bin. A pneumatic lever is used to lift the sleeves connecting the system to the dump bin which saves time and effort.Key AdvantagesHigh efficiency 15HP TEFC motorHeavy gauge steel construction for long durabilitySelf dumping bin allows operator to quickly, safely, and conveniently dispose of wood waste16” main inlet diameterPneumatic raising / lowering of dust sleeves to connect system with dump bin for added convenienceHigh efficiency 1-micron filter bags (36 pcs)Manual shaker system for cleaning of filter bagsMagnetic starter includedDust collector comes disassembled

230V 3PH
Blower motor
15 HP
CFM Capacity
5000 CFM @ 10.3” WC
Filter information
1 Micron Filter Bags: 8” dia. x 63” long x 36 pcs
Filtration surface (sq.ft)
394 sq. ft
Inlet diameter
16”
Sound rating (Decibel)
81 dB
Disposal capacity
168 gallons
Machine dimensions (LxWxH)
135” x 42.5” x 122”
Shipping dimensions
Blower = 46” x 43” x 37” @ 748 lbs
Frame / Bin / Accessories = 99” x 46” x 49” @ 1056 lbs
Electrical information
230/3/60 @ 42 amps
