CBS10 | Cantek | Dust Collectors

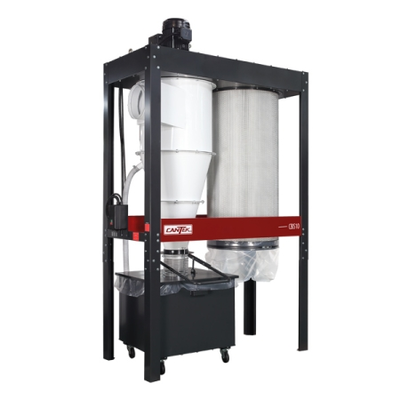

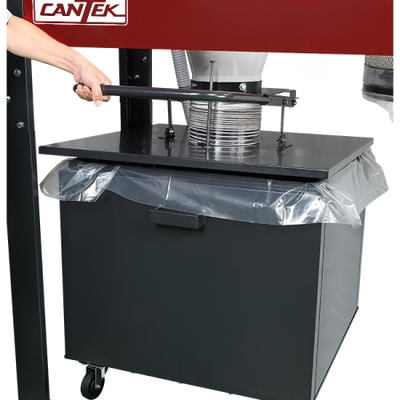

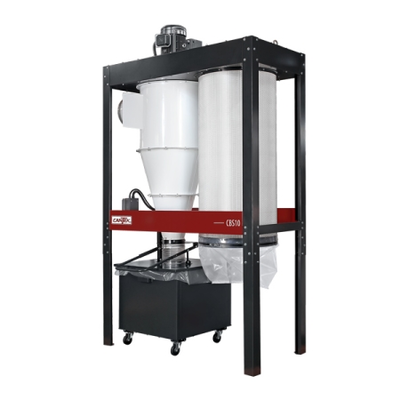

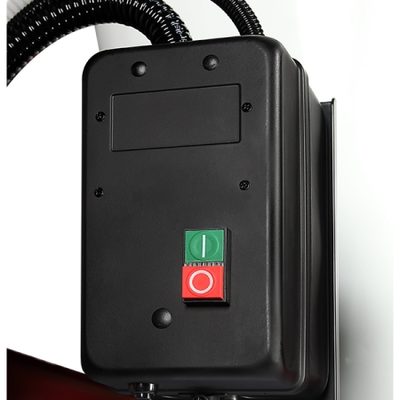

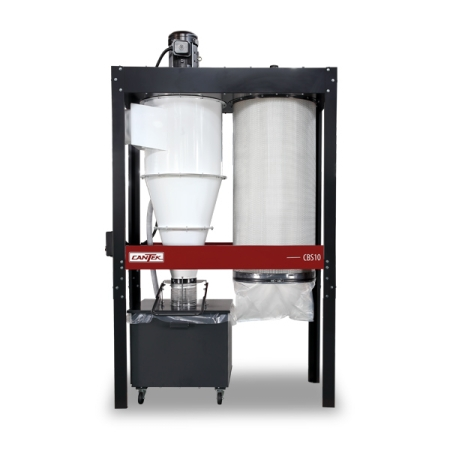

It is time to clear the air and upgrade your dust system to the next level! The Cantek CBS10 10HP Cyclone Dust Collector excels at efficiently removing both coarse and fine wood dust particles from your machinery. As dust is drawn into the system by a high-efficiency fan, it enters a cylindrical chamber where it circulates in a cyclonic pattern. Heavier coarse chips settle into a collection bin below, while fine dust proceeds through a HEPA filter. This meticulous filtration process ensures that only clean air is reintroduced into your workspace, promoting a healthier, dust-free environment for optimal productivity and breathable air.Key AdvantagesConvenient quick release connection for removing the coarse dust bin which is outfitted with castersBin is lined with plastic bag for simple and clean removal of dustHEPA filter is equipped with an automaticHEPA Filter is equipped with a quick release system to remove and dispose of fine dust particlesEquipped with magnetic switchFast and simple machine assembly

230V 3PH
Blower motor
10 HP
CFM Capacity
4030 CFM
Fan diameter
18.5”
Dust port dimensions
12”
Auto-cleaning motor
0.03 HP
HEPA filer size
29.5” x 59”
Dust drum capacity
115 gallons
Sound rating
82~85 dB
Machine electrics
230/3/60 (29 amps)
Machine dimensions
78.4” x 37” x 127.5”
Machine weight
1276 lbs
Shipping dimensions
77” x 40 ½” x 102”
Shipping weight
1617 lbs
