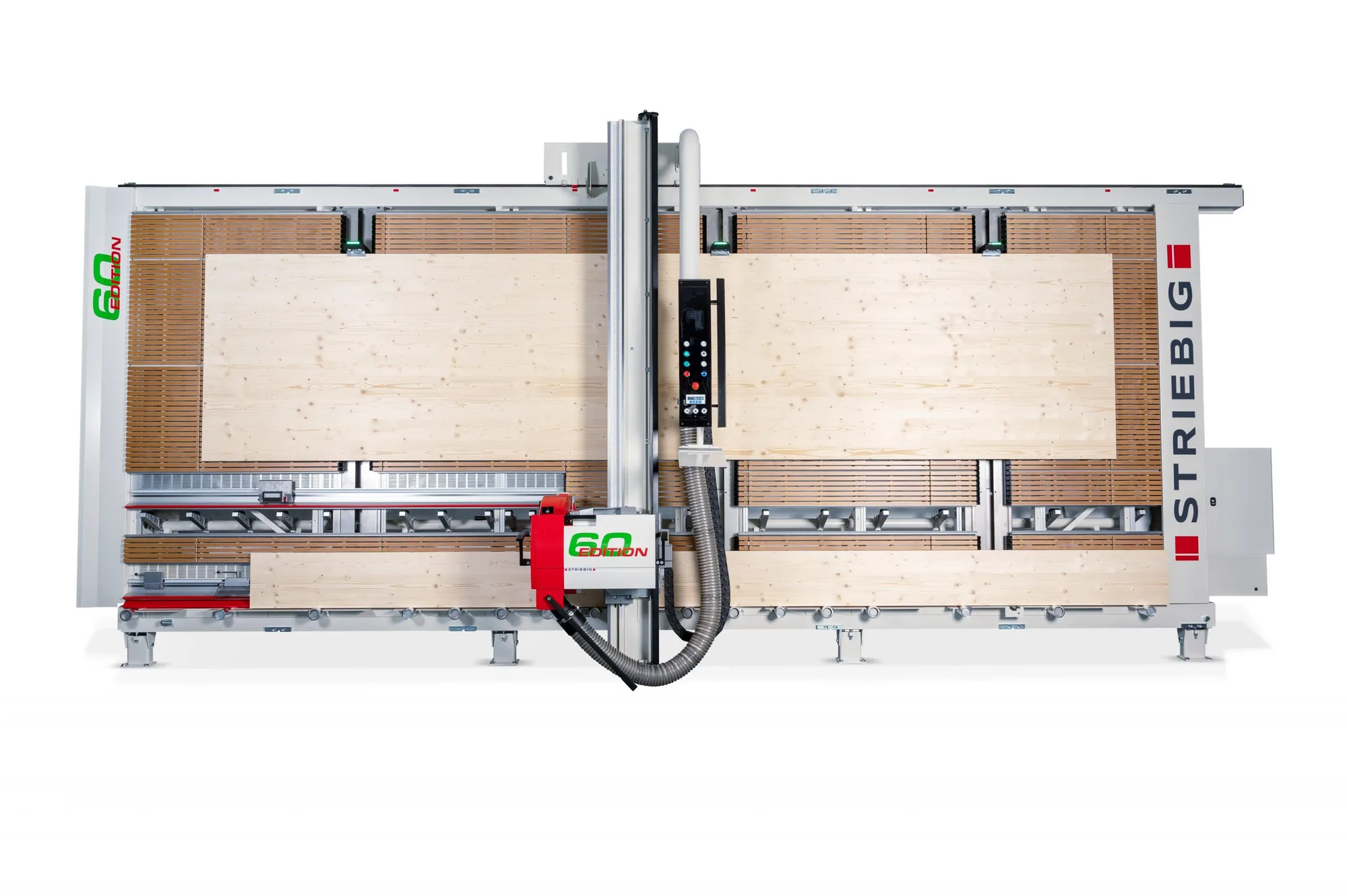

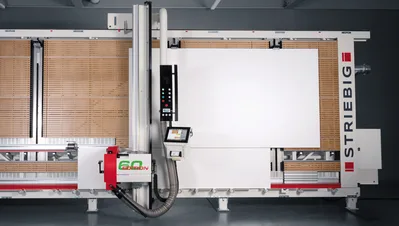

The NEW Edition 60 panel saw is a full-size, fully-loaded Standard S machine PLUS panel lifters (lowering units) that allow for easy one-person panel processing. Though the saw travel is manual, there is little or no need to remove or reload parts of a sheet in order to cut them to finish size. You process the sheet from the bottom. Trim cut the bottom of the sheet, cut a strip, then process that strip into finish cut parts while the rest of the sheet suspended by the lifters. After that strip is finished, cut the next strip and so on…
7.5HP 220/440V 3PH
Cut capacities: 17’ 4”L, 7’-5/8”H crosscut, 6’ 10-5/8”H trim; Depth 3-1/8” (80 mm) overall; 2-3/8” (60mm) using panel lifters
Weight (approx.): 1650 lbs. (net), 2200 lbs. (gross)
Main Saw Blade: 300 mm dia., 30 mm bore
Electrical: 3 phase, 220V or 440V
Dust collection: 1000 cfm, 140 mm connection; choice of side
Floor Space: 17’ 10”L, 8’ 3”H, 5’D (free standing) (4’ 5” wall-mounted)
