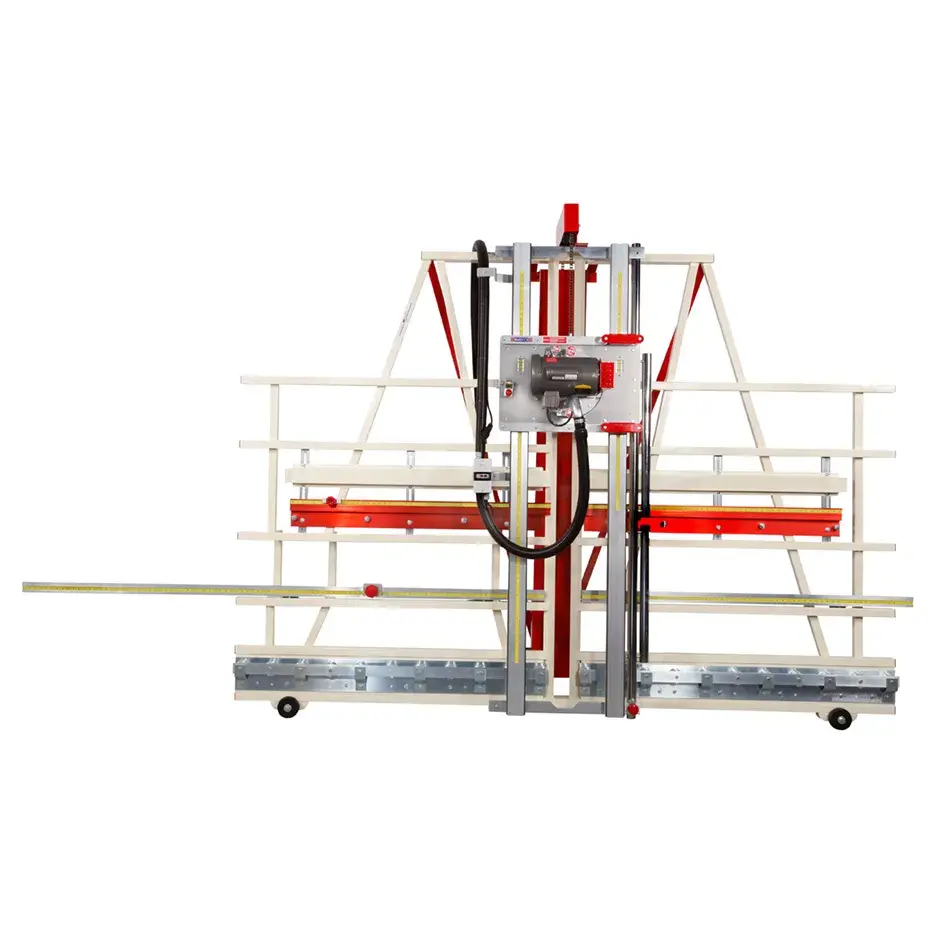

7400M,7400XL | Safety Speed | Panel Saws

Continuous usage panel processing done the easy way. The 7400M panel saw features a 10′ frame, and the 7400XL features a 13′ frame. There are no other differences between these two machines. Standard Equipment:

7400SPECS Weight|950 lbs
Dimensions|124 × 98 × 48 in
Max. Crosscut|64″/1625mm
Max. Rip Cut|Unlimited
Cut Depth|2 ⅛”/55mm
Cut Accuracy|.005″/.125mm
Frame Length|120″/3050mm
Daily Usage|Continuous (8+ Hours)
Rollers|22
Saw Blade Diameter|8″/210mm
Motor|2HP, 1~ 230V, 11.5 AMPS, 3HP, 3~ 230V, 7.6 AMPS, 3HP, 3~ 460V, 3.8 AMPS
Saw Blade Revolutions Per Minute|3450 RPM
Power supply options|Single phase or three phase power
7400XLSPECS Weight|1050 lbs
Dimensions|160 × 98 × 48 in
Max. Crosscut|64″/1625mm
Max. Rip Cut|Unlimited
Cut Depth|2 ⅛”/55mm
Cut Accuracy|.005″/.125mm
Frame Length|156″/3050mm
Daily Usage|Continuous (8+ Hours)
Rollers|28
Saw Blade Diameter|8″/210mm
Motor|2HP, 1~ 230V, 11.5 AMPS, 3HP, 3~ 230V, 7.6 AMPS, 3HP, 3~ 460V, 3.8 AMPS
