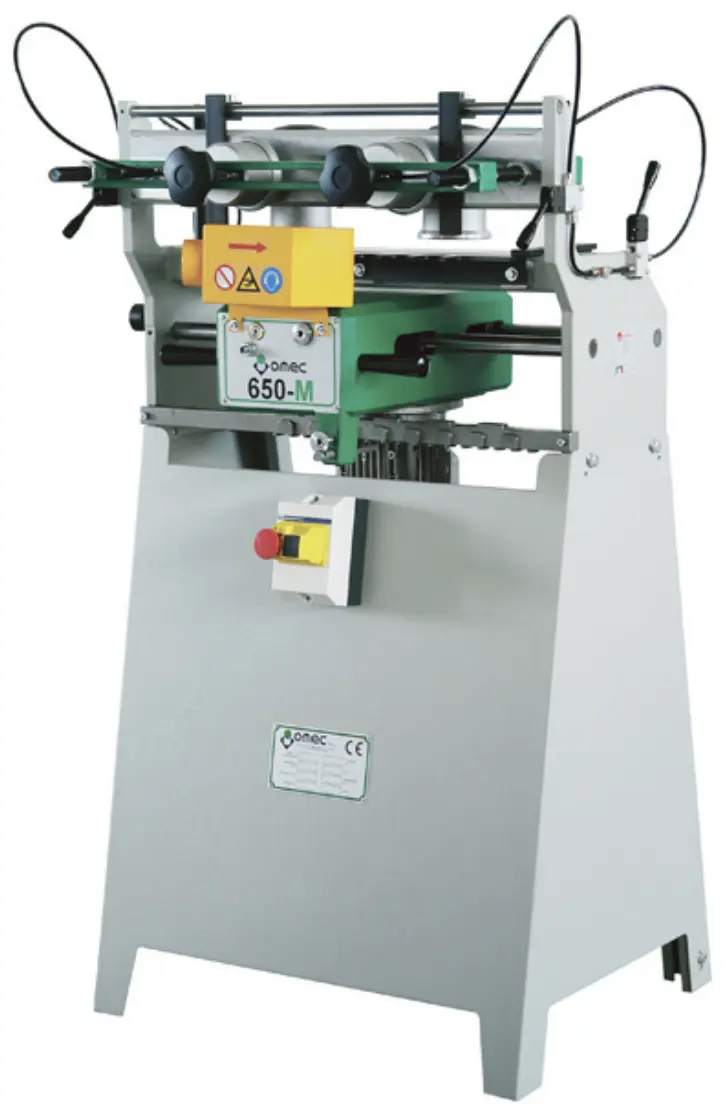

650M | Omec | Dovetailers

Omec 650M uses a 1 HP motor, linear bearings, adjustable eccentric bit, and comes with 4 templates standard. Clamping is done by four pneumatic cylinders for easier loading and unloading. The 16.5″ capacity enables you to make deeper drawers and chip breakers can be installed on the fences to minimize blowout on more difficult materials.

1HP
On board machine installed power|1 HP
Number of spindles|1
Spindle revolutions|16,500 rpm
Center to center of dovetail|0.98″, 1.57”, 1.97”, 3.15” (25mm-40mm-50mm-80mm)
Machine net weight|286 lbs/130 kg
Machine packaged weight|330 lbs/150 kg
Overall dimensions|31.5″ x 28.35″ x 51.97″ (80cm x 72cm x 132cm)
Packing dimensions|35.43″ x 29.53″ x 55.12″ (90cm x 75cm x 140cm) DIMENSIONAL LIMITS OF WORKPIECES
Minimum|Maximum
Length|7.87″(200mm)|59.06″(1500mm)
Width|2.36″(60mm)|16.54″(420mm)
Indent Height|0.31″(8mm)|0.71″(18mm)
Front Thickness|0.28″(7mm)2.36″(60mm)
Side Thickness|0.28″(7mm)|1.18″(30mm)
