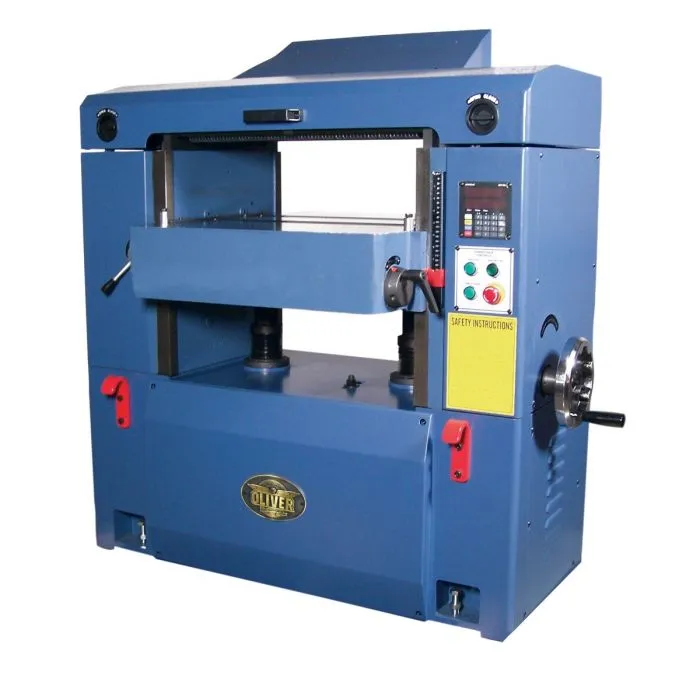

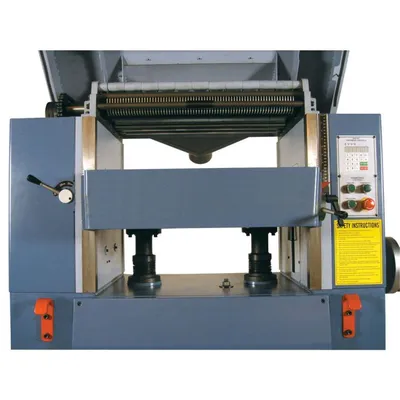

4470B | Oliver | Planers

240V 1PH 10HP 43AMPS
Stock No. (10HP, 1Ph, Byrd)|4470.101B
Stock No. (15HP, 3Ph, Byrd)|4470.102B
Maximum Stock Width|25”
Maximum Depth of Cut|1/4” for 0” – 11-3/4” and 1/8” for 11-3/4” – 25″
Maximum Stock Thickness|9-1/4”
Minimum Stock Thickness|1/8” Manual 15/64” Automatic
Minimum Stock Length |10″
Dust Port Diameter|5″
Minimum CFM Required|900 CFM
Infeed Roller Diameter|3″
Steel Outfeed Roller Diameter|3″ (x2)
Feed Speeds|20, 25 and 30 FPM
Bed Rollers|2, Adjustable
Table Size|26” x 32”
Cutterhead Diameter|3-3/8”
Cutterhead Speed|4,800 RPM
Number of Knives Byrd|125
Footprint|47-1/2” L x 21” W
Table Support|2-Column
Motor 1Ph|10HP, 240V Only (43 Amps)
Motor 3Ph|15HP, 240V/440V* Prewired 220V (38/19 Amps)
Overall Dimensions|46”L x 23”W x 56”H
Net Weight|1,732 lbs.
Gross Weight|1,850 lbs
