S-500 | Nederman | Dust Collectors

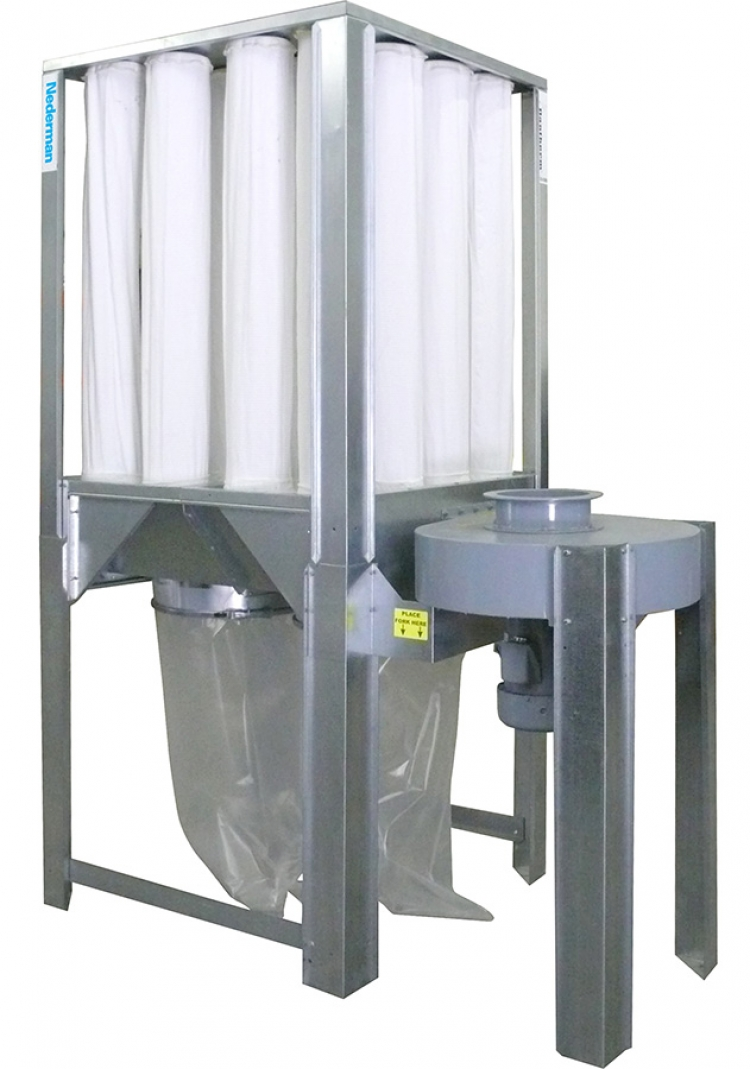

The S-Series S-500 is an enclosureless, silent and simple to set up dust collector suitable for wood and sawdust applications (furniture, cabinetry, windows, doors, flooring, particle board, MDF, building materials, marine, and sawmills) and for general dust collection where feasible. It is designed for indoor installation compliant with NFPA combustible dust regulations.

5HP 208-230/460V 3PH or 1PH 230V
Power Voltage|(V)208 1PH or 208-230/460 3PH
Frequency (Hz)|60
Filter type|Bag
Number of filter elements|16
Filter material|Superbag
Weight (lbs)|600
Power (Hp)|5.0 (3.75 Kw)
Note|3000 CFM at 5.0″ Wg
