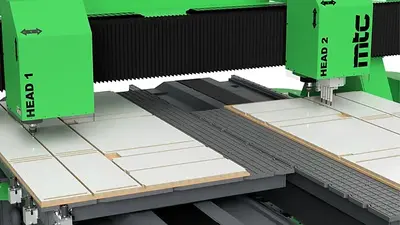

Standard Construction: · 35mm Linear Guide Rails· Ball Type Linear Guide Bearings· Helical Rack & Pinion on X & Y Axes· Ballscrew Z axis· 5,700 IPM Travel Speeds· 1,600 IPM Cutting Speeds High Rigidity Constuction:· 45mm Linear Guide Rails· Roller Type Linear Guide Bearings· Pre-Loaded Ballscrews on all Axes· 2,500 IPM Travel Speeds· 1,600 IPM Cutting Speeds· Milling Spindle Options· Ready for Ferrous MaterialsMAKE YOURS PURPOSE BUILT· Up to 4 Cutting Heads· Automatic Tool Change Spindles· Drill Units· 5-Axis Machining (RTCP capable)· Multiple Table Sizes to choose from· Single Table or Twin Table· Left-to-Right or Front-to-Back OrientationFeatures· Absolute Encoders· MPG (Hand-Wheel)· MPG Simulation with “Play & Rewind”· Spoil-Board Thickness Management· Vacuum Matrix Tables· Pendulum Processing· On-Spindle Tool Changers· Programmable Head Positioning
Standard Bridge
· 14” of Clearance Under the Bridge
· 16” of Z Axis Travel with Vertical Spindle
· 8″ of Z Axis Travel with 5-Axis Spindle
Mid-Mast Bridge
· 31” of Clearance Under the Bridge
· 31” of Z Axis Travel with Vertical Spindle
· 21″ of Z Axis Travel with 5-Axis Spindle
High-Mast Bridge
· 48” of Clearance Under the Bridge
· 48” of Z Axis · Travel with Vertical Spindle
· 38″ of Z Axis Travel with 5-Axis Spindle
Machine Weights
· 508-12,000 lbs
· 1205TT – 16,000 lbs
· 1008TT – 17,000 lbs
