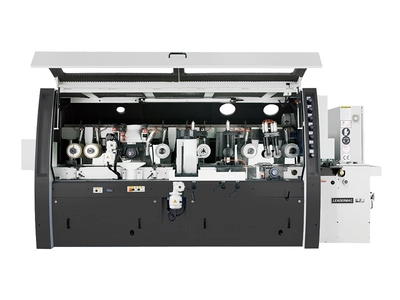

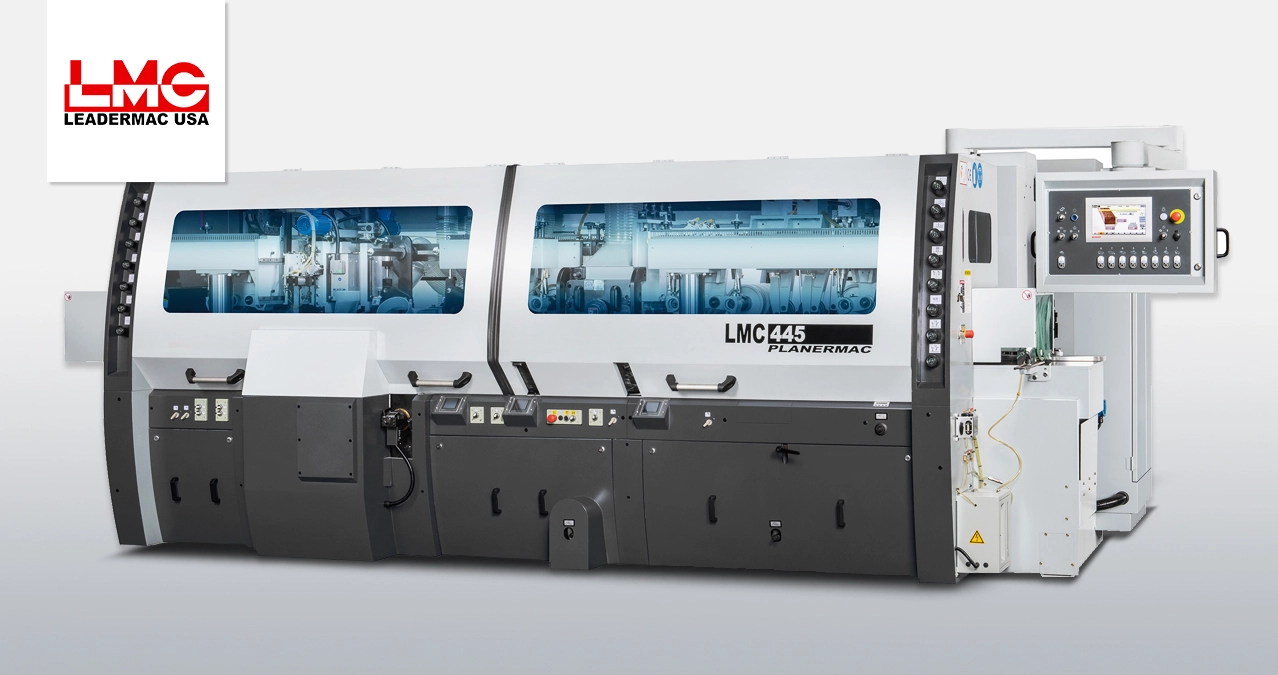

Heavy-duty, wide four-sided planer for wide and thick beams, wide plank flooring, and standard moulding applications, all in one machine. The Leadermac Planermac Moulder Series has been designed very heavily to run large wide and thick beams, wide planks, right down to standard-sized mouldings and planing. Designed to handle large beams at regular feed rates, it can also produce products up to 200 fpm with optional jointers. The feed system is designed to handle rough, heavy and wide material, with the ability to handle down to smaller sized products and mouldings.
Working widths|0.6″ to 18″, 20″, 24″, and 28″ optional
Working thickness|0.5″ to 7.1″, 8”, 12” or 14”optional
Number of spindles|1 to 11
Spindle RPM|5500, 6000, or 7200 RPM

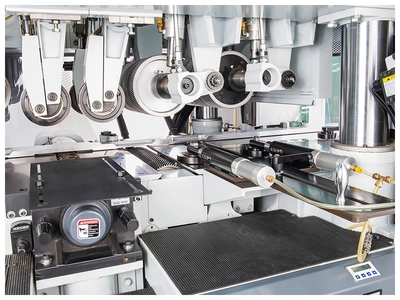

Standard feed speed|20 to 80 or up to 200 fpm optional

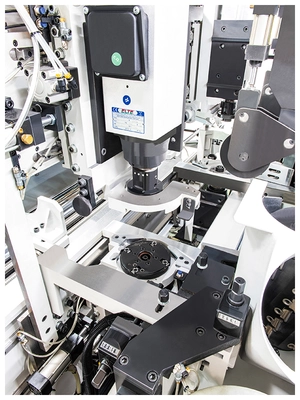

Axial adjustment of vertical spindles|1.6″ (standard)
Axial adjustment of horizontal spindles|.8″ (standard)
Infeed bed length|55″ (1.4m), 78″ (2m) 98″, 120″ available
