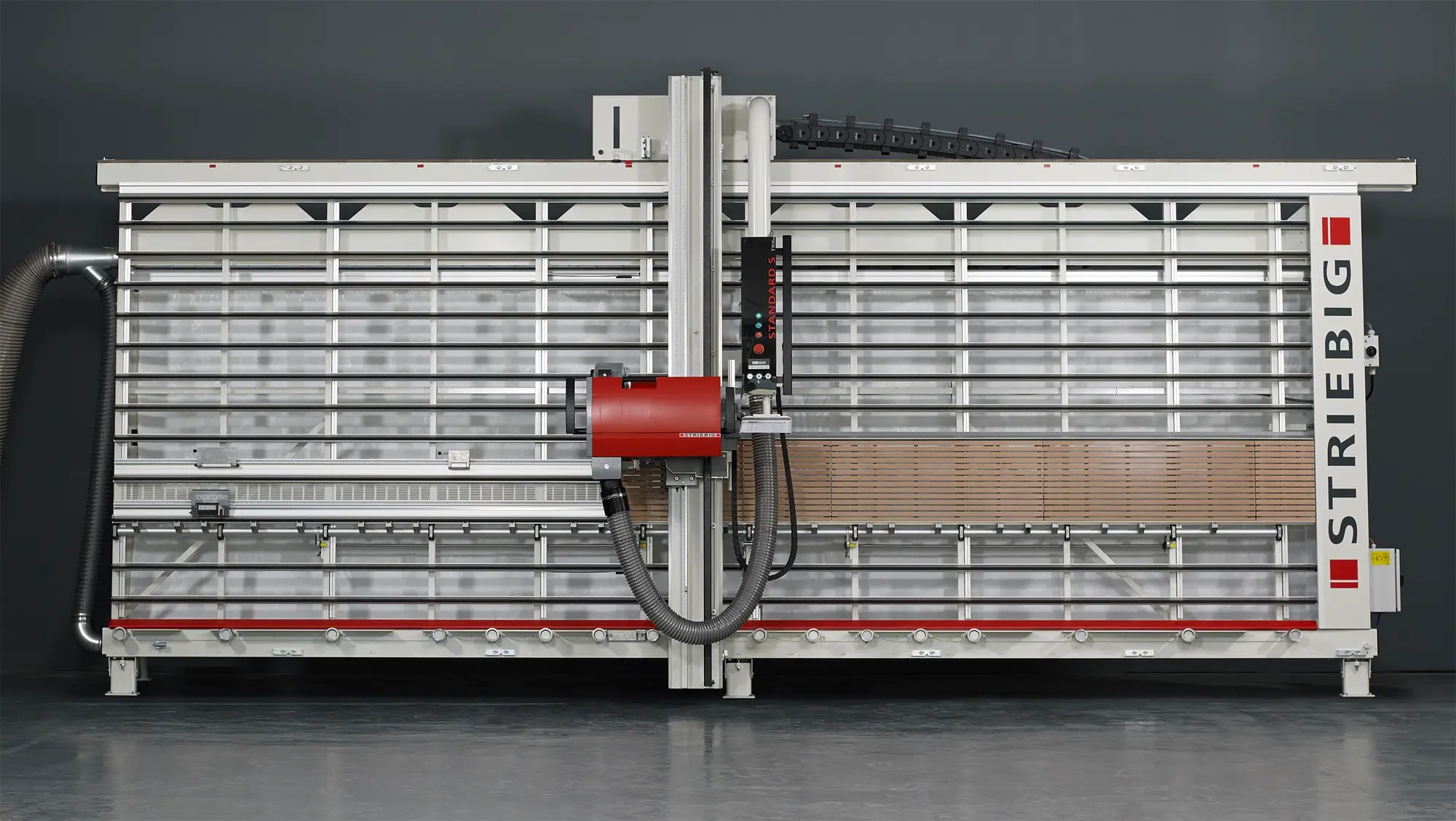

The Striebig STANDARD has been setting the standard in the universal class for vertical saws for many years. It saws a wide variety of panel materials with precision, accuracy and perfect edges every time. Absolute parallelism between the upper guide rail, the central support and roller support will ensure precise cutting over many years.
7.5HP 220/440V 3PH
Cut capacities: 14’1″ W (17’4″ optional) x 5’6″ H; depth 3-1/8″ (80mm)
Weight (approx.): 1650 lbs. (net), 2200 lbs. (gross)
Main Saw Blade: 300 mm dia., 30 mm bore
Electrical: 3 phase, 220V or 440V
Dust collection: 1000 cfm, 140 mm connection; choice of side
Floor Space: 18′ 0″L (21’3″ opt.) x 5’1″D x 8’7″H (machine only)
