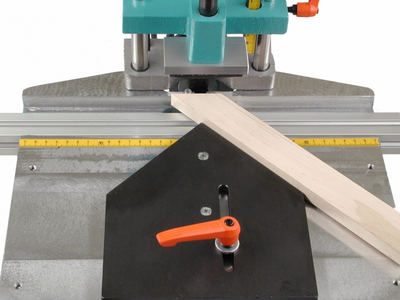

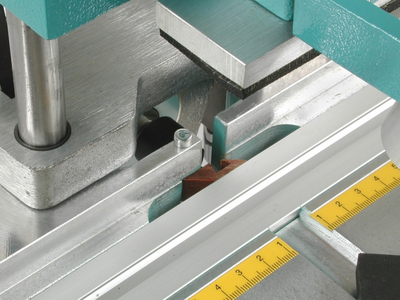

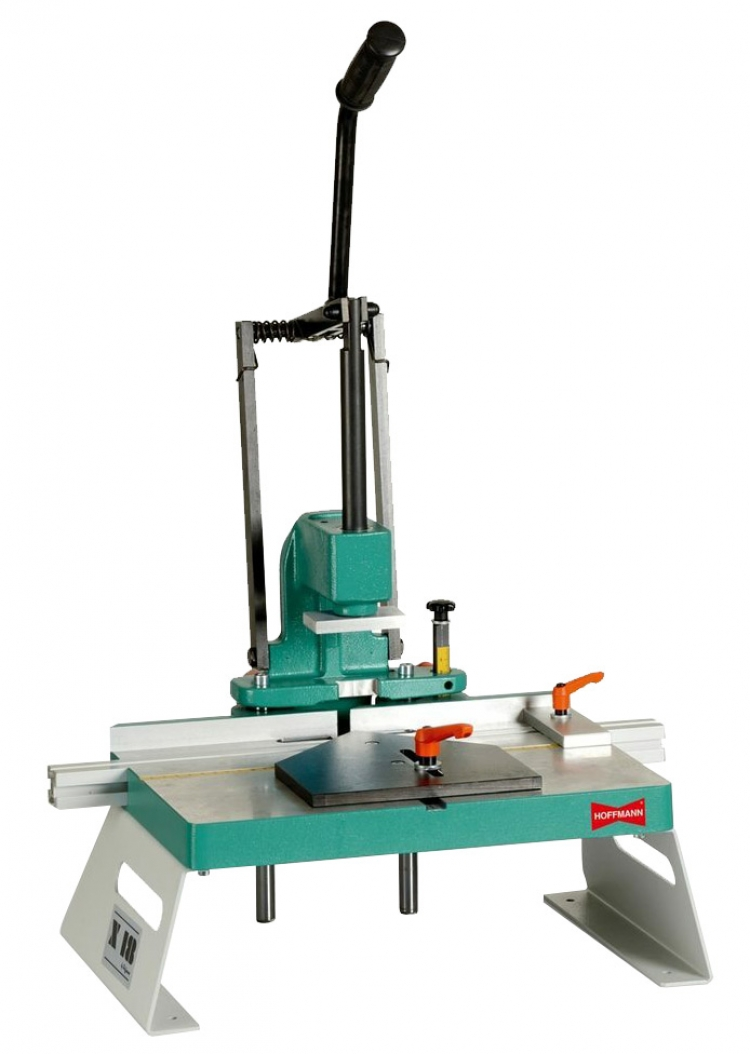

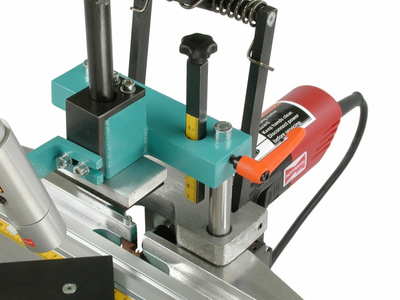

The X18 manual dovetail routing machine is a light weight, more portable model with an open base design. This machine does not require a compressed air supply. Due to its limited routing height of 2 1/4” this machine is not suitable for joining most floater frames and shadow box moulding. The keyway location is adjusted by positioning the guided center fence plate on the machine table; the keyway length (routing height) is adjusted by setting a height-stop rod to the desired setting.
120V 4.4AMPS
Power Supply 120 volts – 4.4 Amps
Motor 530 Watt motor
Motor speed 29,000 rpm at idle
Collet size 1/4”
Motor carriage guides 16mm diameter guide rods, precision ground
Operation manual– dual action design
Max. height routing 2 1/4” – 57mm / moulding 3 1/2” – 89mm
Installed router bit W-2, solid carbide
Available router bits W-0, W-1, W-2 and W-3
Dimensions W/D/H 19 3/4” x 21 1/4” x 30 1/4”
Weight 38 lbs.
