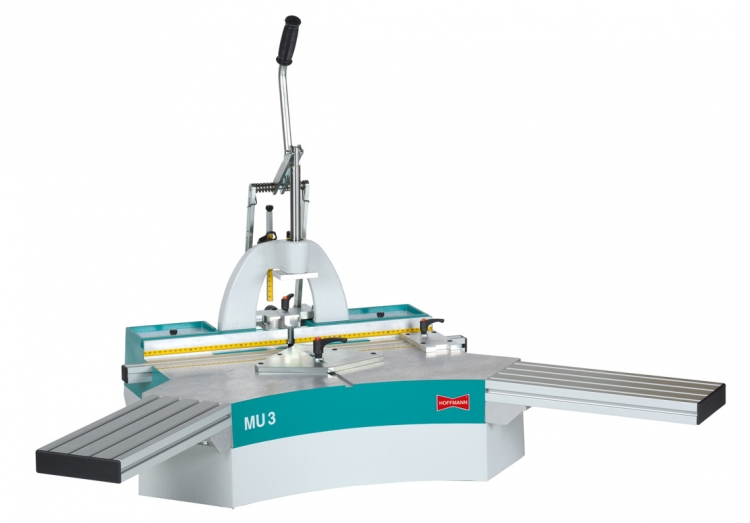

MU-3 | Hoffmann | Dovetailers

Entry level, manually operated dovetail routing machine to rout a single dovetail keyway with each machining cycle. For Dovetail Key sizes W-0, W-1, W-2 and W-3.

120V 4.4AMPS
Power Supply 120 volts – 7.4 Amps
Motor 885 Watt motor with double front bearing
Motor speed 35,000 rpm at idle
Collet size 1/4”
Motor carriage guides 20mm diameter guide rods, precision ground
Operation manual– dual action design
Max. height routing 3 3/8” – 85mm / moulding 5 1/8” – 130mm
Dust collection port 2” – 50mm diameter
Installed router bit W-2, solid carbide
Available router bits W-0, W-1, W-2, W-3 (W-4 with optional larger motor)
Dimensions W/D/H 29 1/8” x 25 5/8” x 32 3/4” (without optional table extensions)
Weight 70.4 lbs.
