C251 | Cantek | Sanders-Wide Belt

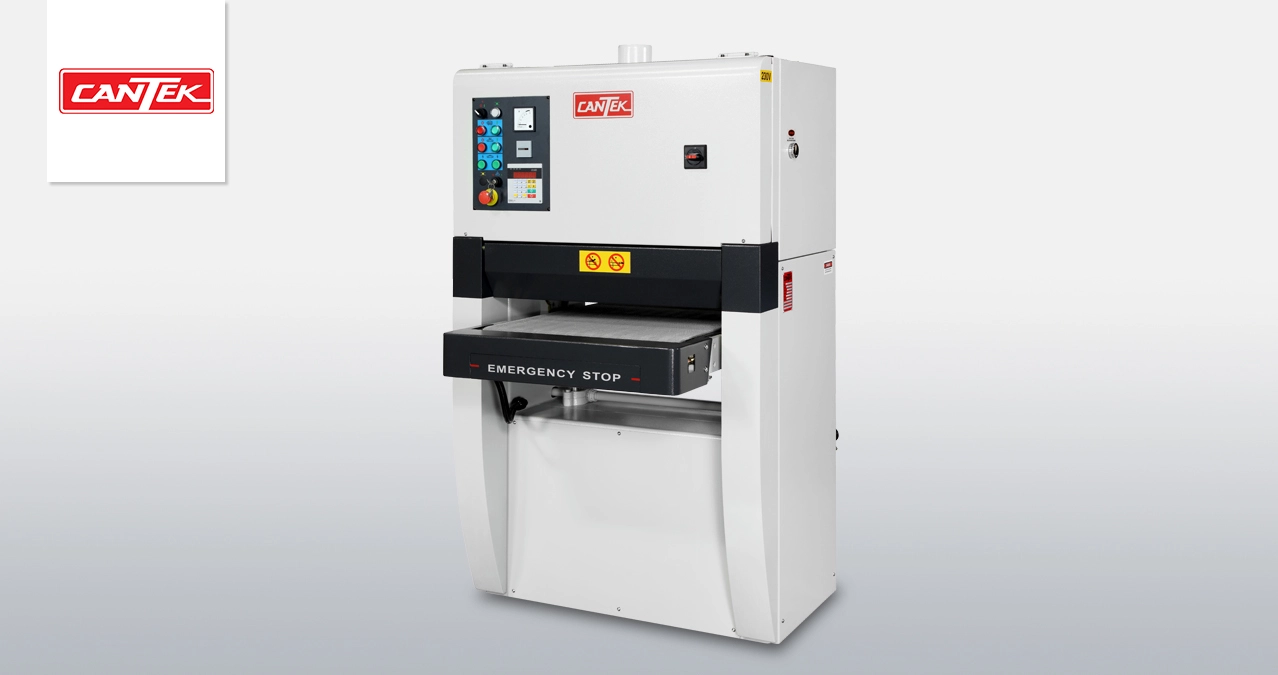

The Cantek C251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding.  The robust sanding unit and heavy-duty frame ensures optimum sanding results.  Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

11HP 230V
Abrasive belt size 25” x 60”
Main motor 10HP
Feed motor 1 HP

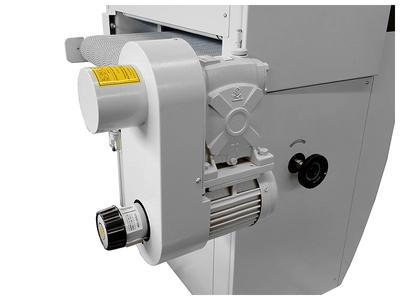

Table rise/fall motor ½ HP
Maximum width stock 24”
Minimum part length 13”
Maximum thickness opening 4”
Feed speed: variable 13 to 52 FPM
Passline height 33” – 38”
Infeed table 11-1/2”
Dust outlet 1 @ 4”
Compressed air usage 2 CFM @ 90 PSI
Net weight 1452 lbs
Machine dimensions 53” x 50” x 63”
Shipping weight 1584 lbs
