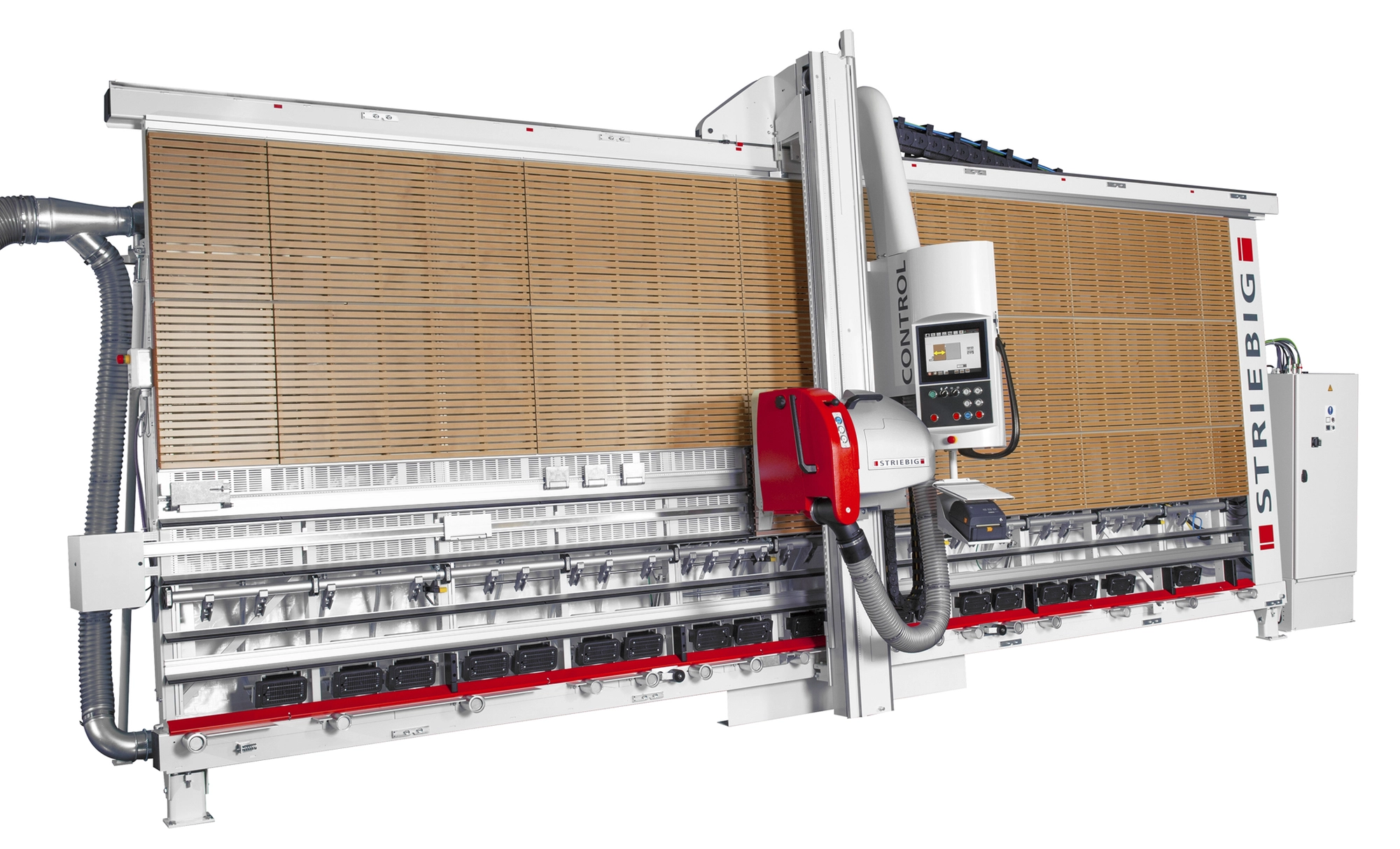

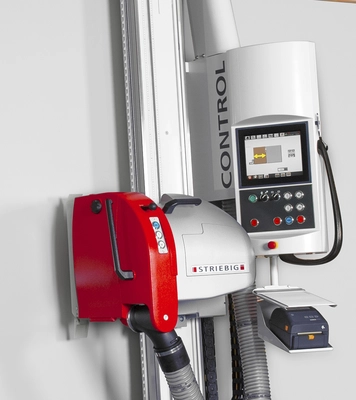

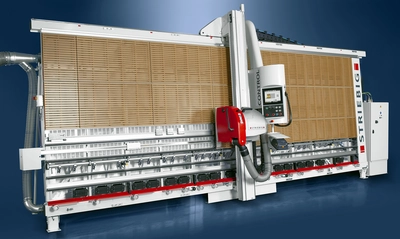

CONTROL | Striebig | Panel Saws

The Control has a higher degree of automation, and is equipped with additional options. Just as the Evolution is the world’s most advanced manual panel saw, the Striebig Control is the world’s most advanced (non-CNC) automatic traveling vertical panel saw. Take all of the features and options of the Evolution; the touch screen, the full wood back support, digital measuring, the automated locking and pivoting of the saw head, locking of the saw beam and rollers, etc., and add automatic travel of the saw in both axes. But it is not just the convenience of the operator not having to move the saw manually! It will cut more parts by being more productive.

7.5HP 220/440V 3PH
Cut capacities*:14’ 1”L, 5’ 6”Hvert, 5’ ½” Hhorz; Depth 3-1/8” (80 mm)
*larger standard frame sizes with cut capacities to 7’4” x 17’4” and special frame sizes with cut capacities up to 10’ x 50’ available upon request
Machine dimensions: 18’ 5”L, 8’ 1”H, 4’ 11” D (free-standing); plus 2’W x 1’D x 4’8”H control box at right end of machine
Weight: 1950 lbs., (approx. 2980 lbs. shipping)
Electrical requirements:3-phase, 220V/20 Amp or 440V/10 Amp service; right side of frame3-phase, 220V, 30A min. circuit
Dust collection: 1000cfm (min), 140mm dia. connection
Compressed Air: 100 psi, 3 cfm (air dryer strongly recommended)
