F12 | Omec | Dovetailers

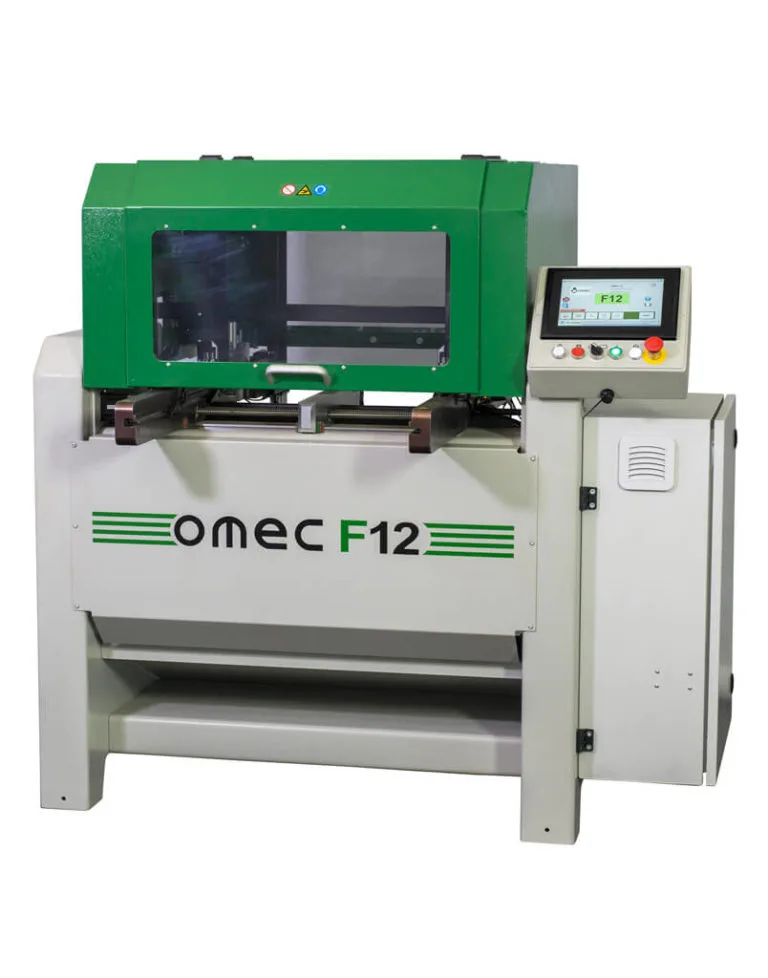

The OMEC F12 5-axes automatic milling machine with numeric control has been designed to create different type of machining for the wooden light packaging industry. The F12 model is equipped with an electrical- spindle complete with cutter to cut bottle racks, holes, slots, internal partitions , barrels ‘supports and chopping boards . The machine works pieces in packs. The pieces are fed out of the in feed magazine to the blocking zone, then to the milling cycle, unblocked, then fed to out feed magazine hopper, completely automatically.

3.33HP
Power installed of machine|3.33 HP
Working pressure|0.7 Mpascal
Number of spindles|1
Spindle revolutions|21,000
Distance between bottle holders|Variable
Piece production|1000/h
Machine weight|1,254 lbs/570 kg
Packed machine weight|1,474 lbs/670 kg
Overall dimensions|63″ x 42.52″ x 57.87″ (160cm x 108cm x 147cm)
Packing dimensions|66.14″ x 45.69”” x 67″ (168cm x 116cm x 170cm)
