S371 | Cantek | Sanders-Wide Belt
Overview
Description

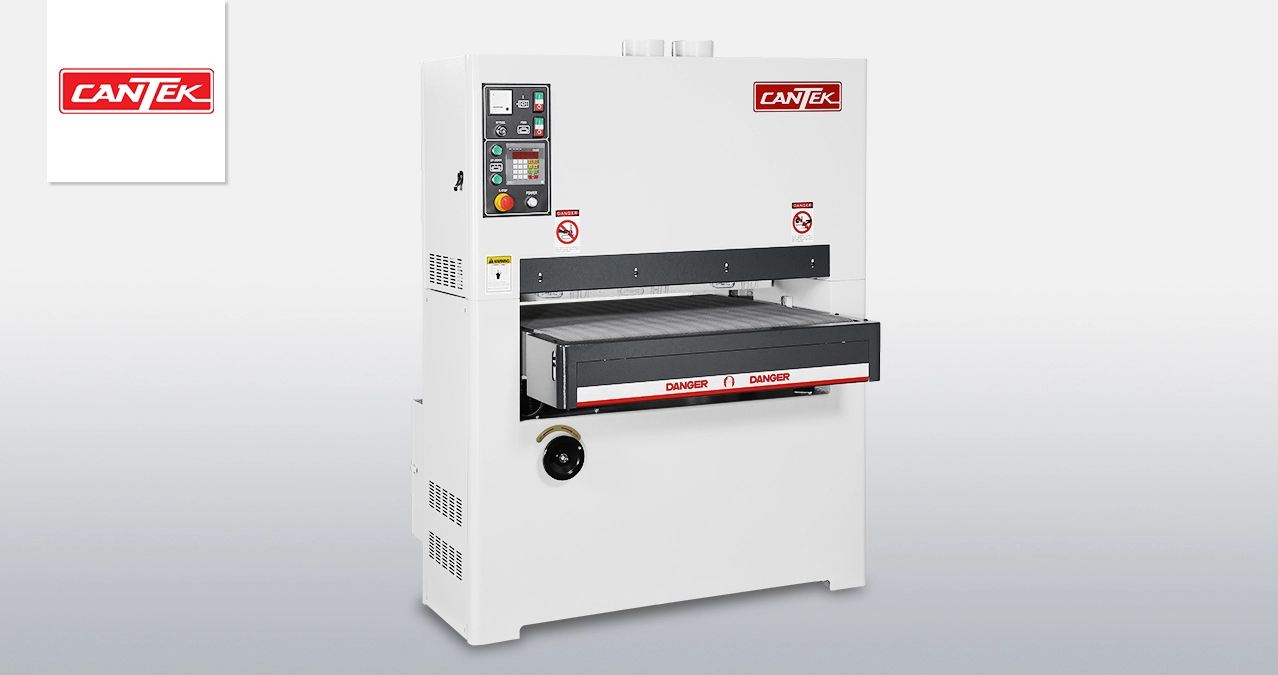

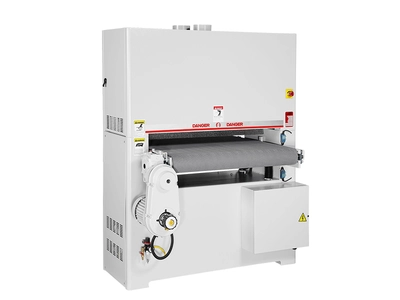

The Cantek S371 36″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Specifications
16HP 230V 3PH 47AMPS
Abrasive belt size37” x 60”
Main motor 15HP
Feed motor 1HP
Table rise/fall motor 0.25 HP
Working width 37″
Minimum part length 12.5″
Maximum thickness opening 5″
Feed speed: variable 15 to 49 FPM
Pass line height 37″
Dust outlet 3 @ 4”
Compressed air pressure PSI 60
Compressed air volume 7 CFM
Dust collection requirements 1236 CFM
Net weight 1609 lbs
Machine dimensions 50” X 52” X 66”
Shipping weight 1829lbs
Shipping dimensions 52” X 57” X 76”
Electrical requirements 230/3/60 = 47 amps
