| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 28" | 711.2 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R-8 | R-8 |
| Dimensions | 6' x 5' x 7' | 6' x 5' x 7' |
| Weight | 2500lbs | 2500lbs |

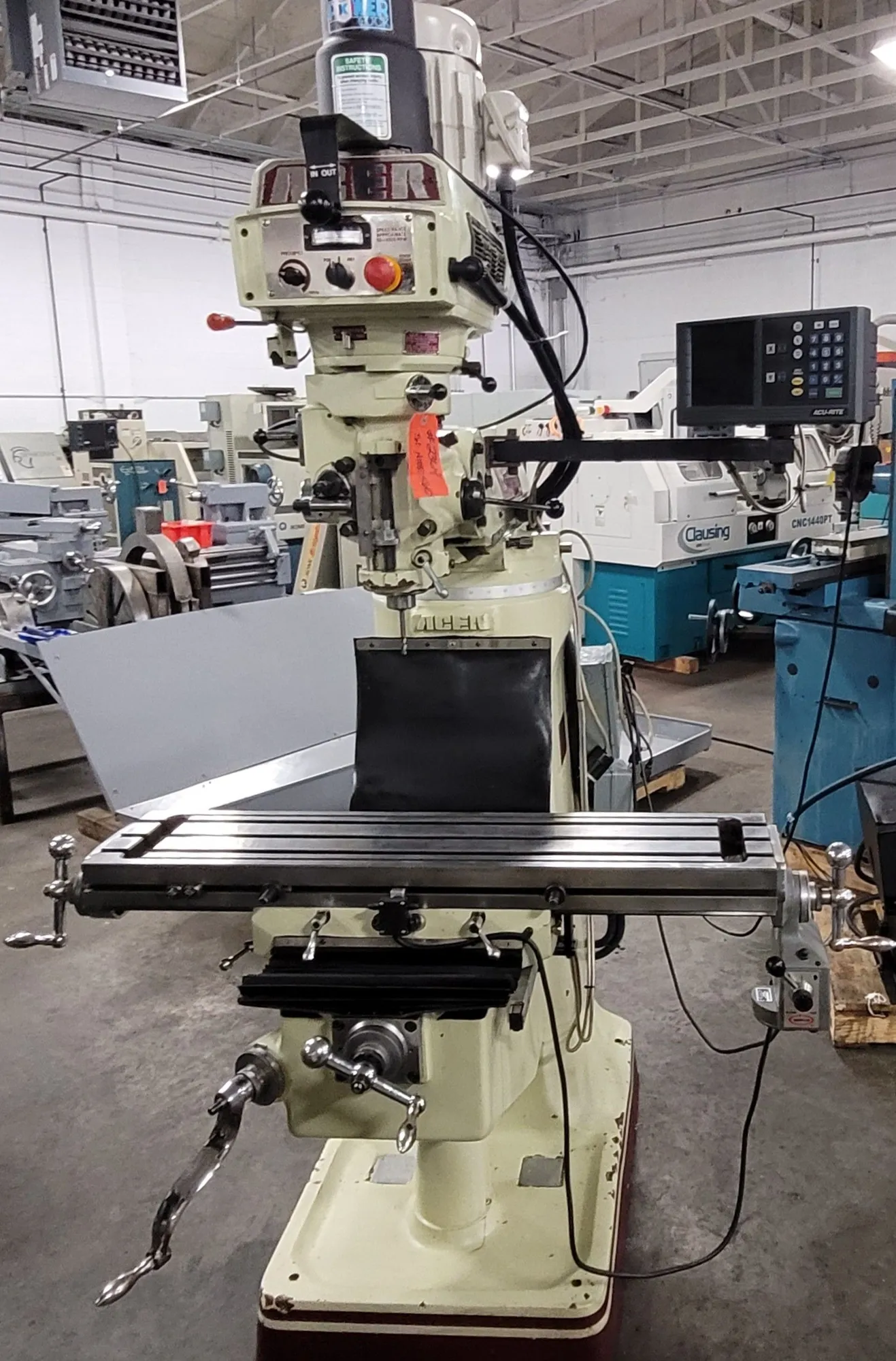

The 2001 Acer E-Mill 3VS is a 3 HP, 9" x 42" vertical milling machine featuring a 60–4,500 RPM variable-speed spindle, R-8 taper, and 5" quill travel.
It includes Meehanite casting, hardened/ground ways, and a 2-axis digital readout (DRO), designed for precision machining in 220V (3 phase).
AcuRite 2 Axis DRO
Servo X Axis Power Feed
Kurt Power Draw Bar
Key Specifications for 2001 Model 3VS:
Table Size: Standard 9" x 42"
Motor: 3 HP Baldor motor with inverter drive
Spindle Speed: 0 – 4,500 RPM (variable speed)
Spindle Taper: R-8
Quill Travel/Diameter: 5" travel / 3-3/8" diameter
Travels (X/Y/Z): Approx. 28"–34" Longitudinal, 12" Cross, 16" Knee
Weight: Approx. 2,500lbs
Standard Features:
Control: Variable frequency drive (VFD) for speed control
Ways: Hardened and ground dovetail ways (HRC 52°)
Lubrication: One-shot lubrication system
Construction: Meehanite casting for rigidity
