| Table Size-W | 5.33" | 135.38 mm |
| Table Size-W | 5.33" | 135.38 mm |
| Table Size-L | 53.93" | 1,369.8 mm |
| Table Size-L | 53.93" | 1,369.8 mm |
| Dimensions | 70.87 x 74.8 x 88.58 | 70.87 x 74.8 x 88.58 |
| Weight | 5390 | 5390 |
Specifications (subject to buyer verification):

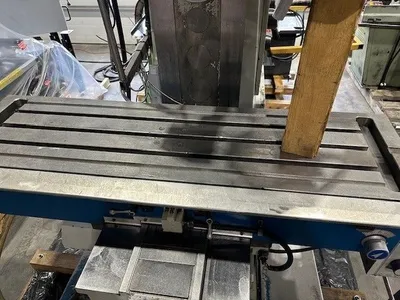

Table Size: 1370 x 360 mm
T-slots: 3 slots (14 mm width, 70 mm center distance)
Max Table Load: 400 kg
X-axis Travel (Longitudinal): 1000 mm (manual/auto)
Y-axis Travel (Cross): 320 mm (manual/auto)
Z-axis Travel (Vertical): 400 mm (manual/auto)
Spindle Taper: ISO40 (Vertical) / ISO50 (Horizontal)
Vertical Spindle Speed: 70 - 4660 rpm
Horizontal Spindle Speed: 60 - 1800 rpm (12 steps)
Swivel Angle of Headstock: 45°
Max End Milling Width: 100 mm
Max Vertical Milling Diameter: 25 mm
Max Drilling Diameter (Auto): 14 mm
Max Tapping Diameter: M16
X/Y Rapid Speed: 1080 mm/min
Z Rapid Traverse: 590 mm/min
Main Motor: 5.5 kW (Vertical) / 4 kW (Horizontal)
Feed Motor: 750 W / 1.1 kW (Z-axis)
Overall Dimension: 180 x 190 x 225 cm
Net/Gross Weight: 2450 kg
