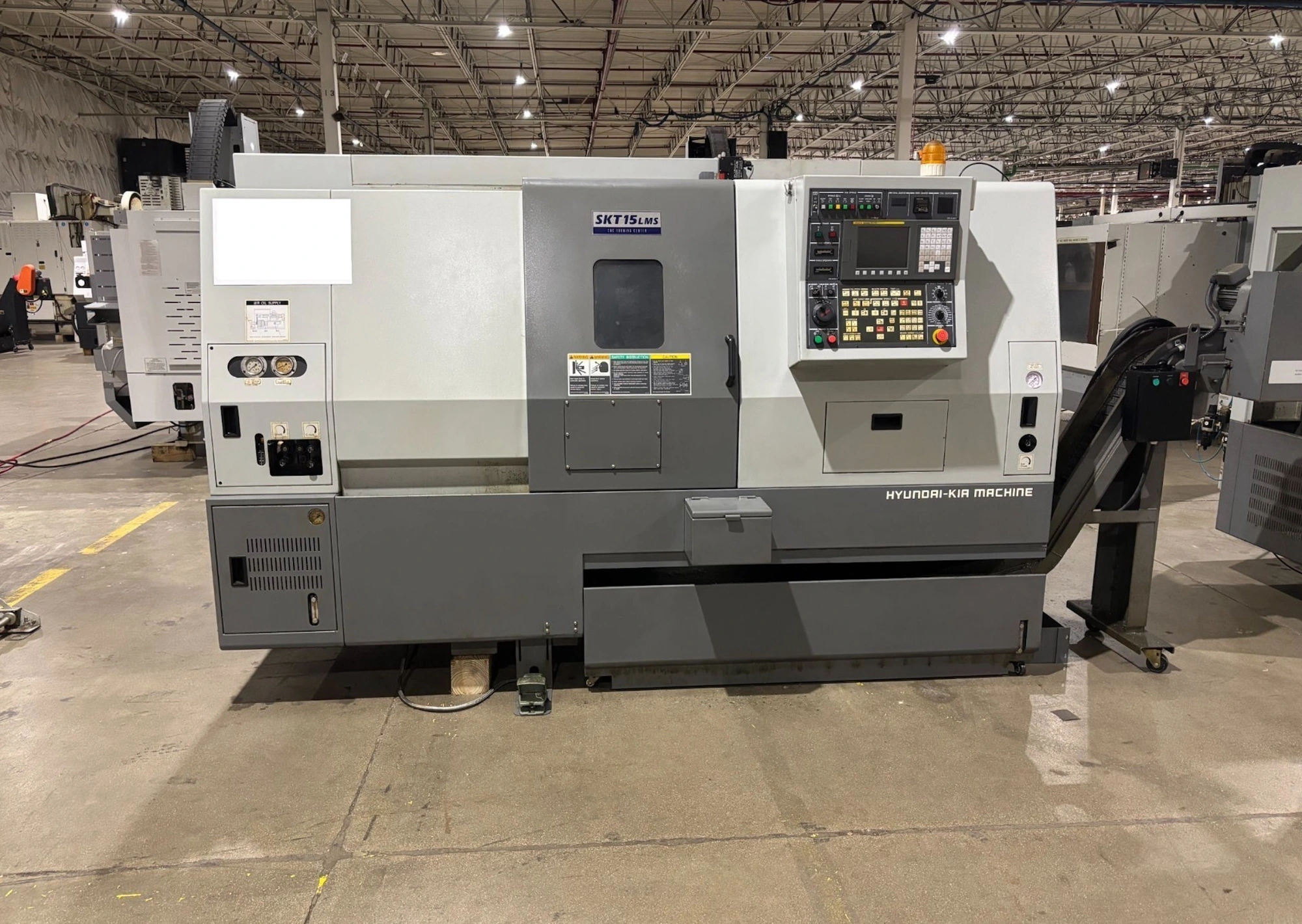

USED 2009 HYUNDAI KIA SKT 15 LMS
Overview
Description
Used CNC Lathe. Equipped with Fanuc Oi-TC Control, live tooling, sub-spindle, and various spindle liners.
Specifications
| Swing | 21.6" | 548.64 mm |
|---|---|---|
| Machining Length | 530 mm | 20.866" |
| # Axis | 4 | 4 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.7" | 43.18 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 10" | 254 mm |
| Tailstock | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Swing 21.6″
Turning Dia 10″
Center Distance 20.8″
Chuck Size 6″
Bar Capacity 1.7″
X-axis Travel 8.3″
Y-axis Travel 24.8″
Z-axis Travel 21.65″
C Axis Indexing Yes
B-axis Travel 29.5
Rapid Traverse Rate (X/Y/Z) 1417
Spindle Nose A2-5
Spindle Speed (rpm) 6,000 RPM
Spindle Motor (hp) 15 hp
Tailstock No
Live Tooling Yes
Live Tooling Speed (rpm) 4,000 RPM
Live Tooling Motor (hp) 5 hp
Sub Spindle Yes
Sub Spindle Speed (rpm) 5,000 RPM
Sub Spindle Motor (hp) 5 hp
Turret Capacity 12
Machine Weight 9,500 lb
Equipped With
Fanuc Oi-TC Control
Main Spindle Micro Centric CB42-ND Collet Chuck
Main Spindle C axis
Sub Spindle ATS Work Holding Collet Chuck
RS-232
Tool Eye
Live Tooling
Live Tooling Holders
Sub Spindle Parts Catcher
Chip Conveyor, coolant tank with pump
Various Diameter Spindle Liners
Machine Voltage: 208
Machine KVA: 30
