Used 2020 Doosan DVF-5000 5-Axis CNC Machining Center with Fanuc 31i control. Features include 42 HP, 18,000 RPM spindle, 90 tool changer, LNS chip conveyor, and Renishaw probing. X/Y/Z travel: 24.6"/17.7"/15.7". 400 kg max load capacity.
| X Axis | 24" | 609.6 mm |
| Y Axis | 17" | 431.8 mm |
| Z Axis | 15" | 381 mm |
| # Axis | 5 | 5 |
| Power | 42 hp | 31.3 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 90 | 90 |
| Taper | 40 | 40 |

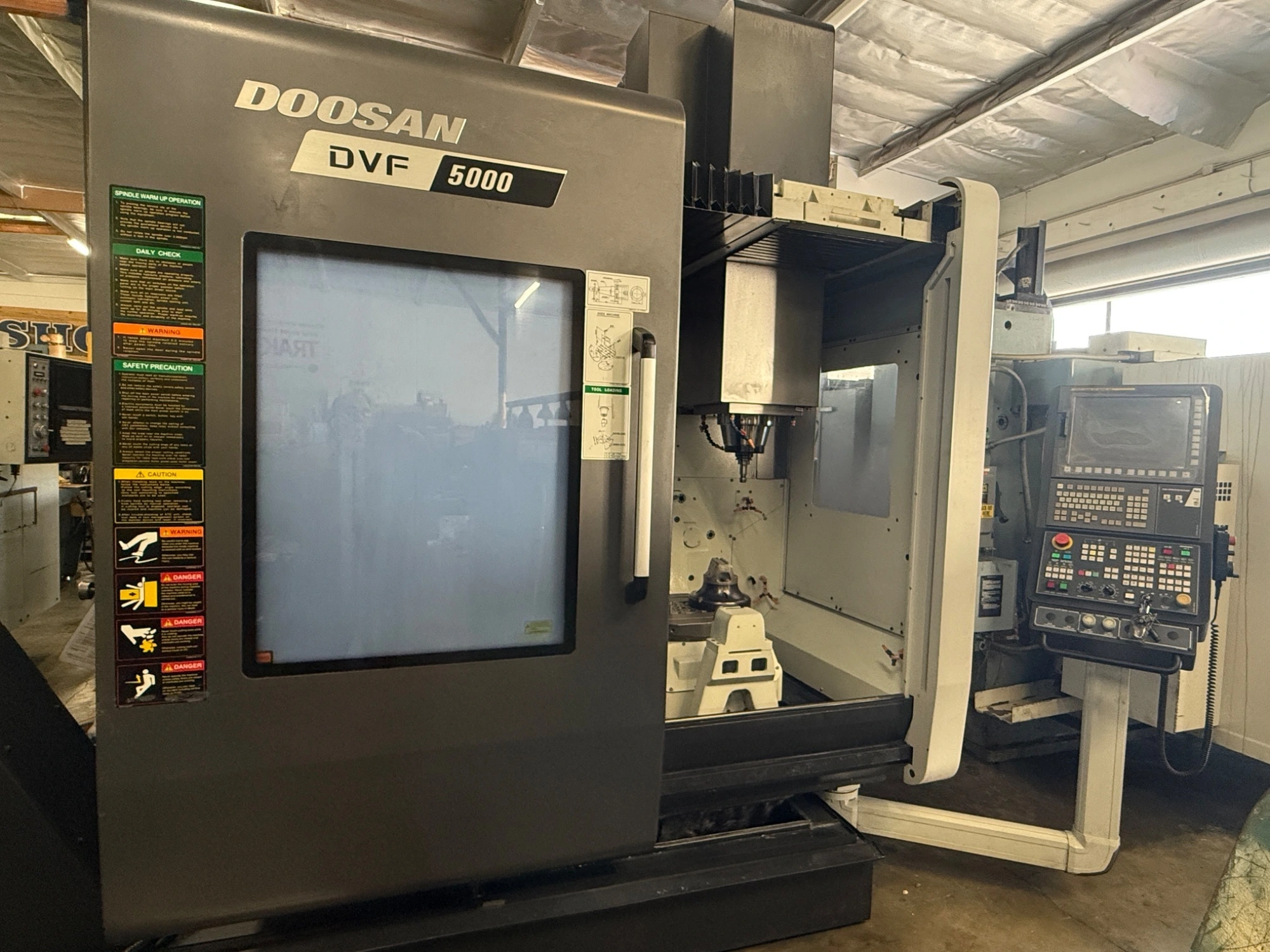

2020 DOOSAN DVF-5000 5-Axis Vertical Machining Center #8150 #2
SPECIFICATIONS:
X Axis Travel: 24.6"
Y Axis Travel: 17.7"
Z Axis Travel: 15.7"
Spindle Motor: 42 HP
Spindle Speed: 18,000 RPM
Spindle Taper: 40
Tool Changer: 90 ATC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Travel Distance B-axis: +110°, -30°
Travel Distance C-axis: 360°
Table Size: 500 mm (19.7 in.)
Max Part Diameter: 550 mm (21.7 in.)
Max Part Height: 450 mm (17.7 in.)
Max Load: 400 kg (882 lbs.)
Table Size: 19.7" x 19.7"
Weight: 16,534 LBS
EQUIPPED WITH:
5-Axis Articulating Head
Fanuc 31i Control
90 Tool Changer
Renishaw Probing
LNS Chip Conveyor
Spindle Chiller
