FES / GEA Industrial Ammonia Screw Compressor Package Natural Refrigerant R-717 2002

OVERVIEW

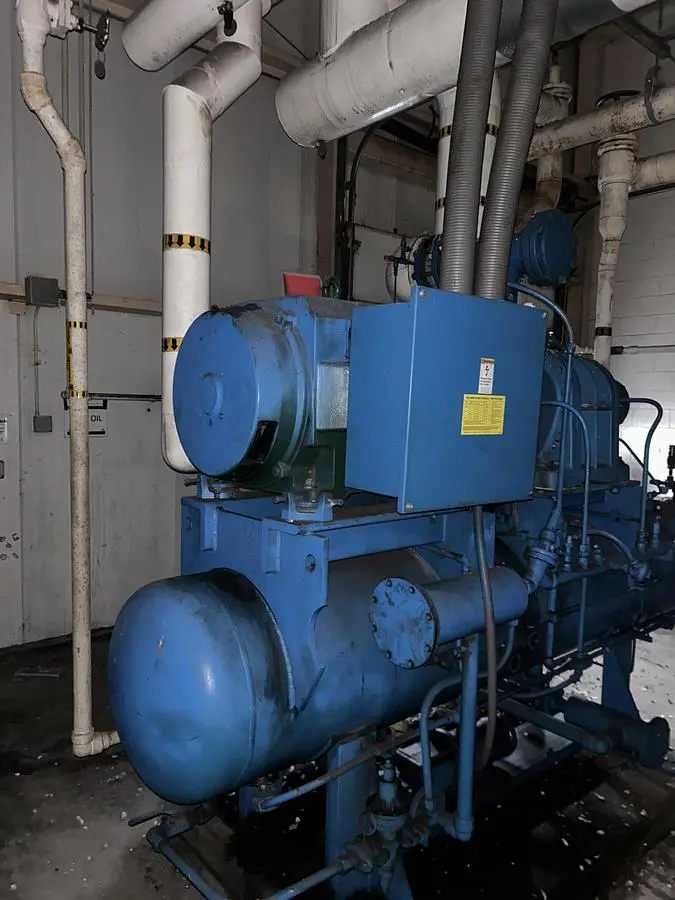

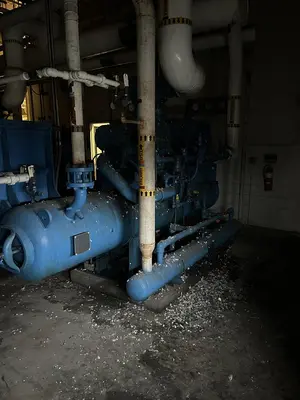

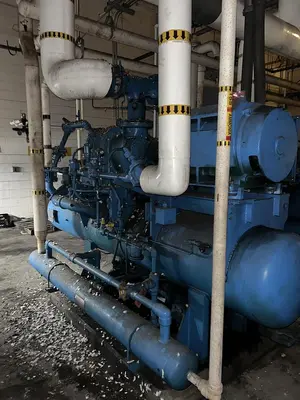

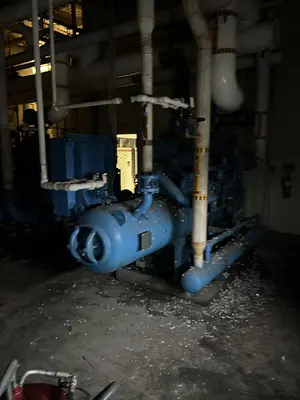

FES Systems / GEA Industrial Ammonia Refrigeration Screw Compressor Package — FES Serial Number 020449, National Board Number 12955, Year 2002. Heavy-duty industrial ammonia (R-717) screw compressor package certified by FES Systems Inc. with 300 PSI maximum allowable working pressure at 500°F and minimum design metal temperature of 20°F at 300 PSI. Complete skid-mounted package with integrated GEA microprocessor control panel, oil separator vessel, suction accumulator, Henry Technologies Chil-Con liquid separator vessel (Model TSCC-08084-100, Serial C211050B-3, NB# 13643, Year 2001), drive motor, and all associated piping, valves, and instrumentation.
Complete industrial ammonia refrigeration compressor package mounted on a heavy-duty structural steel skid with all pressure vessels, controls, and safety systems intact. Ammonia refrigerant (R-717) system with full integrated skid assembly. Heavy-duty industrial construction ideal for cold storage facilities, food processing plants, ice rinks, industrial refrigeration systems, pharmaceutical manufacturing, or any large-scale industrial application requiring proven ammonia refrigeration technology with GEA / FES screw compressor reliability.

Note: This is an ammonia (R-717) refrigeration system. Buyer is responsible for proper ammonia handling, evacuation, and compliance with all applicable federal, state, and local regulations regarding ammonia refrigerant systems.

EQUIPMENT SPECIFICATIONS

Compressor Package Identification:

Manufacturer: FES Systems Inc. (GEA Refrigeration)
Product Line: Industrial Ammonia Screw Compressor Package
Refrigerant: Ammonia (R-717)
FES Serial Number: 020449
National Board Number: 12955
Year: 2002
Control System: GEA Microprocessor Control Panel
Configuration: Skid-mounted package
ASME / National Board Certified: Yes


FES Systems Pressure Vessel (Oil Separator):

Certified By: FES Systems Inc.
National Board Number: 12955
FES Serial Number: 020449
Year: 2002
MAWP: 300 PSI at 500°F
MDMT: 20°F at 300 PSI

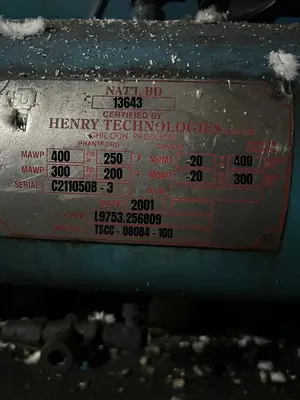

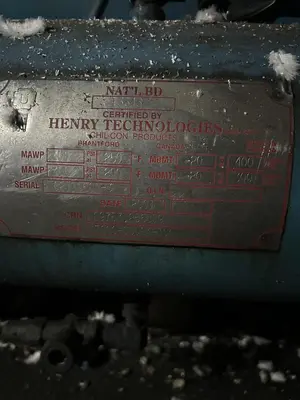

Henry Technologies Vessel (Liquid Separator):

Certified By: Henry Technologies, Chil-Con Products
Manufacturing Location: Brantford, Ontario, Canada
National Board Number: 13643
Model: TSCC-08084-100
Serial Number: C211050B-3
Date: 2001
CRN: L9753.256809
MAWP: 400 PSI at 250°F / 300 PSI at 200°F
MDMT: -20°F at 400 PSI / -20°F at 300 PSI


Refrigerant:

Refrigerant Type: Ammonia (R-717)
System Type: Industrial ammonia refrigeration
Compressor Type: Screw compressor

KEY FEATURES & BENEFITS

FES Systems / GEA Quality Manufacturing:

FES Systems Inc. — leading industrial ammonia compressor manufacturer
GEA Refrigeration product lineage (FES acquired by GEA)
2002 year of manufacture
Industrial ammonia screw compressor design
Heavy-duty commercial/industrial construction
Professional engineering and design
Proven reliability in demanding industrial refrigeration applications


Industrial Ammonia Screw Compressor Design:

Screw compressor technology for continuous-duty operation
Ammonia (R-717) natural refrigerant — zero GWP, zero ODP
High-efficiency ammonia refrigeration cycle
Large-scale industrial refrigeration capacity
Robust skid-mounted package design
Designed for 24/7 continuous industrial service
Long service life construction

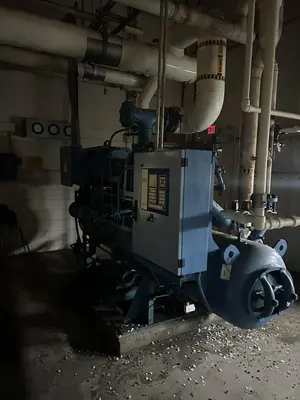

GEA Microprocessor Control System:

Integrated GEA microprocessor control panel
Keypad operator interface
Digital display and monitoring
Compressor capacity control
Operating parameter monitoring
Safety interlock integration
Professional industrial controls package


Complete Skid-Mounted Package:

Full compressor package on heavy-duty structural steel skid
All pressure vessels included on skid
Integrated oil separator vessel (FES, NB# 12955)
Henry Technologies liquid separator vessel included (NB# 13643)
Drive motor included
Oil system components included
All skid piping, valves, and instrumentation
Factory-assembled and integrated package


Ammonia (R-717) Natural Refrigerant:

Natural refrigerant — no phase-out concerns
Zero global warming potential (GWP)
Zero ozone depletion potential (ODP)
High thermodynamic efficiency
Industry standard for industrial refrigeration
Long-term refrigerant supply assured
No refrigerant replacement cost risk


ASME Certified Pressure Vessels:

FES Systems pressure vessel — ASME certified, NB# 12955
Henry Technologies vessel — ASME certified, NB# 13643
National Board registered vessels
300 PSI rated FES vessel
400 PSI rated Henry Technologies vessel
Professional pressure vessel construction
Code-compliant design and certification


Safety & Compliance:

ASME-certified pressure vessel construction
National Board registered vessels
300 PSI MAWP FES oil separator
400 PSI MAWP Henry Technologies vessel
Safety relief valve provisions
Ammonia safety compliance design
Professional industrial safety systems
Multiple safety interlocks

SYSTEM COMPONENTS

Main Compressor:

Industrial ammonia screw compressor
FES Systems / GEA design
Skid-mounted configuration
Drive motor included
Compressor capacity control system
Oil injection system
Suction and discharge connections
Complete compressor assembly


GEA Control Panel:

GEA microprocessor controller
Keypad operator interface
Digital display panel
Capacity control functions
Safety interlock integration
Operational monitoring
Professional industrial controls


FES Oil Separator Vessel:

Certified by FES Systems Inc.
National Board Number 12955
FES Serial Number 020449
Year 2002
MAWP 300 PSI at 500°F
MDMT 20°F at 300 PSI
ASME certified construction


Henry Technologies Liquid Separator Vessel:

Certified by Henry Technologies, Chil-Con Products
National Board Number 13643
Model TSCC-08084-100
Serial Number C211050B-3
Date 2001
CRN L9753.256809
MAWP 400 PSI at 250°F / 300 PSI at 200°F
MDMT -20°F at 400 and 300 PSI
Made in Canada


Oil System:

Oil separator vessel (FES, NB# 12955)
Oil return system
Oil level controls
Oil filter provisions
Oil injection to compressor
Oil management instrumentation


Suction System:

Suction accumulator / separator vessel
Suction header piping
Suction isolation valves
Suction pressure monitoring
Liquid carryover protection


Safety & Instrumentation:

Safety relief valves
Pressure gauges
High pressure safety cutouts
Low pressure safety cutouts
High temperature protection
Oil pressure safety
Ammonia leak provisions
Multiple safety interlocks


Structural Assembly:

Heavy-duty structural steel skid base
All vessels mounted to skid
Integrated skid piping and valves
Professional industrial assembly
Forklift pocket provisions
Ready for rigging and relocation

SPECIFICATIONS SUMMARY

Compressor Package:

Manufacturer: FES Systems Inc. / GEA Refrigeration
FES Serial Number: 020449
National Board Number: 12955
Year: 2002
Refrigerant: Ammonia (R-717)
Compressor Type: Screw compressor
Control System: GEA Microprocessor Panel
Configuration: Skid-mounted package
ASME Certified: Yes


FES Oil Separator Vessel:

NB#: 12955
FES S/N: 020449
Year: 2002
MAWP: 300 PSI at 500°F
MDMT: 20°F at 300 PSI


Henry Technologies Liquid Separator:

NB#: 13643
Model: TSCC-08084-100
Serial: C211050B-3
Date: 2001
CRN: L9753.256809
MAWP: 400 PSI at 250°F / 300 PSI at 200°F
MDMT: -20°F at both ratings
Origin: Canada

ADDITIONAL INFORMATION


Condition: Used — 2002 Manufacture, Previously Installed Industrial Refrigeration System

Manufacturer: FES Systems Inc. (GEA Refrigeration)

FES Serial Number: 020449

National Board Number: 12955

Year: 2002

Refrigerant: Ammonia (R-717)

Compressor Type: Industrial screw compressor


Safety Features:

ASME-certified pressure vessel construction
National Board registered vessels
Safety relief valve provisions
High and low pressure safety cutouts
High temperature protection
Oil pressure safety interlocks
Multiple operational safety interlocks
Ammonia-rated design and construction


Installation Notes:

Complete skid-mounted package — professional rigging required for removal
Ammonia refrigerant system — requires licensed ammonia contractor for decommissioning
Buyer responsible for ammonia evacuation and disposal per applicable regulations
All pressure vessels intact and included on skid
Professional rigging and crane service recommended
Site inspection welcome prior to purchase
Compressor HP and capacity data not available from nameplate — buyer to verify


Features:

FES Systems / GEA industrial ammonia screw compressor package
2002 year of manufacture
Ammonia (R-717) natural refrigerant — zero GWP, zero ODP
Industrial screw compressor design for continuous-duty operation
GEA microprocessor control panel with keypad interface
ASME-certified FES oil separator vessel — NB# 12955, 300 PSI MAWP
Henry Technologies Chil-Con liquid separator — NB# 13643, 400 PSI MAWP
Henry Technologies Model TSCC-08084-100, Serial C211050B-3, CRN L9753.256809
Complete skid-mounted package — all vessels, motor, controls included
Heavy-duty structural steel skid base
Oil separator and return system included
Suction accumulator / liquid separator included
All skid piping, valves, and instrumentation included
Safety relief valve provisions
High and low pressure safety cutouts
Proven FES Systems / GEA industrial refrigeration reliability
Ideal for cold storage, food processing, ice rinks, industrial refrigeration
Previously installed industrial refrigeration system
Professional rigging required for removal
Ammonia contractor required for decommissioning

* Refrigerant: Ammonia (R-717)
* FES Serial Number: 020449
* National Board Number: 12955
* Year: 2002
