USED KITAMURA HX-400
Overview

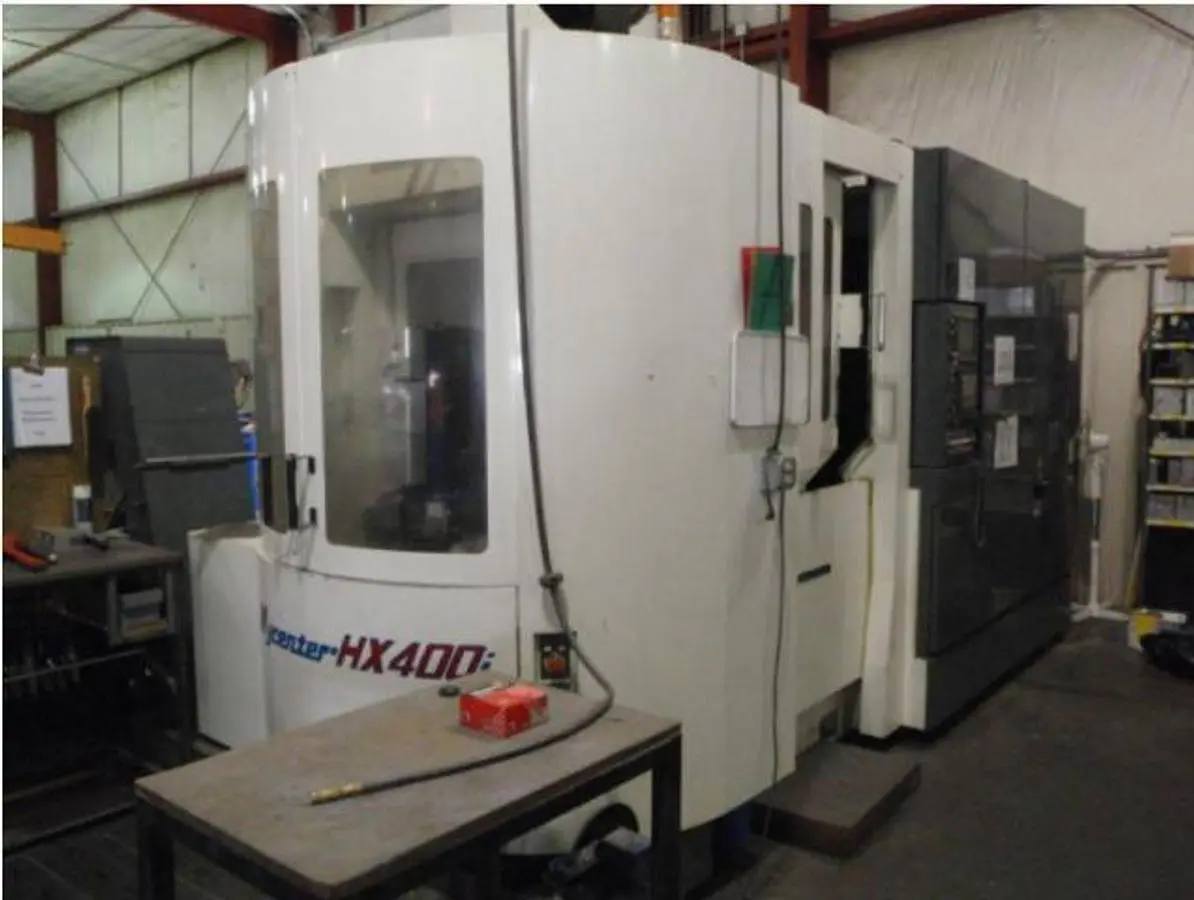

The Kitamura Mycenter HX400 is a high-speed horizontal machining center designed for precision production and efficient multi-face machining. Equipped with a 400 × 400 mm pallet, 13,000 RPM BT40 spindle, and 40-tool automatic tool changer, this machine delivers excellent accuracy and productivity. With travels of 560 mm (X), 610 mm (Y), and 610 mm (Z), along with rapid traverse rates of 60 m/min, the HX400 is ideal for aerospace, automotive, and precision component manufacturing. Includes coolant system, chip conveyor, and Fanuc Series 16i-M CNC control.
Specs
Pallet Size (MM): 400 x 400
Maximum Pallet Load (KG): 400
X-Axis Travel (MM): 560
Y-Axis Travel (MM): 610
Z-Axis Travel (MM): 610
Spindle Speed:: 13,000 RPM
Spindle Taper: BT-40
Maximum Tool Diameter (MM): 95
Maximum Tool Weight (KG): 10
Tool Changer Capacity: 40 ATC
Rapid Traverse Rate (m/min): 60
Equipped With

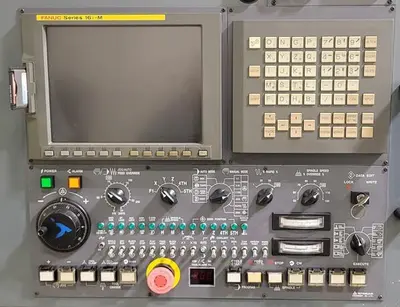

Fanuc Series 16i-M CNC Control
400mm Pallet System
Automatic Tool Changer
Coolant System
Chip Conveyor
