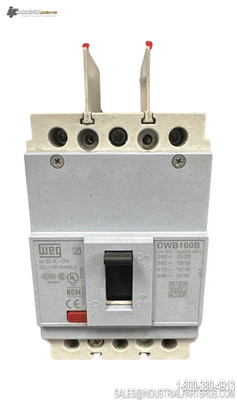

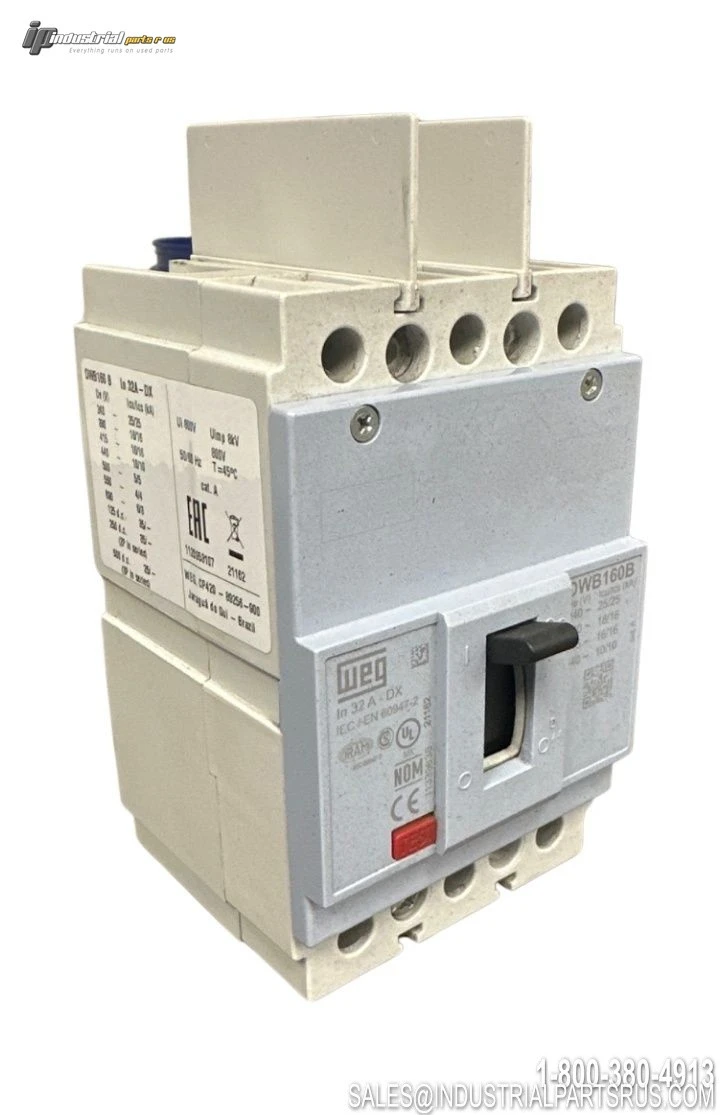

The WEG DWB160B is a molded case circuit breaker from the DWB series designed for protection of motors, generators, electrical circuits and transformers. These circuit breakers feature short-circuit interrupting capacity up to 80kA (380/415V), and a variety of functionalities. The frame size 160 designation indicates the physical mounting dimensions and maximum current capacity range.
Specification
Value
Brand
WEG
Model/Part Number
DWB160B
Product Type
Molded Case Circuit Breaker
Series
DWB
Frame Size
160
Maximum Operating Voltage
690V
Short Circuit Interrupting Capacity
Up to 80kA at 380/415V
Standard Compliance
IEC 60947-2
Application
Motors, generators, electrical circuits, transformers
Current Rating Range
See specific model suffix
Available Pole Configurations
3-pole, 4-pole
Trip Unit Options
DX (Fixed thermal/magnetic), DF (Adjustable thermal/magnetic)
We warranty all items for 30 days from date of purchase.
| Weight | 15.00 LBS | 15.00 LBS |
SKU: AI0544
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 15.00 LBS
Width: 12.00
(in)
Height: 10.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Panel Mount
Current Rating: 160A
Manufacturer: WEG
Part Number: DWB160B
Shelf: J-6
Model: DWB160B
MPN: DWB160B
Voltage: 690V
Type: Circuit Breaker
