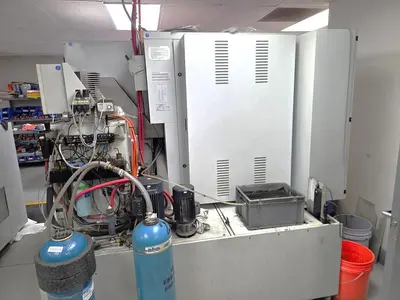

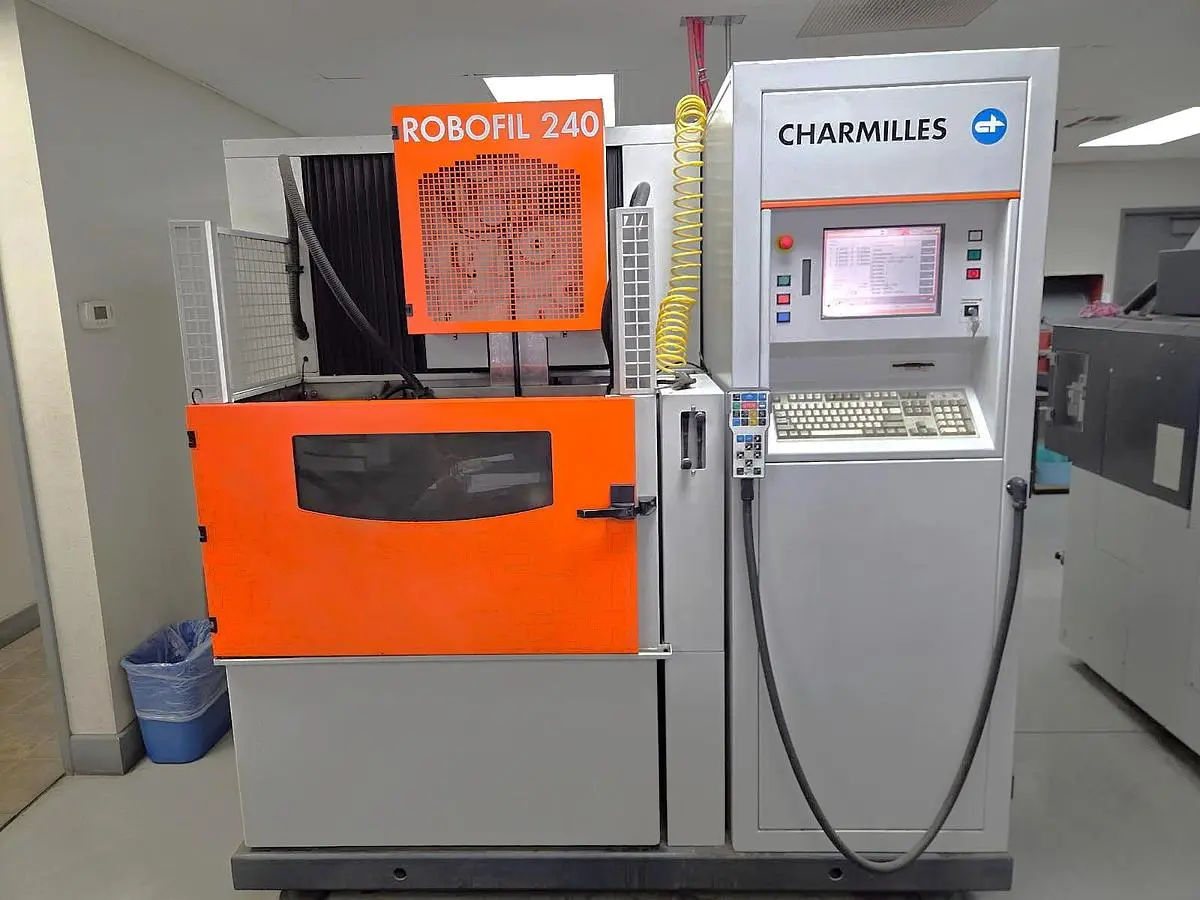

USED 2002 CHARMILLES ROBOFIL 240

Submerged Cutting
Auto Wire Threading (Needs Repair)
Remote Jog Handle
.010" Diameter Wire Guides
Wired 400V Three Phase Power
17,000 Hours

**Well Maintained Machine from Tool Room Environment**

The 2002 Charmilles Robofil 240 is a used CNC Wire EDM machine known for its precision in creating complex geometries and fine finishes. It features a table size of 26.77" x 17.72" and is capable of handling workpieces up to 39.4" x 21.65" x 8.66", with a maximum weight capacity of 1,653 lbs. The machine provides X, Y, and Z axis travels of 13.76", 8.66", and 8.66", respectively, along with U and V axis travels of 13.76" and 8.66". This model allows for wire diameter use ranging from .004" to .012" and efficiently manages taper angles of +/- 30 degrees at a height of 8.66".

Designed for robust performance, the Robofil 240 features a significant dielectric capacity of 200 gallons, ensuring prolonged and effective operations. Despite its substantial capabilities, the machine maintains a manageable footprint with dimensions of 79.5" x 81" x 79" and a total weight of 5,402 lbs., making it a compact solution for precision machining needs in industrial environments. This model is suited for applications that demand high-quality finishes and intricate details, making it a valuable asset for manufacturers seeking both reliability and efficiency in wire EDM processes.

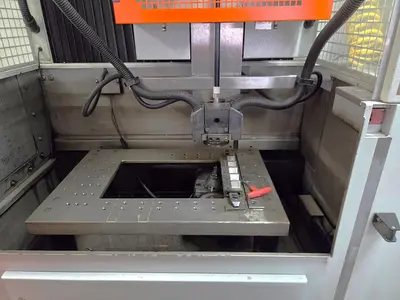

Table size: 26.77" x 17.72"
Max workpiece size: 39.4" x 21.65" x 8.66"
Max workpeice weight: 1,653 lbs.
X axis travel: 13.76"
Y axis travel: 8.66"
Z axis travel: 8.66"
U-Axis Travel: 13.76"
V-Axis Travel: 8.66"
Wire Diameter: .004" - .012"
Taper Angle / Height: +/- 30 Degrees / 8.66"
Dielectric Capacity: 200 Gallons
Machine Dimensions W x D x H: 79.5" x 81" x 79"
Machine Weight: 5,402 lbs.
